LED Strip Connector Hippo with Cable 24V RGB+CCT 6-Pin 10mm

LED-00881

Certificates CE, CMIM, RoHS
Construction Material PC
Dimensions (mm) 10 mm

New product

The LED Strip Connector Hippo with Cable is made for 10mm 24V RGB+CCT SMD LED strips, providing a convenient solder-free connection. Its transparent PC body ensures correct wire placement and stable signal transmission. Featuring IP20 protection, it is intended for indoor use and includes a cable for quick installation.

42 Items

Order now and receive it The day after tomorrow

3,00 € tax incl.

Métodos de pago

More info

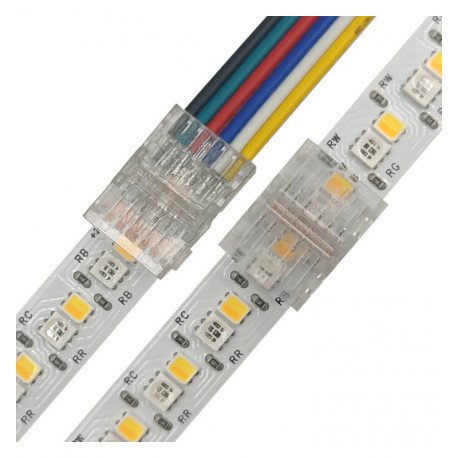

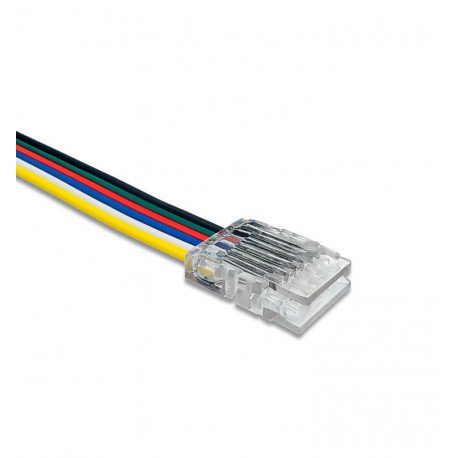

Hippo connector with cable for 10mm 24V RGB+CCT SMD LED strips. Designed for a solder-free installation: open the connector, insert the LED strip into its slot, then press the clips to lock it in place. The transparent design makes it easy to check that the wires are correctly positioned, helping maintain stable and efficient signal transmission. Includes cable for a practical, quick connection. Compatible with reference SP216D-RGBCCT-91353. IP20 design for indoor use.

Material and Design

Constructed from durable polycarbonate (PC), the connector offers a robust housing for reliable usage in indoor environments. Its transparent design not only aids installation but also assists in troubleshooting wire alignment without disassembling the connector.

Compatibility and Functionality

Specifically compatible with LED strips of 10mm width and 24V RGB+CCT configuration, this connector ensures proper connection with reference SP216D-RGBCCT-91353. The 6-pin configuration facilitates the transmission of multiple color and temperature signals simultaneously, maintaining the quality of lighting control.

Installation and Application

Its user-friendly solder-free mechanism allows quick and secure connection by opening the connector, inserting the LED strip, and locking it with clips. Including an attached cable enhances practical deployment, enabling flexible positioning of LED strips within indoor projects.

Frequently Asked Questions

Is this connector suitable for outdoor use?

No, the connector has an IP20 rating, which means it is designed for indoor use only and does not provide protection against water or dust typically encountered outdoors.

Can this connector be used with LED strips other than 10mm 24V RGB+CCT types?

This connector is specifically designed for 10mm wide 24V RGB+CCT LED strips with a 6-pin configuration. Using it with incompatible strips may result in poor connection or malfunction.

Does the connector require soldering during installation?

No, the Hippo connector is designed for solder-free installation, simplifying the process and ensuring a firm connection through its clip mechanism.

View technical specifications Hide technical specifications
Certificates CE, CMIM, RoHS
IP Rating IP20
Construction Material PC
Warranty years 3
Dimensions (mm) 10 mm
Additional Information Current intensity: 5A
Units per Masterbox 100

LED strips and flexible neon for linear and decorative lighting

LED strips and flexible neon make it possible to create continuous lines of light, illuminate furniture and highlight architectural features with a discreet and adaptable installation. They are used in homes, shops, restaurants, hotels, window displays, offices, terraces, signs and decorative projects.

At DomiLED you will find solutions with different power ratings, operating voltages, colour temperatures, brightness levels and IP protection ratings. Before choosing a product, define the required effect, installation length, mounting location and whether you need white, dimmable or colour-changing light.

Differences between LED strips and flexible neon

LED strip lights contain small diodes mounted on a flexible circuit. They are suitable for installation under cabinets, on shelves, around ceilings, inside display cases, along stairs, in aluminium profiles and in areas where the light source can remain concealed.

Flexible LED neon uses a diffusing cover that hides the individual LED points and produces a more uniform line of light. It is suitable for outlines, shapes, signs, façades, decorative walls and applications where the illuminated line remains visible.

How to choose an LED strip

Power consumption per metre and luminous output determine how much electricity the strip uses and how much light it produces. A moderate output may be sufficient for ambient lighting, while worktops, shop displays and working areas usually require a brighter strip.

The operating voltage must also be checked. Low-voltage LED strips require a correctly sized compatible power supply. Calculate the required power according to the consumption per metre and total installation length, including a safety margin so the power supply does not continuously operate at its maximum capacity.

Warm, neutral, cool white, RGB and RGBW

Warm white strips create a comfortable atmosphere in living rooms, bedrooms, restaurants and hotels. Neutral white provides balanced illumination for kitchens, shops and working areas, while cool white creates a brighter and more technical appearance.

RGB LED strips allow different colours to be selected through a controller. RGBW strips also include a dedicated white-light channel, providing more practical white illumination in addition to coloured effects. A compatible controller is required to adjust brightness or change colours.

Installation, cutting and IP protection

LED strips and flexible neon should only be cut at the points indicated by the manufacturer. Before installation, check the length of each section, connection type and required power supply. Long runs may need to be powered from more than one point to prevent a visible loss of brightness.

An aluminium profile for LED strips improves the finish, helps dissipate heat and protects the installation. For bathrooms, terraces, façades and areas exposed to moisture, choose a suitable IP rating and ensure that all connections and ends are properly sealed.

Explore our selection of LED strip lights, flexible LED neon, power supplies, controllers and accessories and find a complete solution for efficient linear and decorative lighting.
