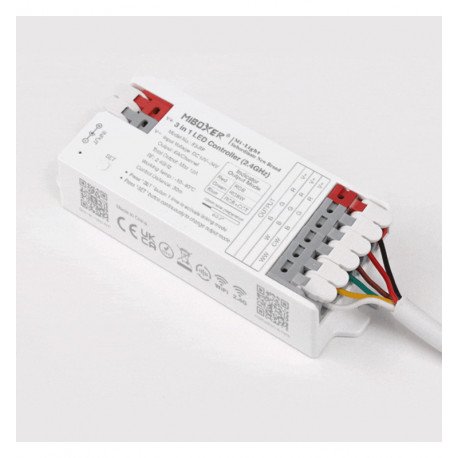

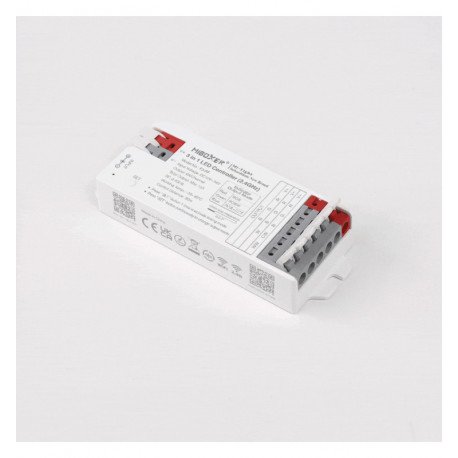

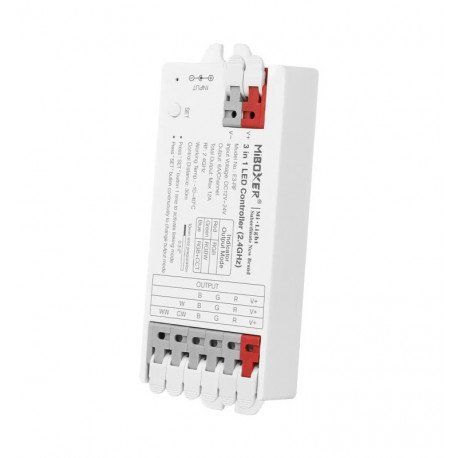

LED Controller 3-in-1 RGB/RGBW/RGBCCT RF 2.4 GHz

LED-00696

Certificates CE - ROHS
Dimmable Yes

New product

The LED Controller 3-in-1 RGB/RGBW/RGBCCT RF 2.4 GHz enables versatile control of LED lighting with easy installation and compatibility with Mi-Light/MiBoxer remotes. It supports managing brightness and color temperature to customize lighting scenes within a 30-meter range.

179 Items

Order now and receive it The day after tomorrow

26,09 € tax incl.

Métodos de pago

More info

The 3-in-1 RGB + RGBW + RGBCCT RF 2.4 GHz LED controller lets you manage LED lighting in a practical way. Installation is quick and tool-free, and it is compatible with Mi-Light/MiBoxer remote controls for reliable operation up to 30 meters. Adjust brightness and, depending on the mode, the color temperature—so you can create custom lighting scenes with the touch of a button.

Compatibility and Operation

This controller is designed for seamless integration with Mi-Light and MiBoxer 2.4 GHz RF remote controls, ensuring reliable wireless communication within a distance of up to 30 meters.

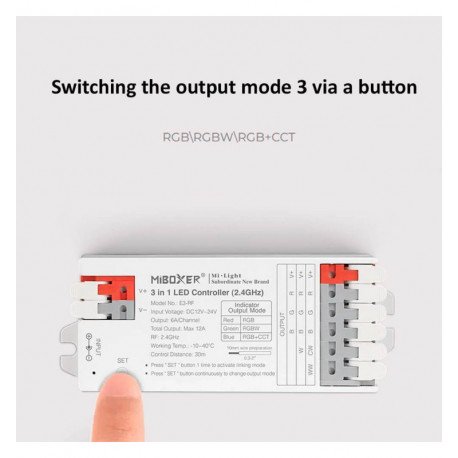

Its practical design allows users to adjust settings such as brightness and color temperatures in different modes, catering to RGB, RGBW, and RGBCCT LED strips.

Installation and Usage

Installation requires no tools, making the setup process straightforward and user-friendly, ideal for quick upgrades or additions to existing LED lighting systems.

Operating temperature ranges from -10°C to 40°C, suitable for typical indoor environments, supporting stability and consistent performance.

Frequently Asked Questions

Can this controller handle different types of LED strips?

Yes, it supports RGB, RGBW, and RGBCCT LED strips, allowing versatile lighting control within a single device.

What is the maximum range for remote control communication?

The controller operates reliably with compatible RF remotes up to a distance of 30 meters.

Is professional installation required?

No, the controller is designed for tool-free installation, making it easy to set up without special equipment.

View technical specifications Hide technical specifications
Certificates CE - ROHS
Rated Voltage DC 12 -24V
Operating Frequency (Hz) 2.4GHz
Temperature Range (ºC) -10ºC ~ +40ºC
Light Temperature RGB+CCT
Range (m) 30m
Dimmable Yes

LED strips and flexible neon for linear and decorative lighting

LED strips and flexible neon make it possible to create continuous lines of light, illuminate furniture and highlight architectural features with a discreet and adaptable installation. They are used in homes, shops, restaurants, hotels, window displays, offices, terraces, signs and decorative projects.

At DomiLED you will find solutions with different power ratings, operating voltages, colour temperatures, brightness levels and IP protection ratings. Before choosing a product, define the required effect, installation length, mounting location and whether you need white, dimmable or colour-changing light.

Differences between LED strips and flexible neon

LED strip lights contain small diodes mounted on a flexible circuit. They are suitable for installation under cabinets, on shelves, around ceilings, inside display cases, along stairs, in aluminium profiles and in areas where the light source can remain concealed.

Flexible LED neon uses a diffusing cover that hides the individual LED points and produces a more uniform line of light. It is suitable for outlines, shapes, signs, façades, decorative walls and applications where the illuminated line remains visible.

How to choose an LED strip

Power consumption per metre and luminous output determine how much electricity the strip uses and how much light it produces. A moderate output may be sufficient for ambient lighting, while worktops, shop displays and working areas usually require a brighter strip.

The operating voltage must also be checked. Low-voltage LED strips require a correctly sized compatible power supply. Calculate the required power according to the consumption per metre and total installation length, including a safety margin so the power supply does not continuously operate at its maximum capacity.

Warm, neutral, cool white, RGB and RGBW

Warm white strips create a comfortable atmosphere in living rooms, bedrooms, restaurants and hotels. Neutral white provides balanced illumination for kitchens, shops and working areas, while cool white creates a brighter and more technical appearance.

RGB LED strips allow different colours to be selected through a controller. RGBW strips also include a dedicated white-light channel, providing more practical white illumination in addition to coloured effects. A compatible controller is required to adjust brightness or change colours.

Installation, cutting and IP protection

LED strips and flexible neon should only be cut at the points indicated by the manufacturer. Before installation, check the length of each section, connection type and required power supply. Long runs may need to be powered from more than one point to prevent a visible loss of brightness.

An aluminium profile for LED strips improves the finish, helps dissipate heat and protects the installation. For bathrooms, terraces, façades and areas exposed to moisture, choose a suitable IP rating and ensure that all connections and ends are properly sealed.

Explore our selection of LED strip lights, flexible LED neon, power supplies, controllers and accessories and find a complete solution for efficient linear and decorative lighting.
