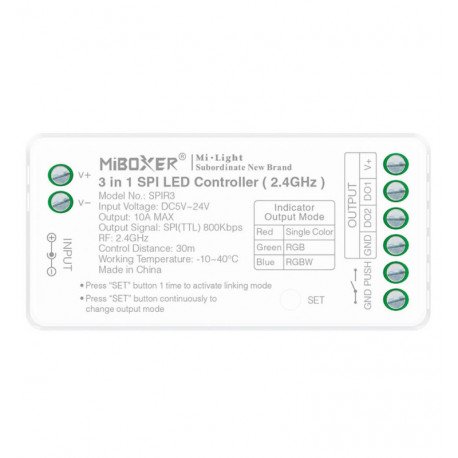

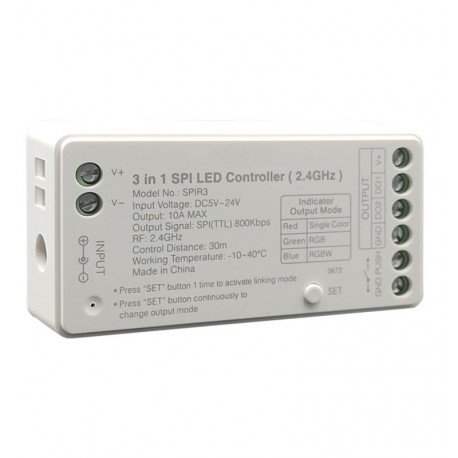

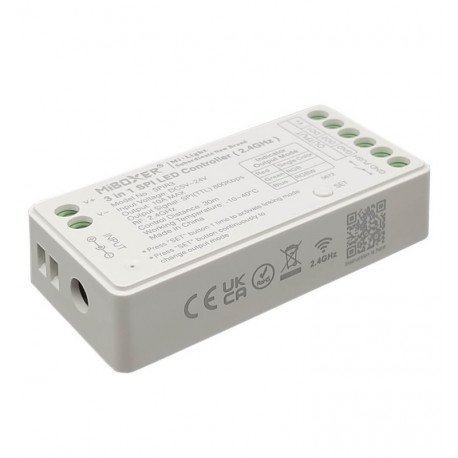

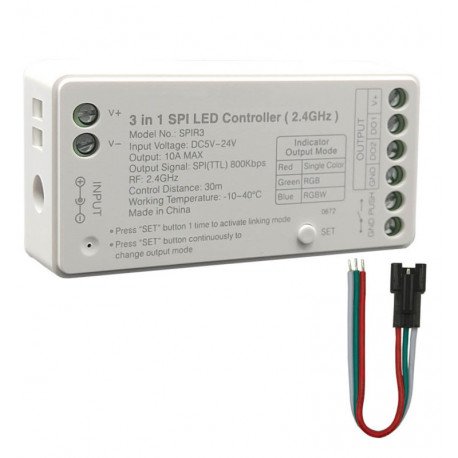

LED Digital SPI Controller 2.4GHz 5-24V RGB/RGBW/RGBIC
LED-00689
Dimensions (mm)
74.5 x 36 x H17mm
New product
Advanced LED Digital SPI Controller operating at 2.4GHz for 5-24V RGB, RGBW, and RGBIC LED strips, featuring precise individual LED control, wireless remote operation, and customizable lighting scenes.
240 Items
More info
LED Digital SPI controller for RGB + RGBW + RGBIC LED strips — 2.4GHz — 5-24V. Designed for digital LED strips, it lets you precisely control each LED on the strip. With SPI signal transmission for a stable connection, it includes a 2.4G wireless remote and adjustment options such as speed, brightness and direction, plus dynamic modes. It also allows you to save up to 4 custom scenes to create the atmosphere you want.
Technical Features and Compatibility
This controller supports a voltage range of 5 to 24 volts, making it compatible with a wide variety of digital LED strips, including RGB, RGBW, and RGBIC types. It utilizes SPI (Serial Peripheral Interface) technology to transmit signals, ensuring a stable and reliable connection between the controller and LED strip.
Control and Customization
The device allows users to finely adjust settings such as speed, brightness, and lighting direction, thereby supporting versatile dynamic lighting effects. It can store up to 4 custom scenes, enabling quick access to personalized lighting atmospheres without repeated setup. The inclusion of a 2.4GHz wireless remote facilitates convenient control from a distance without the need for direct cable connections.
Frequently Asked Questions
What types of LED strips are compatible with this controller?
The controller is compatible with digital LED strips including RGB, RGBW, and RGBIC types operating within a voltage range of 5 to 24 volts.
How many custom scenes can be saved in the controller?
You can save up to 4 custom lighting scenes for quick recall of your preferred settings.
Does the controller require any special wiring due to the SPI interface?

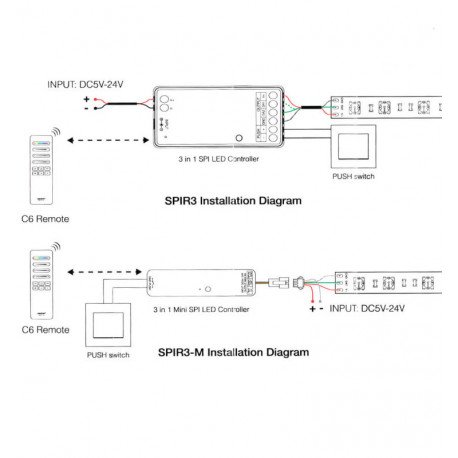

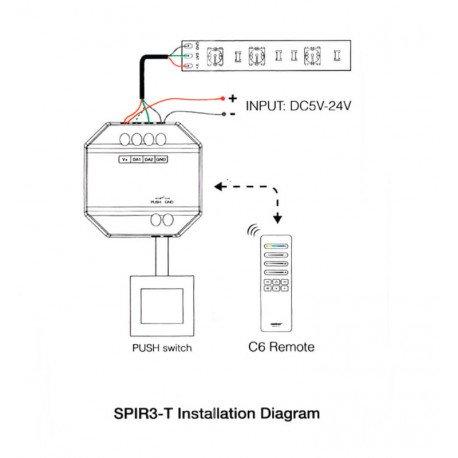

The SPI interface facilitates stable signal transmission, but installation requires compatible wiring compatible with SPI protocol; refer to the LED strip and controller manuals for correct connection procedures.
View technical specifications Hide technical specifications
Dimensions (mm)
74.5 x 36 x H17mm
Rated Voltage
DC 5V - 24V
Operating Frequency (Hz)
2.4GHz
Temperature Range (ºC)
-10ºC - 40ºC
Light Temperature
RGB+WW
Range (m)
30m
LED strips and flexible neon for linear and decorative lighting
LED strips and flexible neon make it possible to create continuous lines of light, illuminate furniture and highlight architectural features with a discreet and adaptable installation. They are used in homes, shops, restaurants, hotels, window displays, offices, terraces, signs and decorative projects.
At DomiLED you will find solutions with different power ratings, operating voltages, colour temperatures, brightness levels and IP protection ratings. Before choosing a product, define the required effect, installation length, mounting location and whether you need white, dimmable or colour-changing light.
Differences between LED strips and flexible neon
LED strip lights contain small diodes mounted on a flexible circuit. They are suitable for installation under cabinets, on shelves, around ceilings, inside display cases, along stairs, in aluminium profiles and in areas where the light source can remain concealed.
Flexible LED neon uses a diffusing cover that hides the individual LED points and produces a more uniform line of light. It is suitable for outlines, shapes, signs, façades, decorative walls and applications where the illuminated line remains visible.
How to choose an LED strip
Power consumption per metre and luminous output determine how much electricity the strip uses and how much light it produces. A moderate output may be sufficient for ambient lighting, while worktops, shop displays and working areas usually require a brighter strip.
The operating voltage must also be checked. Low-voltage LED strips require a correctly sized compatible power supply. Calculate the required power according to the consumption per metre and total installation length, including a safety margin so the power supply does not continuously operate at its maximum capacity.
Warm, neutral, cool white, RGB and RGBW
Warm white strips create a comfortable atmosphere in living rooms, bedrooms, restaurants and hotels. Neutral white provides balanced illumination for kitchens, shops and working areas, while cool white creates a brighter and more technical appearance.
RGB LED strips allow different colours to be selected through a controller. RGBW strips also include a dedicated white-light channel, providing more practical white illumination in addition to coloured effects. A compatible controller is required to adjust brightness or change colours.
Installation, cutting and IP protection
LED strips and flexible neon should only be cut at the points indicated by the manufacturer. Before installation, check the length of each section, connection type and required power supply. Long runs may need to be powered from more than one point to prevent a visible loss of brightness.
An aluminium profile for LED strips improves the finish, helps dissipate heat and protects the installation. For bathrooms, terraces, façades and areas exposed to moisture, choose a suitable IP rating and ensure that all connections and ends are properly sealed.
Explore our selection of LED strip lights, flexible LED neon, power supplies, controllers and accessories and find a complete solution for efficient linear and decorative lighting.
