LED Rectifier Cable 12mm for 8W LED Strip 230V

LED-00617

Certificates CE - ROHS
Construction Material Thermoplastic
Dimensions (mm) L700mm
Rated Power Max.400W

New product

This 12mm LED rectifier cable is designed for 8W single-color 230V LED strips, supporting up to 400W load. Featuring IP65-rated thermoplastic construction, it operates safely between -20°C and 55°C and endures up to 100000 switching cycles, offering a reliable mains connection without a transformer.

341 Items

Order now and receive it The day after tomorrow

4,74 € tax incl.

Métodos de pago

More info

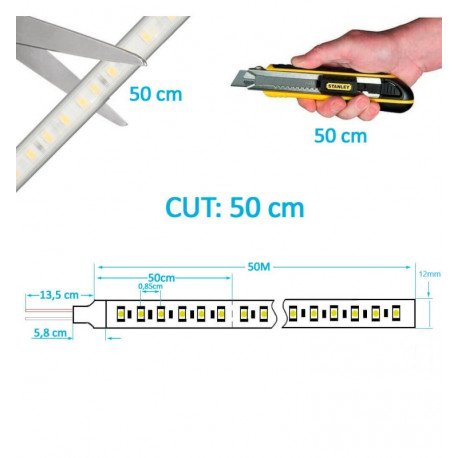

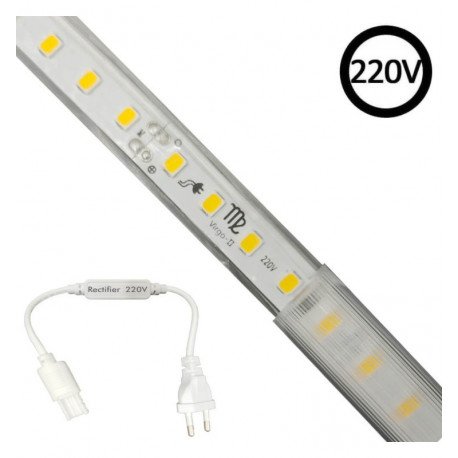

Rectifier power cable for single-color LED strip 220–240V (230V), compatible with reference SPSMD120D8W. Lets you connect the strip directly to the mains without needing a transformer, helping ensure a constant, suitable power supply for operation. IMPORTANT: If the LED strip SPSMD120D8W is cut into sections, you need one rectifier cable per cut section. Cable length is approximately 38 cm. Each rectifier cable supports a maximum of 400W of 230V LED strip. At DomiLED we guarantee product quality and provide the technical sheet and the necessary items for distribution, import, or wholesale sales.

Durability and Environmental Resistance

Constructed from robust thermoplastic material and rated IP65, this rectifier cable is well-suited for exterior installations, providing protection against dust and water jets. Its operating temperature range from -20°C to 55°C ensures consistent performance in varied climates and environments.

Electrical Performance and Longevity

With a power factor of 0.95, the cable efficiently delivers power to the LED strip, reducing losses. Designed to endure 100000 switching cycles, it offers dependable service life, supporting stable operation of your LED lighting setup.

Frequently Asked Questions

Can I use one rectifier cable for multiple cut sections of the LED strip?

No, a separate rectifier cable is required for each cut section to maintain proper power supply and safety.

Is this rectifier cable suitable for outdoor use?

Yes, its IP65 ingress protection and thermoplastic construction make it suitable for exterior applications.

What is the maximum load this cable can support?

Each rectifier cable supports up to 400W of 230V LED strip power.

View technical specifications Hide technical specifications
Certificates CE - ROHS
IP Rating IP65-Exterior
Construction Material Thermoplastic
Warranty years 3
Dimensions (mm) L700mm
Rated Power Max.400W
Rated Voltage 220-240 V AC
Energy Class (2021-EU-2019/2015) A++
Power Factor (PF) 0.95
Temperature Range (ºC) -20°C ~ +55°C
Switching Cycles 100.000

LED strips and flexible neon for linear and decorative lighting

LED strips and flexible neon make it possible to create continuous lines of light, illuminate furniture and highlight architectural features with a discreet and adaptable installation. They are used in homes, shops, restaurants, hotels, window displays, offices, terraces, signs and decorative projects.

At DomiLED you will find solutions with different power ratings, operating voltages, colour temperatures, brightness levels and IP protection ratings. Before choosing a product, define the required effect, installation length, mounting location and whether you need white, dimmable or colour-changing light.

Differences between LED strips and flexible neon

LED strip lights contain small diodes mounted on a flexible circuit. They are suitable for installation under cabinets, on shelves, around ceilings, inside display cases, along stairs, in aluminium profiles and in areas where the light source can remain concealed.

Flexible LED neon uses a diffusing cover that hides the individual LED points and produces a more uniform line of light. It is suitable for outlines, shapes, signs, façades, decorative walls and applications where the illuminated line remains visible.

How to choose an LED strip

Power consumption per metre and luminous output determine how much electricity the strip uses and how much light it produces. A moderate output may be sufficient for ambient lighting, while worktops, shop displays and working areas usually require a brighter strip.

The operating voltage must also be checked. Low-voltage LED strips require a correctly sized compatible power supply. Calculate the required power according to the consumption per metre and total installation length, including a safety margin so the power supply does not continuously operate at its maximum capacity.

Warm, neutral, cool white, RGB and RGBW

Warm white strips create a comfortable atmosphere in living rooms, bedrooms, restaurants and hotels. Neutral white provides balanced illumination for kitchens, shops and working areas, while cool white creates a brighter and more technical appearance.

RGB LED strips allow different colours to be selected through a controller. RGBW strips also include a dedicated white-light channel, providing more practical white illumination in addition to coloured effects. A compatible controller is required to adjust brightness or change colours.

Installation, cutting and IP protection

LED strips and flexible neon should only be cut at the points indicated by the manufacturer. Before installation, check the length of each section, connection type and required power supply. Long runs may need to be powered from more than one point to prevent a visible loss of brightness.

An aluminium profile for LED strips improves the finish, helps dissipate heat and protects the installation. For bathrooms, terraces, façades and areas exposed to moisture, choose a suitable IP rating and ensure that all connections and ends are properly sealed.

Explore our selection of LED strip lights, flexible LED neon, power supplies, controllers and accessories and find a complete solution for efficient linear and decorative lighting.
