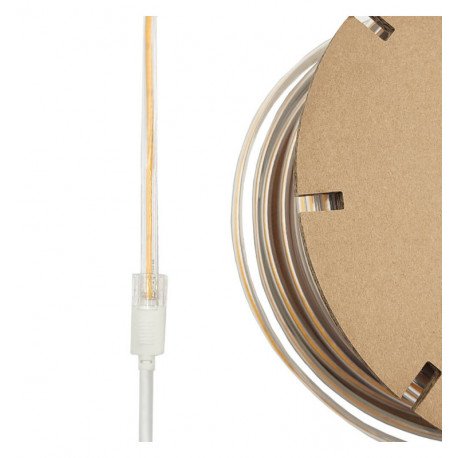

LED COB Rectifier Cable 12mm 10W for 230V Monochrome Strip
LED-00616
New product
The LED COB Rectifier Cable 12mm 10W for 230V Monochrome Strip is a connection accessory designed specifically for COB LED strips employing 320 LEDs per meter. It accommodates direct mains connection without requiring an external transformer and supports up to 500W per cable.
409 Items
More info

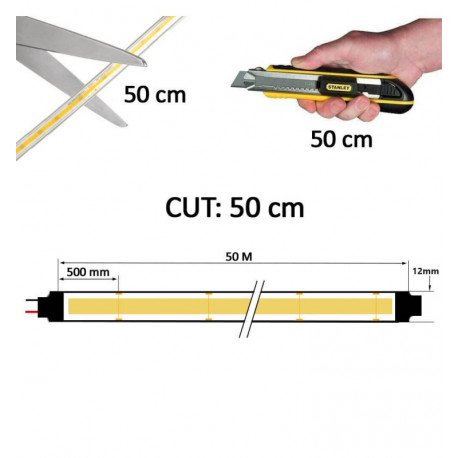

Current rectifier cable for COB LED strip SPCOB320D10W. Power cable for a 230V monochrome LED strip with COB technology (320 LEDs), rated at 10W, designed to connect directly to mains without the need for a transformer. Each rectifier cable supports a maximum of 500W of 230V LED strip with reference SPCOB320D10W. If you cut the strip into sections, you will need one rectifier cable per section. Cable length: approximately 38 cm.
Installation Guidelines
To ensure optimal performance, install the rectifier cable close to the power source, maintaining secure electrical connections compatible with 230V mains. When working with multiple cut sections of the LED strip, use one rectifier cable per section to maintain consistent power delivery. Avoid exceeding the maximum supported power of 500W per cable to prevent electrical overload.
Technical Considerations
The cable dimensions (approximately 38 cm length and 12 mm width) are designed for seamless integration with the specific COB strips referenced. Suitable for monochrome strips employing COB LED technology at 10W power rating, it enables direct connection to standard mains voltage without additional voltage conversion devices.
Frequently Asked Questions
Can the rectifier cable be used with LED strips other than SPCOB320D10W?
This rectifier cable is specifically designed for the SPCOB320D10W strip with COB technology; using it with other strips is not recommended due to possible electrical incompatibilities.
Is this cable safe for use in outdoor installations?
The product description does not specify any IP protection or outdoor suitability ratings, so it is advisable to use it only in indoor environments or protected installations.
What should I do if I need to power more than 500W of LED strip?
Use multiple rectifier cables, each supporting up to 500W of the LED strip. Ensure each strip section has its own rectifier cable connected to mains.
LED strips and flexible neon for linear and decorative lighting
LED strips and flexible neon make it possible to create continuous lines of light, illuminate furniture and highlight architectural features with a discreet and adaptable installation. They are used in homes, shops, restaurants, hotels, window displays, offices, terraces, signs and decorative projects.
At DomiLED you will find solutions with different power ratings, operating voltages, colour temperatures, brightness levels and IP protection ratings. Before choosing a product, define the required effect, installation length, mounting location and whether you need white, dimmable or colour-changing light.
Differences between LED strips and flexible neon
LED strip lights contain small diodes mounted on a flexible circuit. They are suitable for installation under cabinets, on shelves, around ceilings, inside display cases, along stairs, in aluminium profiles and in areas where the light source can remain concealed.
Flexible LED neon uses a diffusing cover that hides the individual LED points and produces a more uniform line of light. It is suitable for outlines, shapes, signs, façades, decorative walls and applications where the illuminated line remains visible.
How to choose an LED strip
Power consumption per metre and luminous output determine how much electricity the strip uses and how much light it produces. A moderate output may be sufficient for ambient lighting, while worktops, shop displays and working areas usually require a brighter strip.
The operating voltage must also be checked. Low-voltage LED strips require a correctly sized compatible power supply. Calculate the required power according to the consumption per metre and total installation length, including a safety margin so the power supply does not continuously operate at its maximum capacity.
Warm, neutral, cool white, RGB and RGBW
Warm white strips create a comfortable atmosphere in living rooms, bedrooms, restaurants and hotels. Neutral white provides balanced illumination for kitchens, shops and working areas, while cool white creates a brighter and more technical appearance.
RGB LED strips allow different colours to be selected through a controller. RGBW strips also include a dedicated white-light channel, providing more practical white illumination in addition to coloured effects. A compatible controller is required to adjust brightness or change colours.
Installation, cutting and IP protection
LED strips and flexible neon should only be cut at the points indicated by the manufacturer. Before installation, check the length of each section, connection type and required power supply. Long runs may need to be powered from more than one point to prevent a visible loss of brightness.
An aluminium profile for LED strips improves the finish, helps dissipate heat and protects the installation. For bathrooms, terraces, façades and areas exposed to moisture, choose a suitable IP rating and ensure that all connections and ends are properly sealed.
Explore our selection of LED strip lights, flexible LED neon, power supplies, controllers and accessories and find a complete solution for efficient linear and decorative lighting.
