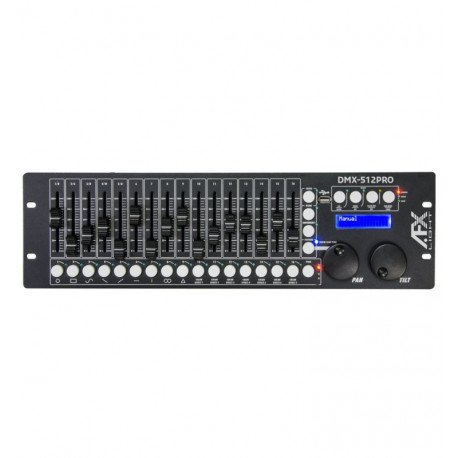

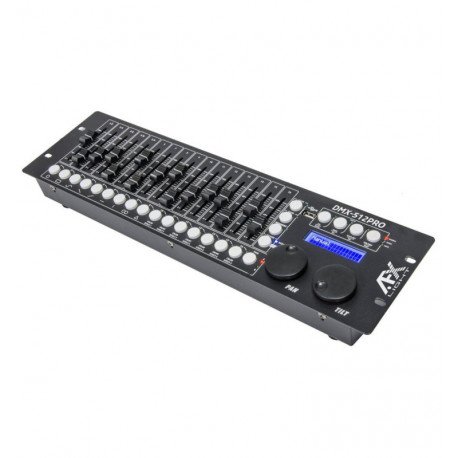

LED DMX512 PRO Controller 512 Channels

LED-00606

Certificates CE - ROHS
Construction Material Aluminum +PC
Dimensions (mm) 483 x 130 x 82 mm
Rated Power 4W

New product

Discover the DMX512-PRO Controller with 512 customizable DMX channels, 32 control channels, and 32 programmable scenes—easy to create lighting effects.

1 Item

Order now and receive it The day after tomorrow

Warning: Last items in stock!

338,12 € tax incl.

Métodos de pago

More info

Get ready to elevate your events with the DMX512-PRO Controller, designed for straightforward, hassle-free lighting control. With 512 fully customizable DMX channels and assignable to 32 control channels, you get precise control over your lights and effects. It also includes 32 programmable scenes, so you can create and repeat lighting atmospheres with ease. Whether it’s a party, a concert, or any other event, this controller gives you the flexibility to fine-tune every detail of your lighting. The digital LED display makes setup and operation simple, so you can focus on the final result.
View technical specifications Hide technical specifications
Certificates CE - ROHS
IP Rating IP20
Construction Material Aluminum +PC
Warranty years 3
Dimensions (mm) 483 x 130 x 82 mm
Rated Power 4W
Rated Voltage AC 110-240V
Operating Frequency (Hz) 50/60Hz
Temperature Range (ºC) -20°C ~ +55°C
Additional Information LED Digital Display (2 x 16 characters)
Control Modes DMX
Number of Channels DMX512 : 512 Channels -Number of sequences: 9

LED strips and flexible neon for linear and decorative lighting

LED strips and flexible neon make it possible to create continuous lines of light, illuminate furniture and highlight architectural features with a discreet and adaptable installation. They are used in homes, shops, restaurants, hotels, window displays, offices, terraces, signs and decorative projects.

At DomiLED you will find solutions with different power ratings, operating voltages, colour temperatures, brightness levels and IP protection ratings. Before choosing a product, define the required effect, installation length, mounting location and whether you need white, dimmable or colour-changing light.

Differences between LED strips and flexible neon

LED strip lights contain small diodes mounted on a flexible circuit. They are suitable for installation under cabinets, on shelves, around ceilings, inside display cases, along stairs, in aluminium profiles and in areas where the light source can remain concealed.

Flexible LED neon uses a diffusing cover that hides the individual LED points and produces a more uniform line of light. It is suitable for outlines, shapes, signs, façades, decorative walls and applications where the illuminated line remains visible.

How to choose an LED strip

Power consumption per metre and luminous output determine how much electricity the strip uses and how much light it produces. A moderate output may be sufficient for ambient lighting, while worktops, shop displays and working areas usually require a brighter strip.

The operating voltage must also be checked. Low-voltage LED strips require a correctly sized compatible power supply. Calculate the required power according to the consumption per metre and total installation length, including a safety margin so the power supply does not continuously operate at its maximum capacity.

Warm, neutral, cool white, RGB and RGBW

Warm white strips create a comfortable atmosphere in living rooms, bedrooms, restaurants and hotels. Neutral white provides balanced illumination for kitchens, shops and working areas, while cool white creates a brighter and more technical appearance.

RGB LED strips allow different colours to be selected through a controller. RGBW strips also include a dedicated white-light channel, providing more practical white illumination in addition to coloured effects. A compatible controller is required to adjust brightness or change colours.

Installation, cutting and IP protection

LED strips and flexible neon should only be cut at the points indicated by the manufacturer. Before installation, check the length of each section, connection type and required power supply. Long runs may need to be powered from more than one point to prevent a visible loss of brightness.

An aluminium profile for LED strips improves the finish, helps dissipate heat and protects the installation. For bathrooms, terraces, façades and areas exposed to moisture, choose a suitable IP rating and ensure that all connections and ends are properly sealed.

Explore our selection of LED strip lights, flexible LED neon, power supplies, controllers and accessories and find a complete solution for efficient linear and decorative lighting.
