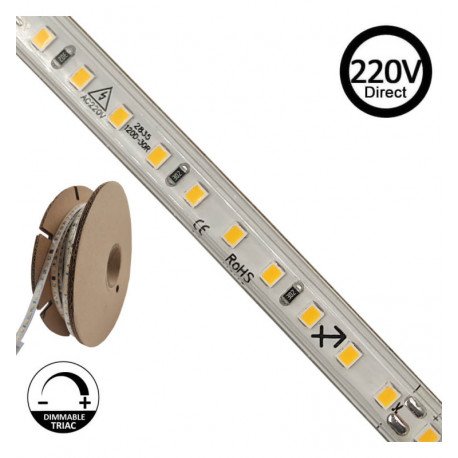

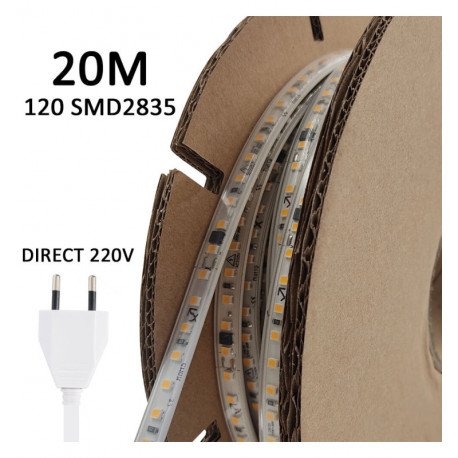

LED Strip 220V 14W/m IP67 Outdoor 20m SMD2835 120LED/m

LED-00568

Certificates CE - ROHS
Construction Material Silicone
Dimensions (mm) L20m x 10mm x H4,2mm
Rated Power 14W
Beam Angle (º) 120º
Dimmable TRIAC

New product

This 20m outdoor LED strip operates at 220V with IP67 protection, featuring 140 SMD2835 BRIDGELUX chip LEDs per meter, 14W power consumption per meter, and a 120° beam angle. It offers a CRI of 82, power factor of 0.91, and a color temperature range from 2300K to 6000K, suitable for reliable and versatile exterior lighting.

Order now and receive it The day after tomorrow

This product is no longer in stock

111,49 € tax incl.

Métodos de pago

More info

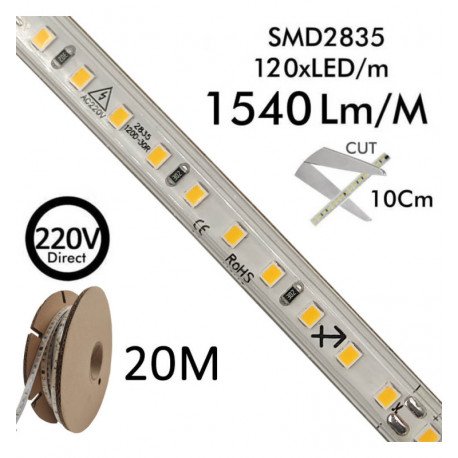

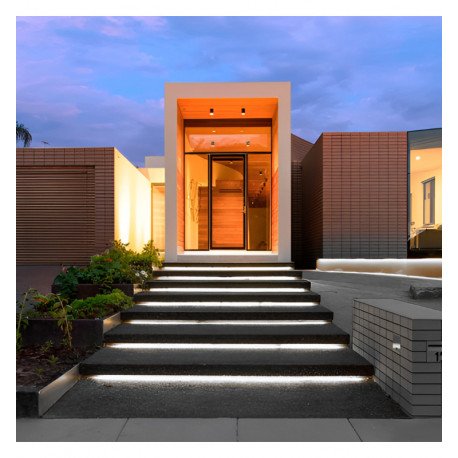

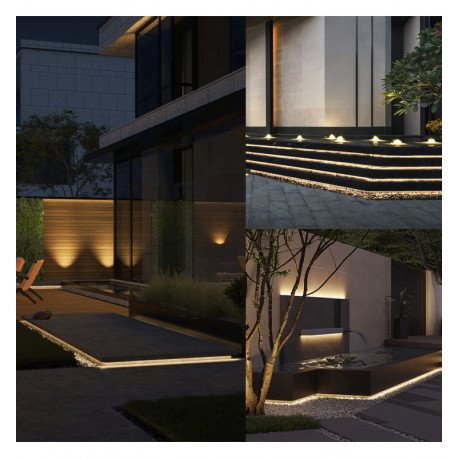

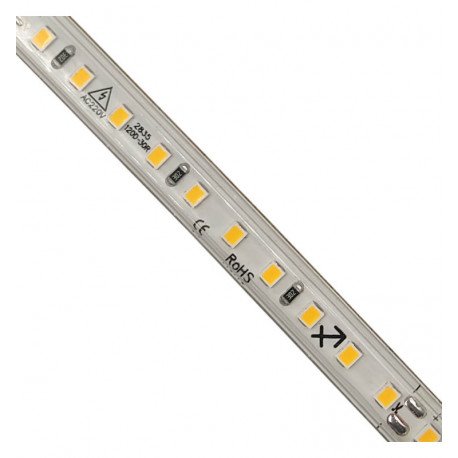

220V LED strip, 20 meters long, with 120 LEDs per meter (SMD2835). Designed for outdoor installation thanks to IP67 protection. Provides 14W per meter and a 120° light distribution. Self-adhesive for easier mounting, and it can be cut and connected at the marked points (copper area) following the instructions. No power supply is required, as it runs directly on 220V. For better heat dissipation, we recommend installing it on an aluminum profile. Ideal for uniform lighting across different outdoor areas, with realistic color rendering (CRI >82).

Material and Durability

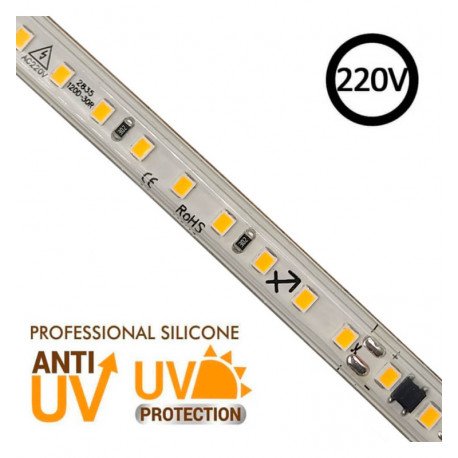

Constructed with silicone material, this LED strip is designed to withstand outdoor conditions including temperature ranges from -20°C to 55°C while maintaining excellent performance. The IP67 rating ensures protection against dust ingress and temporary water immersion, suitable for various exterior environments.

Electrical and Performance Specifications

Running directly on 220V with a power factor of 0.91, the LED strip consumes 14W per meter and delivers an estimated luminous flux of 1540 lm per 14W segment. It functions effectively at standard electrical frequencies of 50Hz and 60Hz. The LED strip also supports 100,000 switching cycles, ensuring longevity in frequent usage scenarios.

Optical Characteristics

Each meter contains 140 LEDs (type SMD2835 BRIDGELUX chip) providing a wide beam angle of 120°, delivering uniform illumination over broad areas. The luminous efficacy is declared at 110 lm/W (estimated), supporting efficient light output. Available color temperatures include 2300K, 2700K, 4000K, and 6000K, allowing customization of light ambiance for different outdoor settings.

Frequently Asked Questions

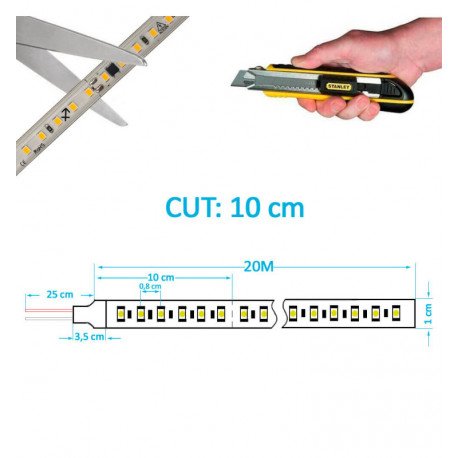

Can this LED strip be cut to length?

Yes, the LED strip can be cut at designated marked points (copper areas) following the manufacturer's instructions to fit your required length.

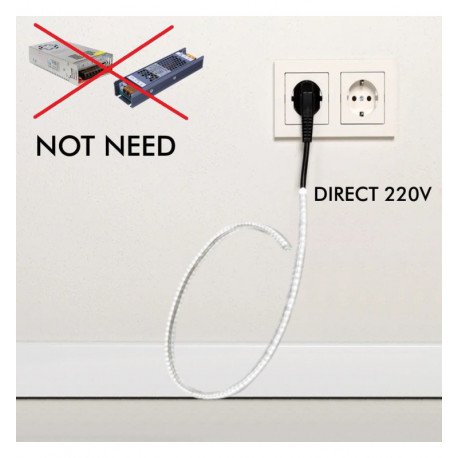

Is a separate power supply needed to operate this LED strip?

No external power supply is required as the strip is designed to run directly on 220V.

How should the LED strip be mounted for optimal performance?

It is recommended to install the strip on an aluminum profile to enhance heat dissipation, ensuring better longevity and performance.

What color temperature options are available?

The LED strip offers multiple color temperature settings including 2300K, 2700K, 4000K, and 6000K to suit various lighting preferences.

View technical specifications Hide technical specifications
Certificates CE - ROHS
IP Rating IP67-Exterior
Construction Material Silicone
Warranty years 3
Dimensions (mm) L20m x 10mm x H4,2mm
Rated Power 14W
Rated Voltage 220-240 V AC
CRI - Color Rendering Index 82
Energy Class (2021-EU-2019/2015) A+
LED Diode Efficacy (Lm/W) 135 Lm/W
Estimated LED Diode Life (H) 100.000
Power Factor (PF) 0,91
Operating Frequency (Hz) 50/60Hz
Temperature Range (ºC) -20°C ~ +55°C
Switching Cycles 100.000
Energy Class (2023 - EU-2019/2015) F
Light Temperature 2300K - 2700K - 4000K - 6000K

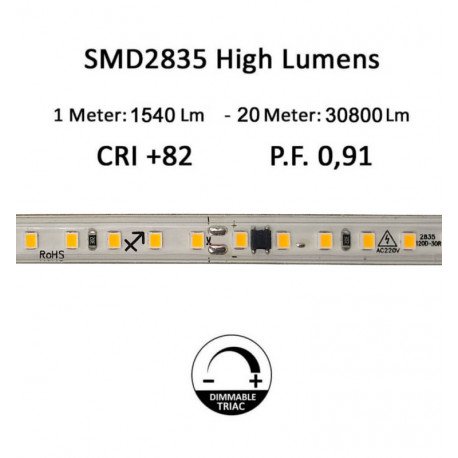

Luminous Flux-Lm 1M: 1540Lm -10M: 15400 Lm - 20M: 30800Lm
LED Type 140 LEDs/M - SMD2835 BRIDGELUX CHIP
Beam Angle (º) 120º
Luminous Efficacy (Lm/W) 110 Lm/W
Dimmable TRIAC

LED strips and flexible neon for linear and decorative lighting

LED strips and flexible neon make it possible to create continuous lines of light, illuminate furniture and highlight architectural features with a discreet and adaptable installation. They are used in homes, shops, restaurants, hotels, window displays, offices, terraces, signs and decorative projects.

At DomiLED you will find solutions with different power ratings, operating voltages, colour temperatures, brightness levels and IP protection ratings. Before choosing a product, define the required effect, installation length, mounting location and whether you need white, dimmable or colour-changing light.

Differences between LED strips and flexible neon

LED strip lights contain small diodes mounted on a flexible circuit. They are suitable for installation under cabinets, on shelves, around ceilings, inside display cases, along stairs, in aluminium profiles and in areas where the light source can remain concealed.

Flexible LED neon uses a diffusing cover that hides the individual LED points and produces a more uniform line of light. It is suitable for outlines, shapes, signs, façades, decorative walls and applications where the illuminated line remains visible.

How to choose an LED strip

Power consumption per metre and luminous output determine how much electricity the strip uses and how much light it produces. A moderate output may be sufficient for ambient lighting, while worktops, shop displays and working areas usually require a brighter strip.

The operating voltage must also be checked. Low-voltage LED strips require a correctly sized compatible power supply. Calculate the required power according to the consumption per metre and total installation length, including a safety margin so the power supply does not continuously operate at its maximum capacity.

Warm, neutral, cool white, RGB and RGBW

Warm white strips create a comfortable atmosphere in living rooms, bedrooms, restaurants and hotels. Neutral white provides balanced illumination for kitchens, shops and working areas, while cool white creates a brighter and more technical appearance.

RGB LED strips allow different colours to be selected through a controller. RGBW strips also include a dedicated white-light channel, providing more practical white illumination in addition to coloured effects. A compatible controller is required to adjust brightness or change colours.

Installation, cutting and IP protection

LED strips and flexible neon should only be cut at the points indicated by the manufacturer. Before installation, check the length of each section, connection type and required power supply. Long runs may need to be powered from more than one point to prevent a visible loss of brightness.

An aluminium profile for LED strips improves the finish, helps dissipate heat and protects the installation. For bathrooms, terraces, façades and areas exposed to moisture, choose a suitable IP rating and ensure that all connections and ends are properly sealed.

Explore our selection of LED strip lights, flexible LED neon, power supplies, controllers and accessories and find a complete solution for efficient linear and decorative lighting.
