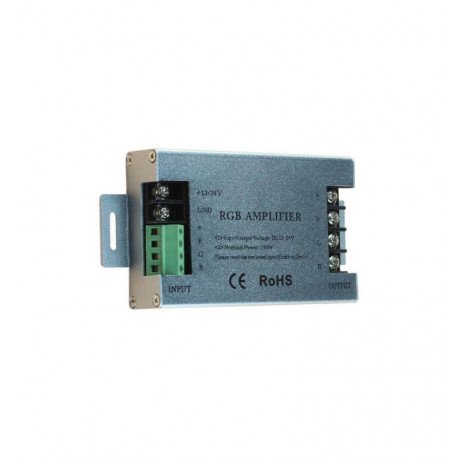

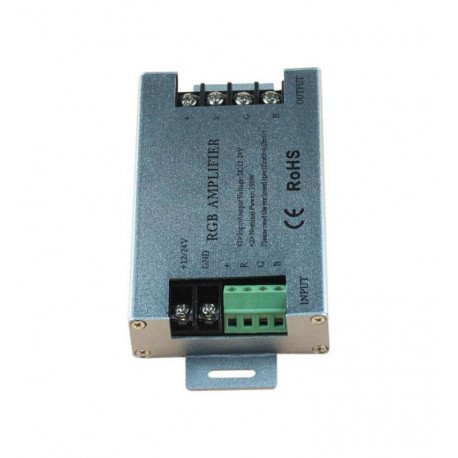

LED RGB Strip Amplifier 350W 12V-24V Stable Signal

LED-00135

Certificates CE - ROHS
Construction Material Aluminum

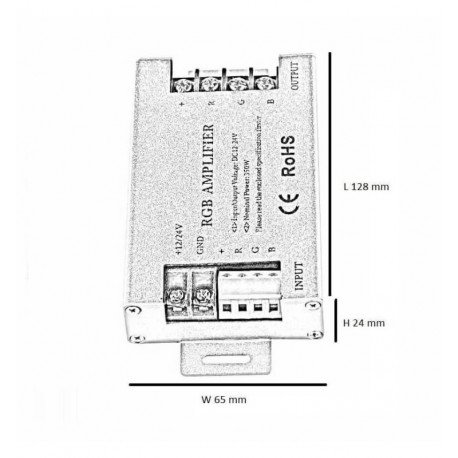

Dimensions (mm) L128 x W65 x H24 mm
Rated Power 350W

New product

The LED RGB Strip Amplifier 350W 12V-24V ensures consistent brightness and stable signal across extended RGB LED strip installations. With series and parallel connection options, it supports larger lighting setups by overcoming signal degradation issues.

248 Items

Order now and receive it The day after tomorrow

16,89 € tax incl.

Métodos de pago

More info

The LED RGB Strip Amplifier 350W 12V-24V boosts the signal of RGB LED strips to help maximize performance. It’s ideal when you need to connect multiple strips in a larger lighting setup, acting as a signal repeater to help maintain steady power and consistent brightness across the installation. This helps overcome distance and signal-resistance limitations, supporting a more even light distribution. It also offers both series and parallel connection options, giving you flexibility to expand and adapt your RGB LED strip system.

Robust Construction and Operational Reliability

Crafted from durable aluminum, this amplifier is designed to operate reliably in temperatures ranging from -20°C to 55°C. Its IP20 rating makes it suitable for indoor environments where protection from dust is adequate but not waterproof.

Engineered for longevity, the device supports up to 100,000 switching cycles and boasts a rapid startup time of just 0.2 seconds to quickly achieve optimal performance after power-on.

Power and Frequency Specifications

Operating within a 12V to 24V power range and capable of handling 350W, the amplifier is compatible with standard mains frequencies of 50Hz and 60Hz. This flexibility allows integration into various electrical systems without concern for frequency mismatches.

Frequently Asked Questions

Can this amplifier be used outdoors?

No, with an IP20 ingress protection rating, this amplifier is intended for indoor use and is not protected against water.

What connection types are supported?

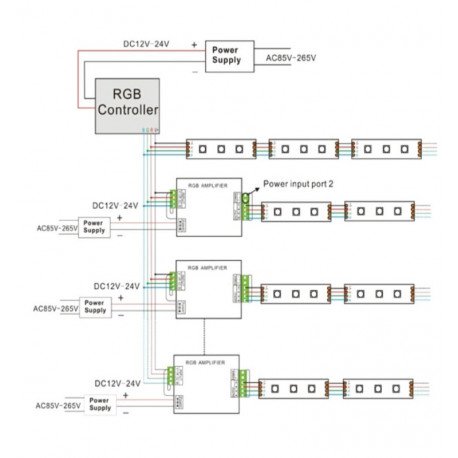

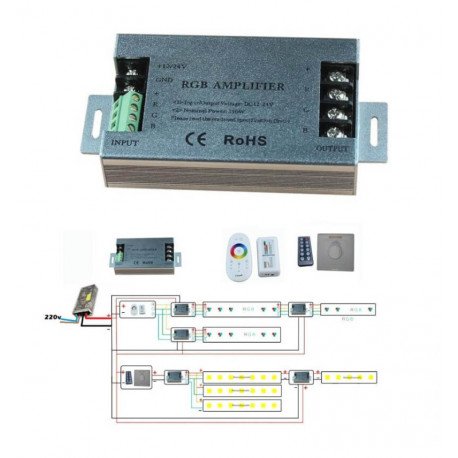

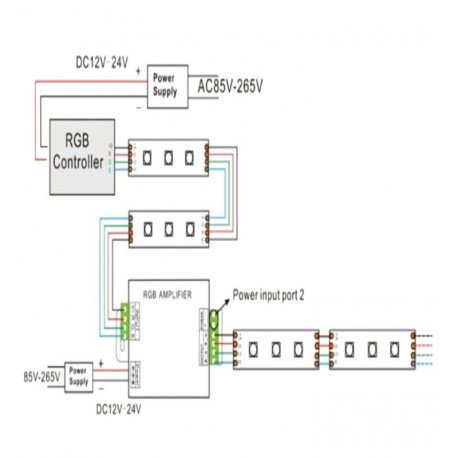

The amplifier supports both series and parallel connections for flexible integration into different LED strip configurations.

How long is the product warranty?

It comes with a 3-year warranty covering manufacturing defects and performance issues.

View technical specifications Hide technical specifications
Certificates CE - ROHS
IP Rating IP20
Construction Material Aluminum
Warranty years 3
Dimensions (mm) L128 x W65 x H24 mm
Rated Power 350W
Rated Voltage DC 12 -24V
Energy Class (2021-EU-2019/2015) A+
Estimated LED Diode Life (H) 50.000
Operating Frequency (Hz) 50/60Hz
Temperature Range (ºC) -20°C ~ +55°C
Switching Cycles 100.000
Start-Up Time (s) 0,2s

LED strips and flexible neon for linear and decorative lighting

LED strips and flexible neon make it possible to create continuous lines of light, illuminate furniture and highlight architectural features with a discreet and adaptable installation. They are used in homes, shops, restaurants, hotels, window displays, offices, terraces, signs and decorative projects.

At DomiLED you will find solutions with different power ratings, operating voltages, colour temperatures, brightness levels and IP protection ratings. Before choosing a product, define the required effect, installation length, mounting location and whether you need white, dimmable or colour-changing light.

Differences between LED strips and flexible neon

LED strip lights contain small diodes mounted on a flexible circuit. They are suitable for installation under cabinets, on shelves, around ceilings, inside display cases, along stairs, in aluminium profiles and in areas where the light source can remain concealed.

Flexible LED neon uses a diffusing cover that hides the individual LED points and produces a more uniform line of light. It is suitable for outlines, shapes, signs, façades, decorative walls and applications where the illuminated line remains visible.

How to choose an LED strip

Power consumption per metre and luminous output determine how much electricity the strip uses and how much light it produces. A moderate output may be sufficient for ambient lighting, while worktops, shop displays and working areas usually require a brighter strip.

The operating voltage must also be checked. Low-voltage LED strips require a correctly sized compatible power supply. Calculate the required power according to the consumption per metre and total installation length, including a safety margin so the power supply does not continuously operate at its maximum capacity.

Warm, neutral, cool white, RGB and RGBW

Warm white strips create a comfortable atmosphere in living rooms, bedrooms, restaurants and hotels. Neutral white provides balanced illumination for kitchens, shops and working areas, while cool white creates a brighter and more technical appearance.

RGB LED strips allow different colours to be selected through a controller. RGBW strips also include a dedicated white-light channel, providing more practical white illumination in addition to coloured effects. A compatible controller is required to adjust brightness or change colours.

Installation, cutting and IP protection

LED strips and flexible neon should only be cut at the points indicated by the manufacturer. Before installation, check the length of each section, connection type and required power supply. Long runs may need to be powered from more than one point to prevent a visible loss of brightness.

An aluminium profile for LED strips improves the finish, helps dissipate heat and protects the installation. For bathrooms, terraces, façades and areas exposed to moisture, choose a suitable IP rating and ensure that all connections and ends are properly sealed.

Explore our selection of LED strip lights, flexible LED neon, power supplies, controllers and accessories and find a complete solution for efficient linear and decorative lighting.
