LED Strip 24V 16W/m SMD2835 182 LEDs/m 5m IP20
Certificates
CE - ROHS
Construction Material
PCB
Dimensions (mm)
5m x 10mm
Rated Power
16w
Beam Angle (º)
120º
New product
LED Strip 24V with SMD2835 technology, featuring 182 LEDs per meter and 16W power consumption per meter. Offers a luminous flux of approximately 1920 lm per 16W segment and a 120° beam angle. Available in multiple color temperatures and suitable for indoor decorative lighting with IP20 protection.
3052 Items
More info
24V IP20 LED strip designed for efficient lighting in decoration and indoor spaces. Features 182 LEDs per meter using SMD2835 technology, with a power consumption of 16W per meter and a luminous flux of 11200Lm. Light is distributed over a 120° beam angle. The strip is self-adhesive for easy installation, but it requires a DC (direct current) power supply.
It can be cut and connected only at the marked areas on the strip (copper zones). Follow the corresponding instructions to avoid excess heat during soldering. For a cleaner, more stable installation, it is recommended to mount it on an aluminum profile.
Installation and Handling
The LED strip is designed for ease of use in indoor settings and includes a self-adhesive backing for straightforward mounting on various surfaces. It must be powered by a 24V DC supply and should be cut only at designated copper zones to maintain proper function and safety. When soldering connections, care must be taken to avoid overheating which can damage the strip. For enhanced thermal management and a more polished appearance, installation on aluminum profiles is recommended.
Durability and Usage Conditions
This LED strip operates efficiently within a temperature range from -20°C to 55°C, making it suitable for typical indoor environments. It has a rated switching cycle count of 100,000, indicating its capacity for frequent switching without degradation. The product carries a warranty of 3 years, reflecting its reliability under normal operating conditions.
Color Temperature and Application Versatility
The product is available in various correlated color temperatures including 2200K, 2700K (warm white), 4000K (neutral white), and 6000K (cool white). This variety allows for tailored lighting moods and applications ranging from accent lighting to general illumination in residential or commercial indoor environments.
Frequently Asked Questions
Can this LED strip be used outdoors?
No, this LED strip has an IP20 ingress protection rating, which means it is intended for indoor use only where it is protected from moisture and dust.
Is the LED strip dimmable?
The product facts do not specify dimming capabilities. It should be assumed that dimming is not supported unless used with compatible dimming equipment.
How is the LED strip powered?
The strip requires a 24V DC power supply. It must be connected correctly to direct current to operate safely and efficiently.
Can I cut the LED strip to fit a specific length?
Yes, the strip can be cut only at specific copper zones marked along its length. Proper procedures should be followed to avoid damage during cutting and soldering.
View technical specifications Hide technical specifications
Certificates
CE - ROHS
IP Rating
IP20
Construction Material
PCB
Warranty years
3
Dimensions (mm)
5m x 10mm
Rated Power
16w
Rated Voltage
24V DC
CRI - Color Rendering Index
+80
Energy Class (2021-EU-2019/2015)
A+
LED Diode Efficacy (Lm/W)
140 Lm/W
Estimated LED Diode Life (H)
100.000
Operating Frequency (Hz)
50/60Hz
Temperature Range (ºC)
-20°C ~ +55°C
Switching Cycles
100.000
Energy Class (2023 - EU-2019/2015)
E
Light Temperature
2200K - 2700K - 4000K - 6000K
Luminous Flux-Lm
1M: 2240Lm - 5M: 11200Lm
LED Type
182 LEDs/M - SMD2835
Beam Angle (º)
120º
Luminous Efficacy (Lm/W)
120 Lm/W
Additional Information

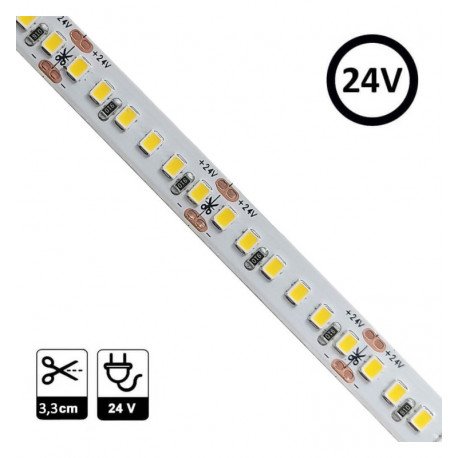

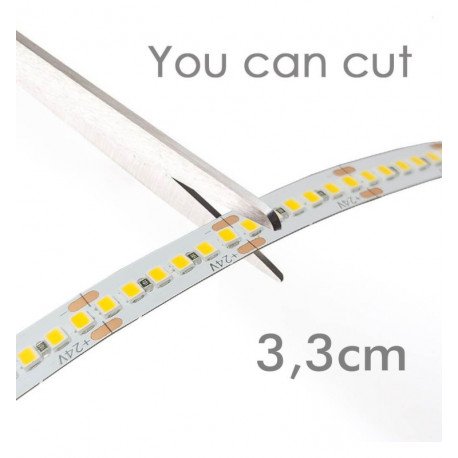

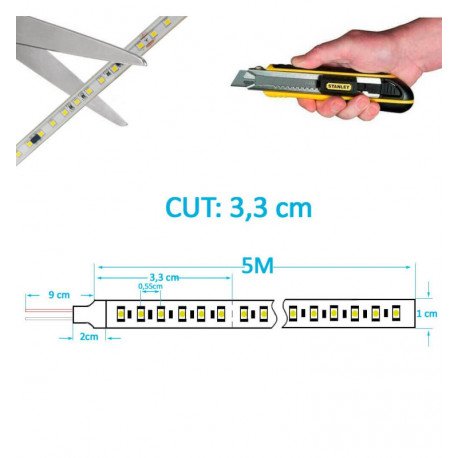

Cut: 3,3cm
LED strips and flexible neon for linear and decorative lighting
LED strips and flexible neon make it possible to create continuous lines of light, illuminate furniture and highlight architectural features with a discreet and adaptable installation. They are used in homes, shops, restaurants, hotels, window displays, offices, terraces, signs and decorative projects.
At DomiLED you will find solutions with different power ratings, operating voltages, colour temperatures, brightness levels and IP protection ratings. Before choosing a product, define the required effect, installation length, mounting location and whether you need white, dimmable or colour-changing light.
Differences between LED strips and flexible neon
LED strip lights contain small diodes mounted on a flexible circuit. They are suitable for installation under cabinets, on shelves, around ceilings, inside display cases, along stairs, in aluminium profiles and in areas where the light source can remain concealed.
Flexible LED neon uses a diffusing cover that hides the individual LED points and produces a more uniform line of light. It is suitable for outlines, shapes, signs, façades, decorative walls and applications where the illuminated line remains visible.
How to choose an LED strip
Power consumption per metre and luminous output determine how much electricity the strip uses and how much light it produces. A moderate output may be sufficient for ambient lighting, while worktops, shop displays and working areas usually require a brighter strip.
The operating voltage must also be checked. Low-voltage LED strips require a correctly sized compatible power supply. Calculate the required power according to the consumption per metre and total installation length, including a safety margin so the power supply does not continuously operate at its maximum capacity.
Warm, neutral, cool white, RGB and RGBW
Warm white strips create a comfortable atmosphere in living rooms, bedrooms, restaurants and hotels. Neutral white provides balanced illumination for kitchens, shops and working areas, while cool white creates a brighter and more technical appearance.
RGB LED strips allow different colours to be selected through a controller. RGBW strips also include a dedicated white-light channel, providing more practical white illumination in addition to coloured effects. A compatible controller is required to adjust brightness or change colours.
Installation, cutting and IP protection
LED strips and flexible neon should only be cut at the points indicated by the manufacturer. Before installation, check the length of each section, connection type and required power supply. Long runs may need to be powered from more than one point to prevent a visible loss of brightness.
An aluminium profile for LED strips improves the finish, helps dissipate heat and protects the installation. For bathrooms, terraces, façades and areas exposed to moisture, choose a suitable IP rating and ensure that all connections and ends are properly sealed.
Explore our selection of LED strip lights, flexible LED neon, power supplies, controllers and accessories and find a complete solution for efficient linear and decorative lighting.
