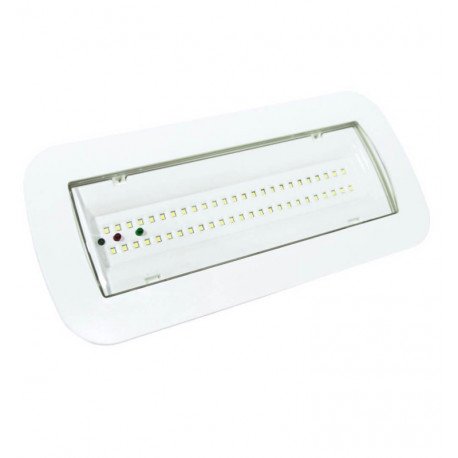

LED Emergency Light 4W IP65 with Auto Test & Ceiling Kit
LED-00162
Certificates
CE - ROHS-TÜV
Construction Material
ABS + PC (Cover) + PCB
Dimensions (mm)
290*125*90mm
Rated Power
4W
Beam Angle (º)
120º
Ceiling Cut (mm)
245*85mm
New product
The LED Emergency Light 4W IP65 with Auto Test & Ceiling Kit is a robust emergency luminaire offering 404 lm (estimated) brightness at 6000 K. Featuring IK10 impact resistance and an IP65 rating, it ensures reliable illumination during outages with fast 0.2 s startup and long switch durability (100000 cycles).
992 Items
More info
4W LED emergency light with ceiling kit and the option of permanent or non-permanent operation. Thanks to its SMD2835 technology, it provides bright 6500K light output of 415 lumens, ideal for maintaining illumination when the power supply is interrupted.

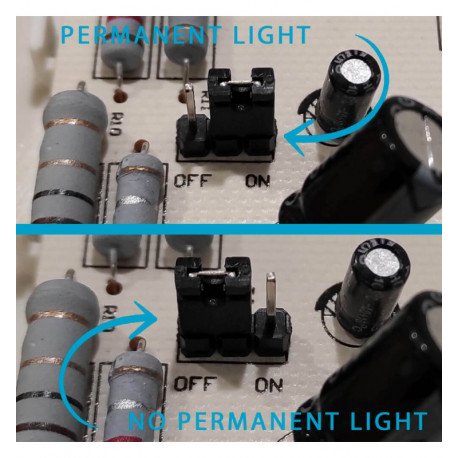

Includes two operating modes:
- Charge Mode: the emergency light stays off and turns on when there is a power outage.
- Permanent Mode: the light remains steadily on.
With an IP65 protection design, it is suitable for installations where dependable performance is required. The included kit allows installation in false ceilings and supports practical surface or recessed mounting depending on your needs.
Durability and Protection
Constructed from ABS with a polycarbonate cover and PCB, this emergency light is engineered for resilience in demanding environments. The IK10 impact protection rating safeguards against severe impacts, while the IP65 ingress protection rating ensures resistance against dust and water, making it suitable for both indoor and outdoor applications.
Efficient and Reliable Performance

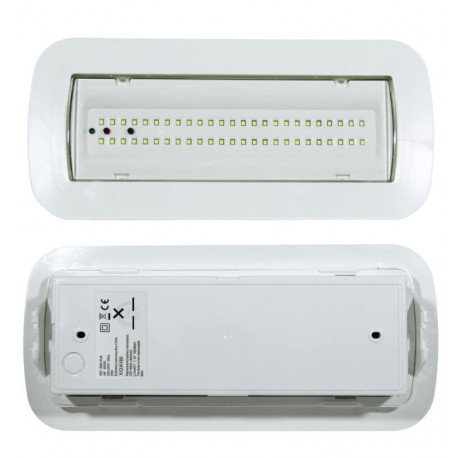

Equipped with 50 SMD 2835 LEDs delivering an estimated 404 lm at 6000 K color temperature, the luminaire produces bright and clear lighting. Its 101 lm/W efficacy reflects energy-efficient operation. The device supports a wide voltage range (220–240 V) at 50/60 Hz frequency, accommodating various electrical systems.
Rapid Startup and Longevity
This emergency light achieves full brightness within 0.2 seconds after power interruption, providing immediate illumination. Designed for endurance, it can withstand up to 100000 switching cycles, ensuring long-term reliable performance. It operates effectively in ambient temperatures from -20 °C to 55 °C.
Frequently Asked Questions
What does the IK10 rating mean for this product?
The IK10 rating indicates the product is highly resistant to mechanical impacts, protecting it against strong shocks and vandalism.
Is this emergency light suitable for outdoor use?

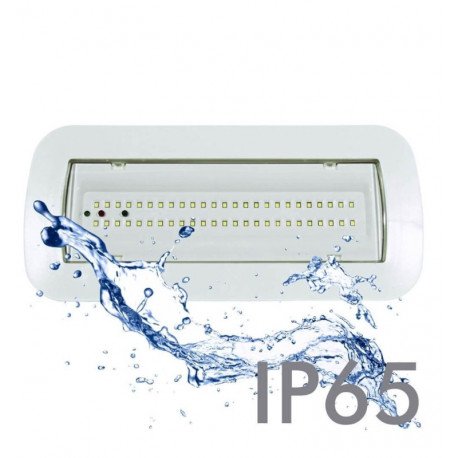

Yes, the IP65 rating makes it dust-tight and protected against water jets, enabling installation in outdoor or harsh environments.

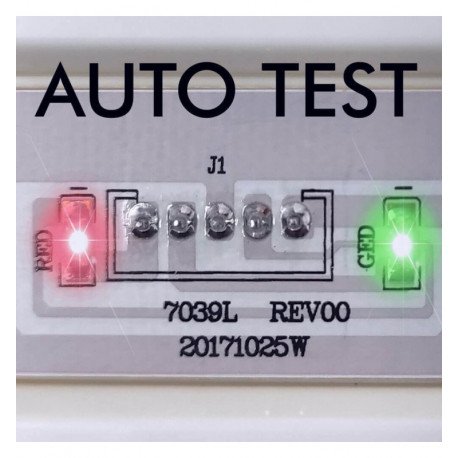

How does the Auto Test feature function?
Though not detailed here, the Auto Test generally monitors the emergency light’s functionality and battery status automatically, ensuring readiness without manual testing.
View technical specifications Hide technical specifications
Certificates
CE - ROHS-TÜV
IP Rating
IP65-Exterior
Construction Material
ABS + PC (Cover) + PCB
Warranty years
3
Dimensions (mm)
290*125*90mm
Rated Power
4W
Rated Voltage
220-240V
CRI - Color Rendering Index
75
Energy Class (2021-EU-2019/2015)
A+
LED Diode Efficacy (Lm/W)
120Lm/W
Estimated LED Diode Life (H)
30.000
Operating Frequency (Hz)
50/60Hz
Temperature Range (ºC)
-20°C ~ +55°C
Switching Cycles
100.000
Start-Up Time (s)
0,2s
Impact Protection (IK)
IK10
Light Temperature
6000K
Luminous Flux-Lm
415Lm
LED Type
50 SMD 2835
Beam Angle (º)
120º
Luminous Efficacy (Lm/W)
101Lm/W
Additional Information
Charge time 12Hrs - Construction: Fire-Retardant

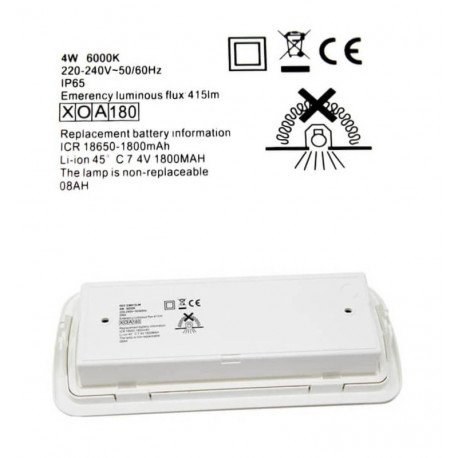

Battery Material
Li-ion
Discharge Time (h)
3H.
Ceiling Cut (mm)
245*85mm
