LED Angular Connector 9W POLARIS 90° 3CCT
LED-00915
Certificates
CE - ROHS
Construction Material
Aluminum +PC
Dimensions (mm)
157x57x76mm
Rated Power
9W
Beam Angle (º)
110º
New product

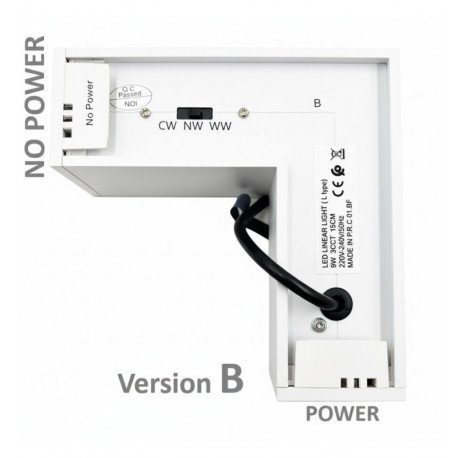

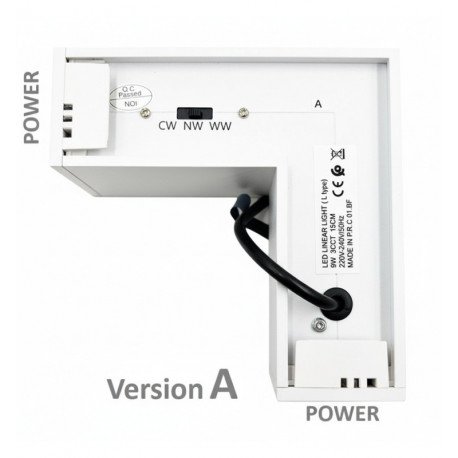

The LED Angular Connector 9W POLARIS 90° 3CCT enables seamless, angular connections between POLARIS linear LED luminaires. With a durable aluminum and PC construction, IP20 rating, and multiple color temperature options, it provides versatile, efficient lighting integration for suspended installations.
736 Items
More info

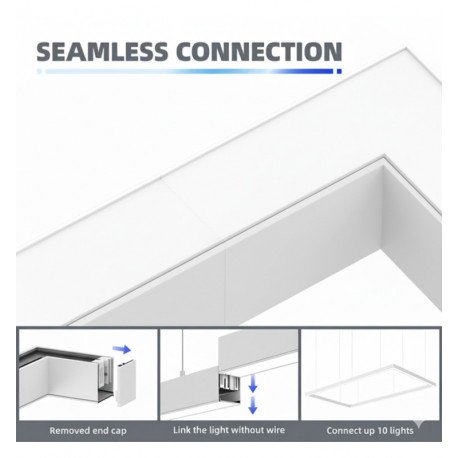

9W LED Angular Connector – POLARIS White – Linear interconnection – 3CCT – 90°. Connect your POLARIS luminaires with a connector designed to create a clean, seamless link between two fixtures thanks to its 90° angular shape. Ideal for projects using hanging linear LED POLARIS lamps, it supports a continuous connection to help maintain a more even light output and a more refined finish. The 3CCT configuration also lets you adapt the lighting to the atmosphere you want.
Design and Build
Crafted from aluminum and polycarbonate (PC), this connector offers a sturdy, lightweight solution ensuring durability and a quality finish. Its compact dimensions (157 mm x 57 mm x 76 mm) facilitate discreet installation within linear lighting systems.
The IP20 protection rating makes it suitable for indoor environments, protecting against solid object ingress but not against moisture.
Performance and Efficiency
Equipped with SMD 2835 LED technology and a Lifud driver that eliminates flicker, the connector delivers consistent lighting performance with a luminous efficacy of 130 lm/W, estimated at 1170 lm output for 9W power consumption.
The option for three color temperature settings (3CCT) enables customization of ambient lighting to suit different settings and preferences, all while maintaining a beam angle of 110° for uniform illumination.
Electrical and Operational Features
Compatible with voltage input between 220V and 240V at frequencies of 50Hz or 60Hz, the connector features a high power factor of 0.95 for efficient electrical usage.
It operates reliably within temperatures from -20°C to 55°C, supports up to 100,000 switching cycles, and offers a rapid startup time of 0.2 seconds, ensuring consistent operation in residential or commercial applications.
Frequently Asked Questions
Can this connector be used outdoors?
No, with an IP20 rating it is designed exclusively for indoor use where it is protected from moisture.
What does the 3CCT feature mean?
3CCT refers to the ability to select between three different correlated color temperatures, allowing the lighting ambiance to be adapted to various settings.
Is the connector compatible with all POLARIS LED luminaires?
It is intended for use with POLARIS linear LED luminaires designed for the specific angular connector; compatibility should be verified based on the exact model specifications.
View technical specifications Hide technical specifications
Certificates
CE - ROHS
IP Rating
IP20
Construction Material
Aluminum +PC
Warranty years
3
Dimensions (mm)
157x57x76mm
Rated Power
9W
Rated Voltage
220-240V
CRI - Color Rendering Index
+80
Energy Class (2021-EU-2019/2015)
A+
LED Diode Efficacy (Lm/W)
140 Lm/W
Estimated LED Diode Life (H)
50.000
Power Factor (PF)
0.95
Operating Frequency (Hz)
50/60Hz
Temperature Range (ºC)
-20°C ~ +55°C
Switching Cycles
100.000
Start-Up Time (s)
0,2s
Energy Class (2023 - EU-2019/2015)
E
Luminous Flux-Lm
900
LED Type
SMD 2835
Beam Angle (º)
110º
Luminous Efficacy (Lm/W)
130 Lm/W
Driver Included
Driver Lifud - NO FLICK
Units per Masterbox
1
