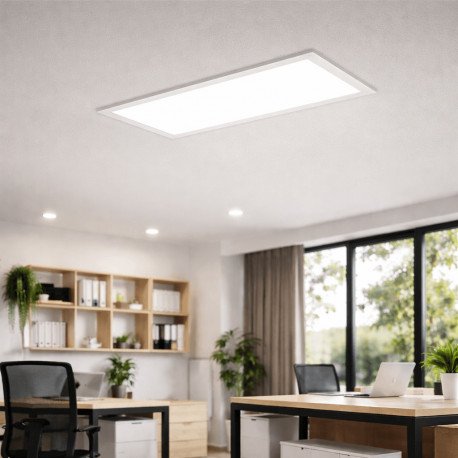

LED Surface Panel 60x30 36W 3CCT Ultra Slim 22mm GXtronic

Design and Build Quality

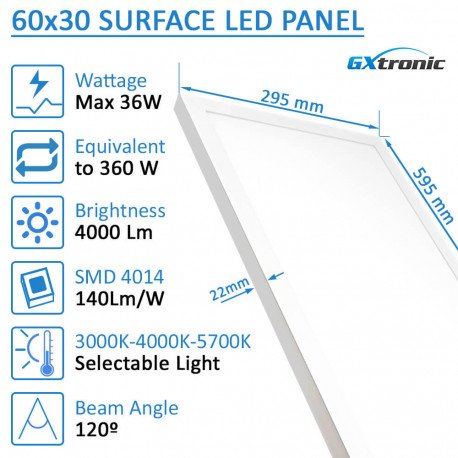

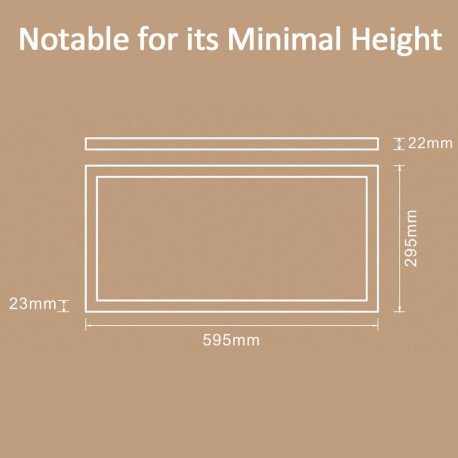

The panel frame combines steel (acero) and PMMA materials, ensuring structural robustness and effective light diffusion. Its ultra slim profile of 22mm allows discreet and modern surface installation, integrating well with various interior ceilings.

The IP20 ingress protection rating makes it suitable for indoor environments where exposure to dust and moisture is minimal.

Electrical and Performance Features

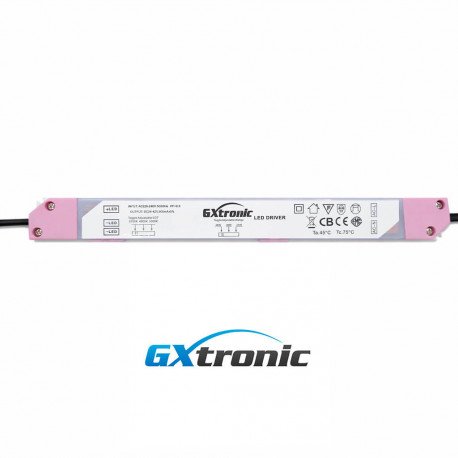

Powered by a GXtronic driver designed with no flicker technology, this panel provides stable and comfortable lighting. Operating frequency supports both 50 Hz and 60 Hz mains supply, making it versatile across different electrical systems.

The device maintains a high power factor of 0.95, contributing to efficient energy use in lighting circuits.

Versatile Lighting Options

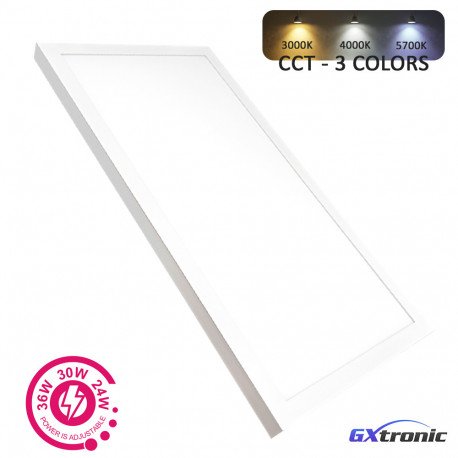

Selectable correlated color temperature (CCT) settings of 3000K, 4000K, and 5700K allow adaptation of light ambiance from warm to cool white as needed. Additionally, selectable power settings of 24W, 30W, and 36W provide flexibility in light output to match room requirements without replacing the fixture.

This adaptability makes the panel appropriate for a wide range of applications, including offices, commercial spaces, and residential areas.

Operating Conditions and Reliability

The panel is rated to operate within an ambient temperature range from -10°C to 40°C, supporting a variety of indoor environments.

A 5-year warranty underscores the manufacturer's confidence in the product's durability and performance, assuring long-term reliability.

Frequently Asked Questions

Can I install this panel in a bathroom?

No, this LED panel has an IP20 rating, which is suitable for indoor dry areas only. It is not designed for humid or wet locations like bathrooms.

How do I select the desired color temperature or power setting?

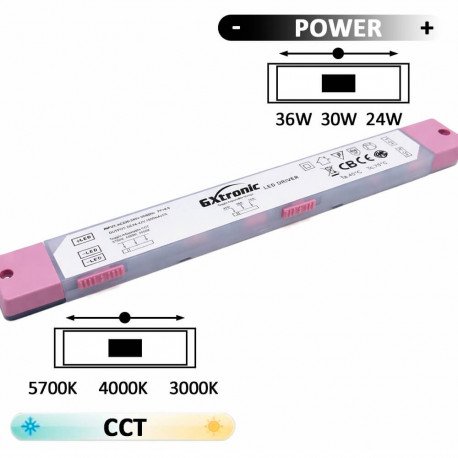

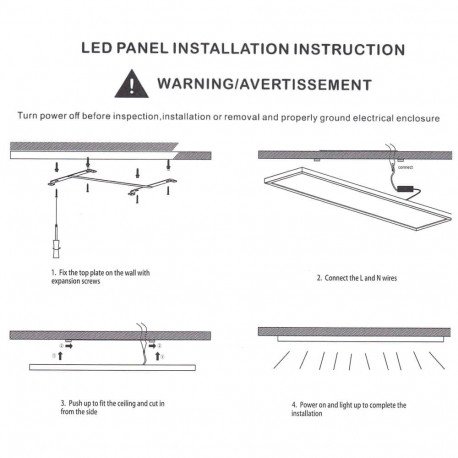

The panel includes selectable options for both CCT and power. Selection is made during installation, typically via switches or settings in the driver. Please refer to the installation manual for specific instructions.

Is this panel dimmable?

The product information does not specify dimming capability. Therefore, it should be considered non-dimmable unless confirmed otherwise by the manufacturer or product documentation.

What are the benefits of the no flicker GXtronic driver?

The GXtronic no flicker driver provides stable and consistent light output without perceptible flickering, which enhances visual comfort and reduces eye strain.
