LED Panel 60x60 40W Slim Dimmable DALI/PUSH TRIAC 0-10V (Pack of 10)
Certificates
CE, CMIM, RoHS
Construction Material
Aluminum +PC

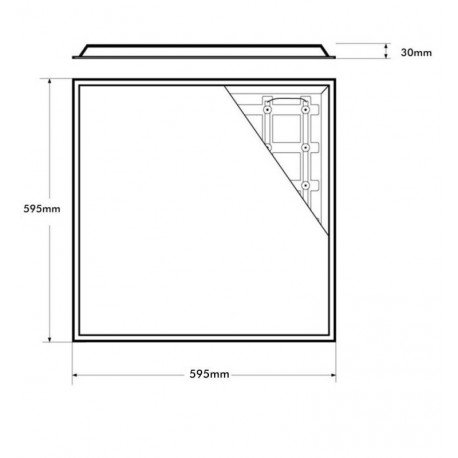

Dimensions (mm)
595X595mmH30mm
Rated Power
40W
Beam Angle (º)
120º
Dimmable
Yes
New product
Slim and modern 60x60 cm LED panel with 40W power, offering up to 4000 lm (estimated) and high efficiency of 100 lm/W. Includes dimmable drivers compatible with DALI/PUSH, TRIAC, or 0-10V controls. Suitable for various professional spaces requiring comfortable, uniform lighting with quick start-up and IP20 protection.
9 Items
More info

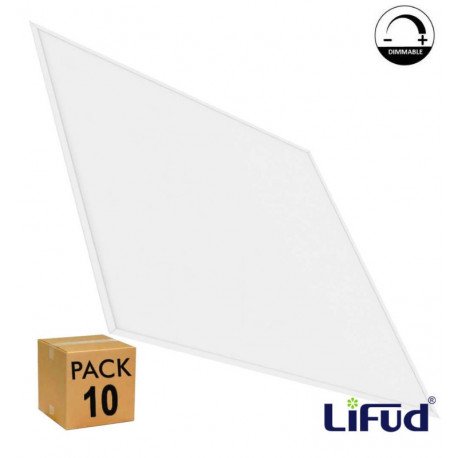

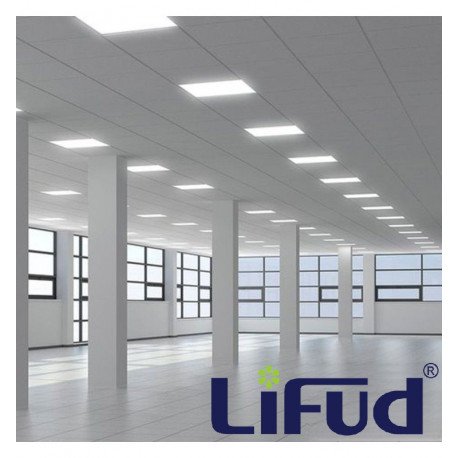

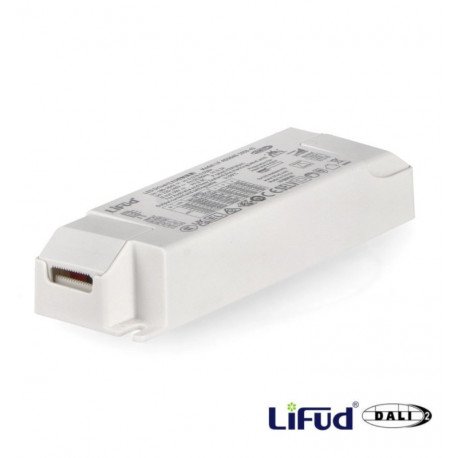

PACK 10 LED Panel 60x60 40W SLIM FRAME with LIFUD dimmable driver. Designed for professional projects that need efficiency, versatility and comfortable, uniform lighting. Made with an aluminum body and a frameless, modern look, it delivers a continuous light surface—ideal for offices, clinics, retail, classrooms, hotels and logistics centers. Includes a LIFUD dimmable driver with control options: DALI/PUSH, TRIAC or 0-10V, so you can adjust light output to match the environment. Provides high lighting performance, uniform light distribution and instant start-up without flicker, with ENEC05 certification and a 5-year warranty.
Design and Materials
Constructed from aluminum and polycarbonate (PC), the panel balances durability with lightweight design. The frameless finish provides a sleek, modern aesthetic that integrates seamlessly into ceiling grids or other architectural environments.
Optical Performance
The LED Panel features a wide 120° beam angle to ensure broad and even light distribution, reducing shadows and glare. It uses SMD 2835 LED technology and offers two color temperature options: 4000K (neutral white) and 5700K (cool white), catering to various lighting preferences and applications.
Electrical and Environmental Specifications
Operating reliably at 50/60 Hz, the panel functions well within a temperature range of -20°C to 55°C. It supports up to 100,000 switching cycles and enables near-instantaneous start-up within 0.2 seconds. The IP20 rating indicates protection suitable for indoor environments, avoiding dust and water exposure.
Frequently Asked Questions
What dimming options are available for this LED panel?
The LED panel supports dimmable drivers compatible with 0-10V, DALI/PUSH, and TRIAC controls, allowing flexible light output adjustment.
Can this panel be used in damp or outdoor environments?
No, this LED panel has an IP20 ingress protection rating, making it suitable for indoor use only where it is not exposed to moisture or water.
What are the available color temperatures?
This product is available in two color temperatures: 4000K (neutral white) and 5700K (cool white) to suit different lighting needs.
How long is the warranty on this LED panel?
The product includes a 5-year warranty ensuring quality and performance reliability.
View technical specifications Hide technical specifications
Certificates
CE, CMIM, RoHS
IP Rating
IP20
Construction Material
Aluminum +PC
Warranty years
5
Dimensions (mm)
595X595mmH30mm
Rated Power
40W
Rated Voltage
220V-240V
CRI - Color Rendering Index
+80
Energy Class (2021-EU-2019/2015)
A+
LED Diode Efficacy (Lm/W)
140 Lm/W
Estimated LED Diode Life (H)
40.000
Operating Frequency (Hz)
50/60Hz
Temperature Range (ºC)
-20°C ~ +55°C
Switching Cycles
100.000
Start-Up Time (s)
0,2s
Energy Class (2023 - EU-2019/2015)
E
Light Temperature
4000K - 5700K
Luminous Flux-Lm
4000
LED Type
SMD 2835
Beam Angle (º)
120º
Luminous Efficacy (Lm/W)
100Lm/W
Driver Included
SI
Dimmable
Yes
Glare Index (UGR)
17
