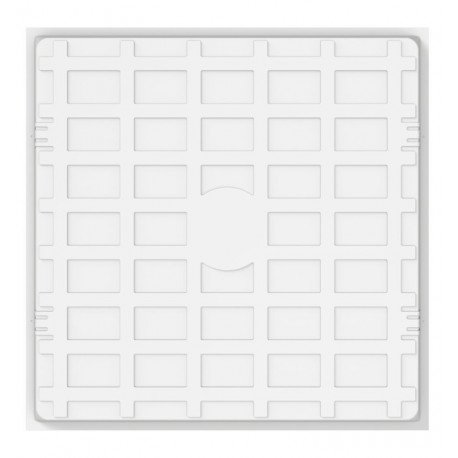

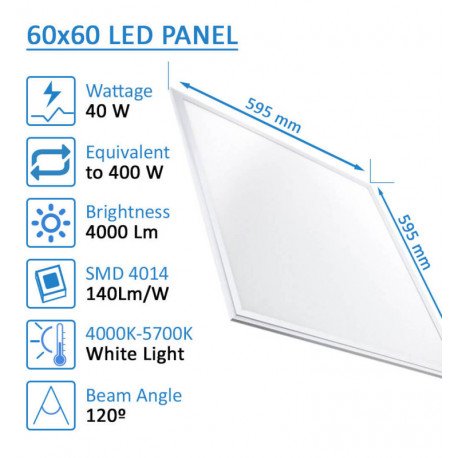

LED Panel 60x60 40W Pack of 10 Slim Frame 4000K
Certificates
CE-RoSH-TÜV-ENEC
Construction Material
Aluminum + ABS
Dimensions (mm)
595X595mmH30mm
Rated Power
40W
Beam Angle (º)
120º
New product
The LED Panel 60x60 40W Slim Frame is an ultra-thin panel designed for drop ceilings, offering 4000 lm illumination with a Philips driver. Available in neutral and cool white, it features high color rendering (CRI >80), 120° beam angle, and reliable performance within -20 to 55°C, backed by a 5-year warranty.
422 Items
More info

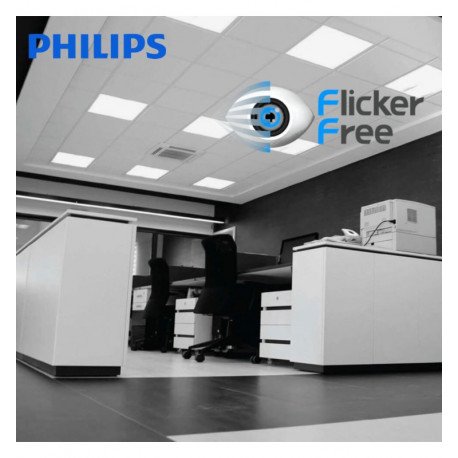

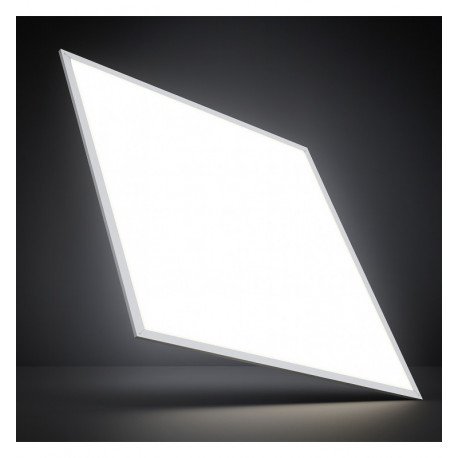

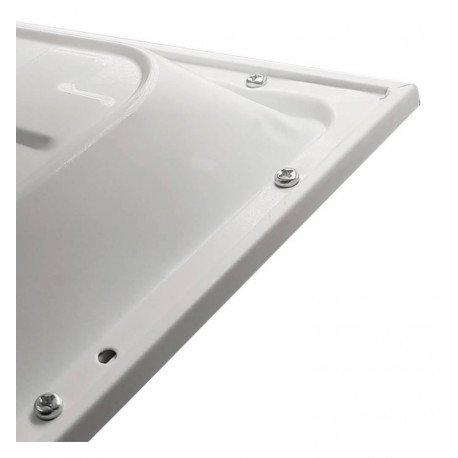

PACK OF 10 LED PANELS 60x60 40W with Philips driver and backlight technology, featuring the NEW SLIM FRAME ultra-thin design. Made for drop ceilings, it delivers powerful, even illumination with a professional finish and no flicker. The SLIM FRAME increases the visible light surface, integrates the panel with a clean look (no visible screws), and reduces overall thickness to sit flush with the ceiling. Includes a 5-year warranty. Available in neutral white 4000K and cool white 5700K.
Durable and Efficient Components

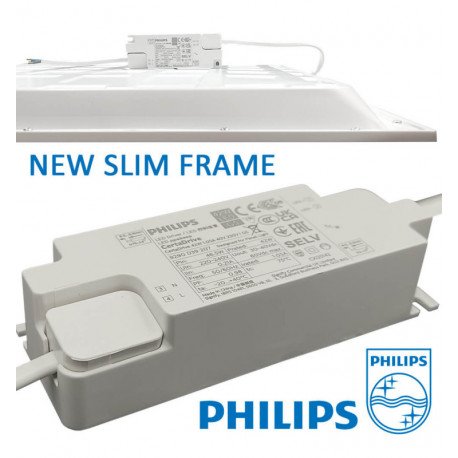

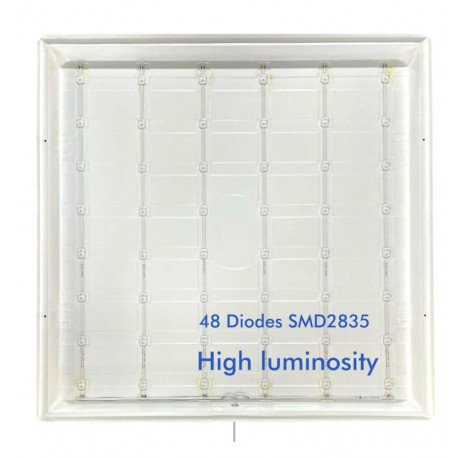

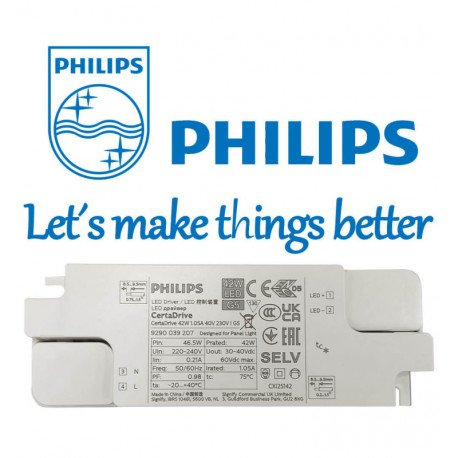

Constructed using aluminum and ABS, this LED panel ensures both strength and lightweight design, enhancing installation ease and durability. The panel utilizes SMD 2835 LEDs coupled with a Philips driver to maintain consistent light output and quality.
The impact protection rating of IK05 provides resilience against small mechanical impacts, supporting long-term use in various indoor environments.
Performance and Reliability
Designed for reliable operation, the panel supports a voltage range from 220V to 265V and frequency options of 50/60 Hz, making it compatible with diverse electrical systems.
It features a rapid startup time of 0.2 seconds and withstands up to 100,000 switching cycles, ensuring longevity and quick response for daily use. Operating temperatures between -20 to 55°C allow for stable performance in typical indoor conditions.
Lighting Characteristics
With a luminous efficacy of 100 lm/W and an estimated light output of 4000 lm at 40W power, this panel delivers bright and uniform lighting.

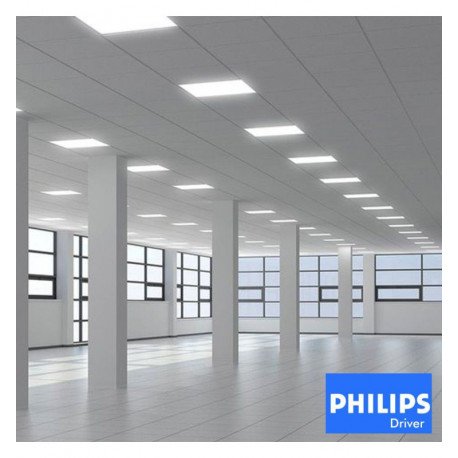

The beam angle of 120° provides wide and even light distribution suitable for offices, retail spaces, and other commercial settings.
Available in two color temperature options, 4000K (neutral white) and 5700K (cool white), it caters to different ambiance preferences and lighting needs.
Frequently Asked Questions
What color temperatures are available for this LED panel?
The panel is available in neutral white at 4000K and cool white at 5700K to suit various lighting atmospheres.
Can this panel be used in environments with fluctuating voltage?
Yes, it operates within a voltage range of 220V to 265V, making it adaptable to common voltage variations.
How long does the LED panel last in terms of switching cycles?
It supports up to 100,000 switching cycles, providing durable and reliable operation over time.
View technical specifications Hide technical specifications
Certificates
CE-RoSH-TÜV-ENEC
IP Rating
Front: IP40 - Driver: IP20
Construction Material
Aluminum + ABS
Warranty years
5

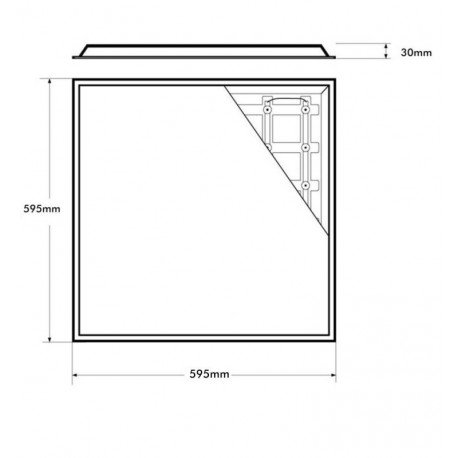

Dimensions (mm)
595X595mmH30mm
Rated Power
40W
Rated Voltage
220-265v
CRI - Color Rendering Index
+80
Energy Class (2021-EU-2019/2015)
A+
LED Diode Efficacy (Lm/W)
140 Lm/W

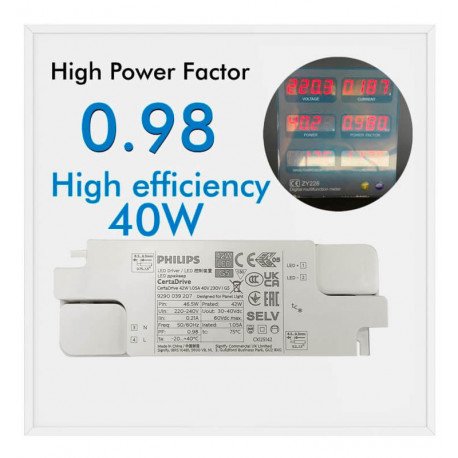

Power Factor (PF)
0,98
Operating Frequency (Hz)
50/60Hz
Temperature Range (ºC)
-20°C ~ +55°C
Switching Cycles
100.000
Start-Up Time (s)
0,2s
Impact Protection (IK)
IK05
Energy Class (2023 - EU-2019/2015)
E
Light Temperature
4000K-5700K
Luminous Flux-Lm
4000
LED Type
SMD 2835
Beam Angle (º)
120º
Luminous Efficacy (Lm/W)
100Lm/W
Driver Included
Philips Driver
