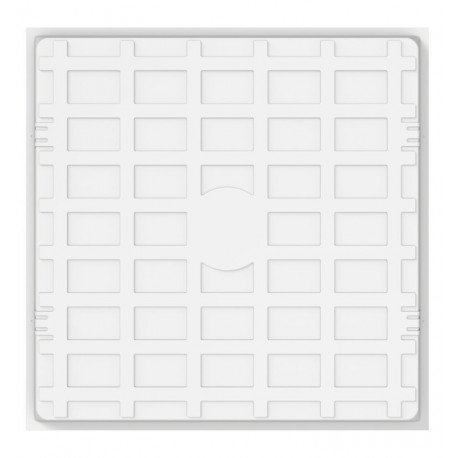

LED Panel 60x60 40W DALI-2 Dimmable Programmable (Pack of 10)

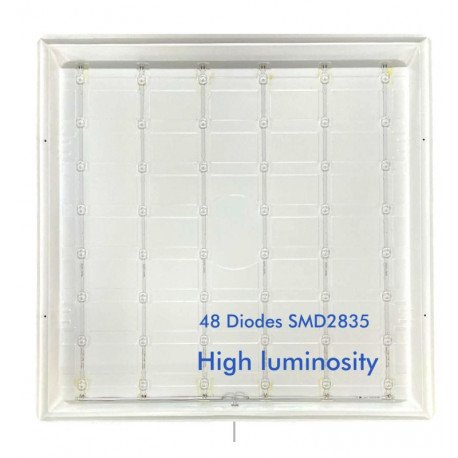

Pack of 10 LED Panel 60x60 40W with DALI-2 dimming and programming, featuring the MOSO U5 Series driver. Each panel includes backlight technology for consistent, adaptable illumination, suitable for both residential and professional environments. DALI-2 dimming lets you adjust power from 6W to 40W, while TimingDIM scheduling enables automatic on/off based on set times. ENEC25, CE and RoHS certifications included.

Durability and Performance

Constructed from robust steel and polycarbonate, these LED panels provide impact resistance rated at IK05, ensuring durability in typical indoor environments. Operating reliably between -20°C and 55°C, they withstand various temperature conditions without compromising performance.

Lighting Quality and Efficiency

With a color rendering index greater than 80, the panels offer good color accuracy suitable for many applications. The panels emit light through 120° beam angle optics, providing wide, even illumination. Their declared luminaire efficacy is 120 lm/W, estimating an output flux of 4800 lm at 40W power consumption.

Electrical Characteristics and Longevity

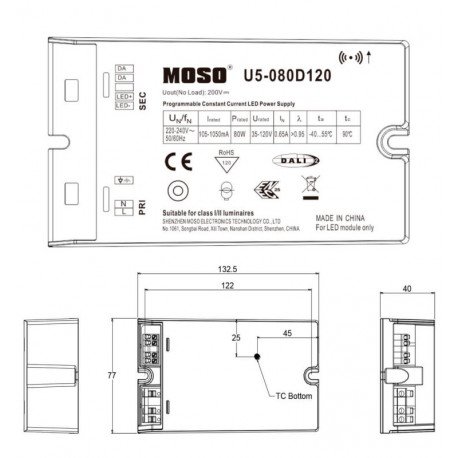

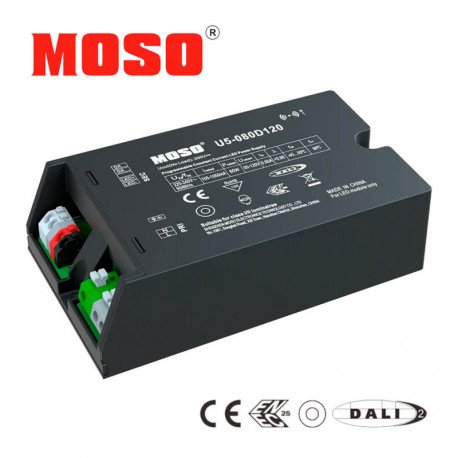

Powered within a voltage range of 220-265 V and compatible with both 50 Hz and 60 Hz frequencies, the lighting solutions include a high power factor of 0.94 to optimize electrical performance. The MOSO U5 Series and Philips driver system supports fast startup times of 0.2 seconds and an extensive switching cycle rating of 100,000 cycles, promoting long service life when combined with proper use.

Customization and Control Options

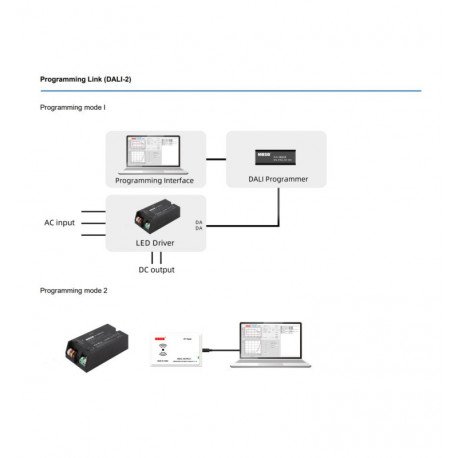

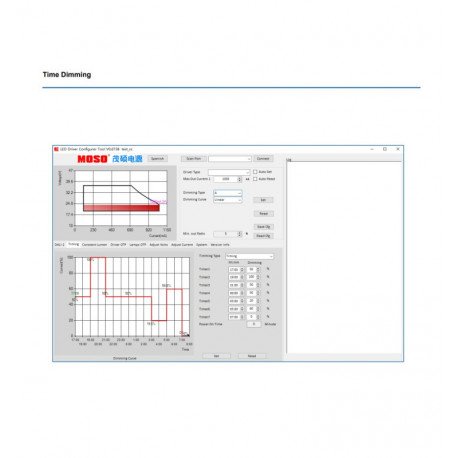

Available in neutral white (4000 K) and cool white (5700 K), with multiple dimming and programming options including TimingDIM and DALI-2 DIM, these panels offer flexibility to adapt light output and schedules according to user needs. This supports energy management and customized lighting scenarios for diverse spaces.

Frequently Asked Questions

What color temperatures are available for this product?

This LED panel pack is available in neutral white (4000 K) and cool white (5700 K) options.

Can these panels be dimmed?

Yes, they support DALI-2 dimming and TimingDIM programming for adjustable and scheduled lighting control.

What is the estimated luminous flux for each panel?

Each 40W panel is estimated to deliver approximately 4800 lm of light output.

What kind of drivers are used in these panels?

The panels use Philips and MOSO U5 Series drivers that support dimming and programming functions.
