LED Panel 60x60 Slim Frame 40W 1-10V (Pack 10)
Certificates
CE-RoSH-TÜV-ENEC
Construction Material
Steel +PC
Dimensions (mm)
595X595mmH30mm
Rated Power
40W
Beam Angle (º)
120º
New product
This pack of 10 LED Panels 60x60 cm with 40W power features a slim steel and PC frame design, delivering an estimated 4800 lm each with 120 lm/W efficacy. Equipped with SMD 2835 LEDs, 1-10V dimmable Philips Xitanium drivers, and a color rendering index over 80, these panels offer reliable, flicker-free lighting in neutral or cool white tone, suitable for various installations.
This product is no longer in stock
More info

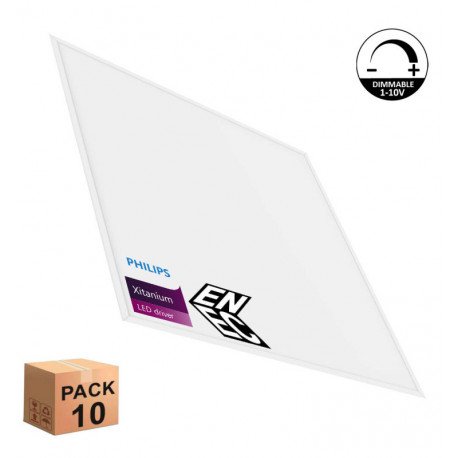

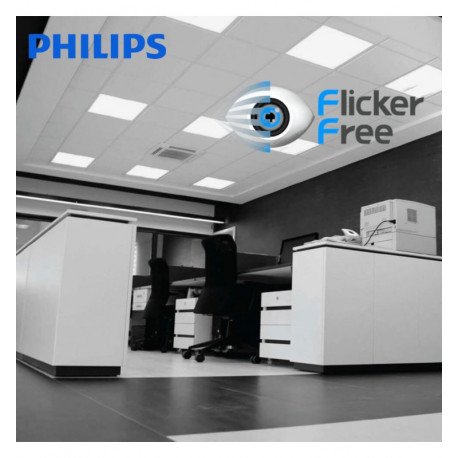

PACK 10 LED Panel 60x60 SLIM FRAME 40W with Philips Xitanium 1-10V dimming driver. A nearly invisible frame panel with an ultra-thin design (595x595 mm) that maximizes the illuminated surface and improves integration in any space. Includes Philips Xitanium driver, flicker-free technology, and ENEC05 certification for reliable, long-lasting lighting. Ideal for installations where a clean finish, high performance, and 1-10V dimming are required.
Robust and Versatile Construction

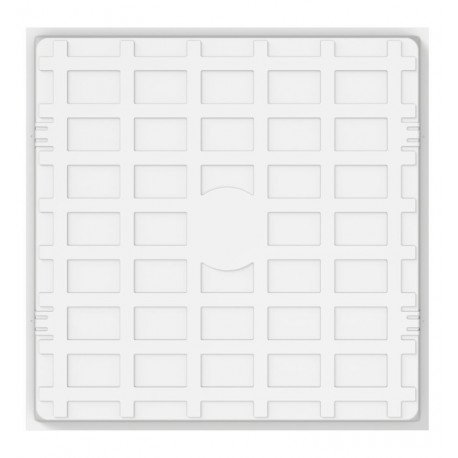

The LED Panel features a durable construction combining steel and polycarbonate materials, ensuring a sturdy yet lightweight frame. Its compact slim frame design with a 595x595 mm size fits seamlessly into suspended ceilings or flat surfaces, providing a minimalist aesthetic that enhances any environment.
Performance and Electrical Features
These panels operate effectively within a voltage range of 220–265 V and support frequencies of 50 and 60 Hz. The power factor of 0.98 minimizes reactive power and improves energy efficiency in electrical installations. An impact protection rating of IK05 offers resistance to minor external impacts, enhancing panel durability.
Lighting Quality and Options

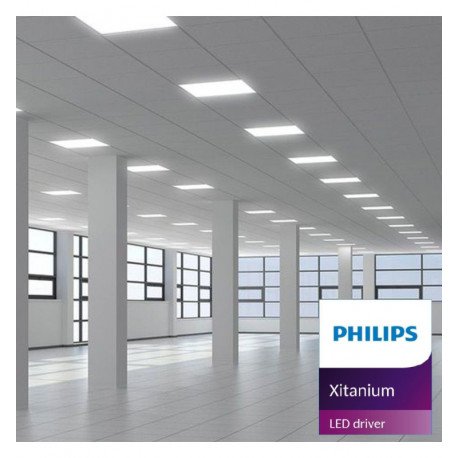

With a color rendering index (CRI) greater than 80, the panels provide accurate color representation suitable for offices, retail, and commercial spaces. They are offered in two correlated color temperatures: Neutral White (4000 K) and Cool White (5700 K), allowing selection based on the desired ambiance and application lighting requirements.
Durability and Operation
Designed to operate reliably between -20 °C and 55 °C ambient temperatures, these panels withstand various indoor environmental conditions. They support up to 100000 switching cycles and have a rapid startup time of 0.2 seconds, ensuring quick reach to full brightness without flicker, supported by flicker-free technology integrated in the driver.
Frequently Asked Questions
What dimming method is supported by these LED panels?
They use a Philips Xitanium 1-10V dimmable driver, allowing smooth brightness adjustment through standard 1-10V dimming controls.
Can the panels be used in cold environments?
Yes, they reliably operate down to -20 °C, making them suitable for indoor spaces with cooler temperatures.
What is the purpose of the IK05 rating?
The IK05 impact protection rating indicates the panels are resistant to small impacts, protecting the luminaire surface in typical indoor settings.
How quickly do these LED panels reach full brightness?
They have a startup time of 0.2 seconds, providing near-instant full illumination without flickering.
View technical specifications Hide technical specifications
Certificates
CE-RoSH-TÜV-ENEC
IP Rating
Front: IP40 - Driver: IP20
Construction Material
Steel +PC
Warranty years
5

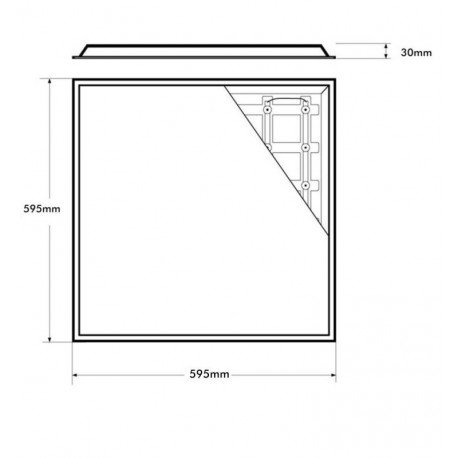

Dimensions (mm)
595X595mmH30mm
Rated Power
40W
Rated Voltage
220-265v
CRI - Color Rendering Index
+80
Energy Class (2021-EU-2019/2015)
A+
LED Diode Efficacy (Lm/W)
140 Lm/W
Power Factor (PF)
0,98
Operating Frequency (Hz)
50/60Hz
Temperature Range (ºC)
-20°C ~ +55°C
Switching Cycles
100.000
Start-Up Time (s)
0,2s
Impact Protection (IK)
IK05
Energy Class (2023 - EU-2019/2015)
E
Light Temperature
4000K-5700K
Luminous Flux-Lm
4800

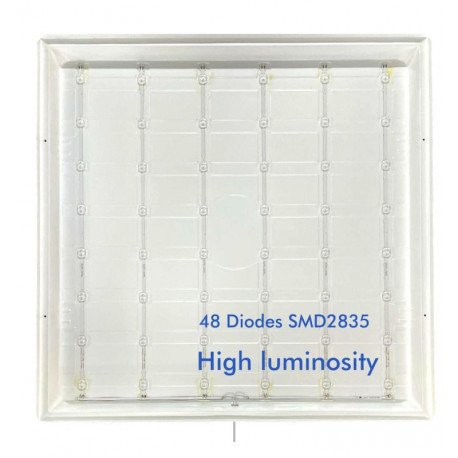

LED Type
SMD 2835
Beam Angle (º)
120º
Luminous Efficacy (Lm/W)
120 Lm/W
Driver Included
Philips Xitanium - Dimmable 1-10V Driver
