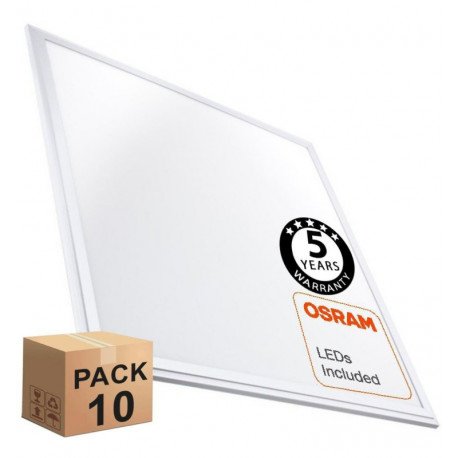

LED Panel 60x60 Multivatio 48W-40W-36W-24W OSRAM (Pack 10)
New product
613 Items
Data sheet
| Certificates | CE, CMIM, RoHS |
| IP Rating | IP44 |
| Construction Material | Aluminum +PC |
| Warranty years | 5 |

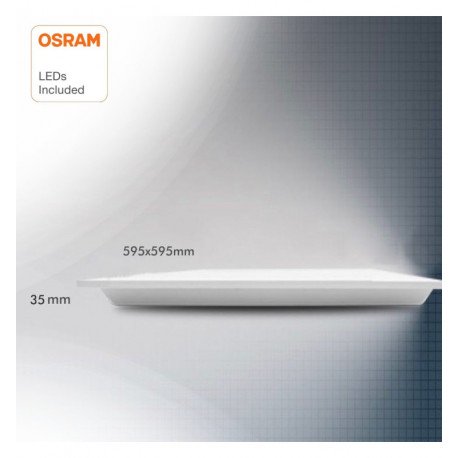

| Dimensions (mm) | 595x595 |
| Rated Power | 48W |
| Rated Voltage | 175-265V |
| CRI - Color Rendering Index | 82 |
| Energy Class (2021-EU-2019/2015) | A+ |
| LED Diode Efficacy (Lm/W) | 160 Lm/w |
| Estimated LED Diode Life (H) | 50.000 |
| Power Factor (PF) | 0,95 |
| Operating Frequency (Hz) | 50/60Hz |
| Temperature Range (ºC) | -20°C ~ +55°C |
| Switching Cycles | 100.000 |
| Start-Up Time (s) | 0,2s |
| Impact Protection (IK) | IK05 |
| Energy Class (2023 - EU-2019/2015) | F |
| Light Temperature | 4000K - 5700K |

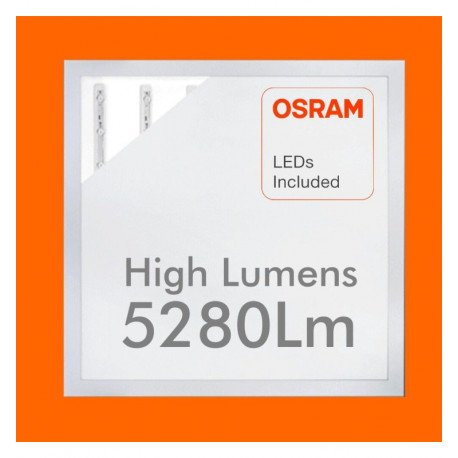

| Luminous Flux-Lm | 5280 |
| LED Type | SMD 2835 OSRAM CHIP |

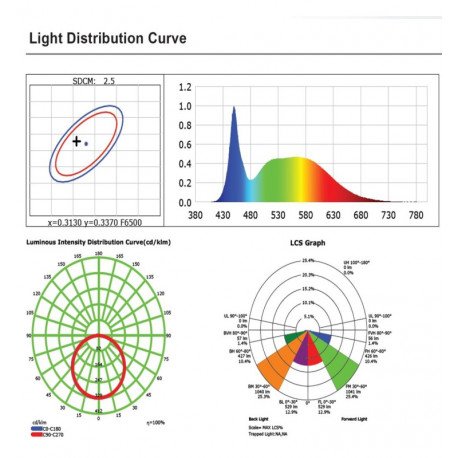

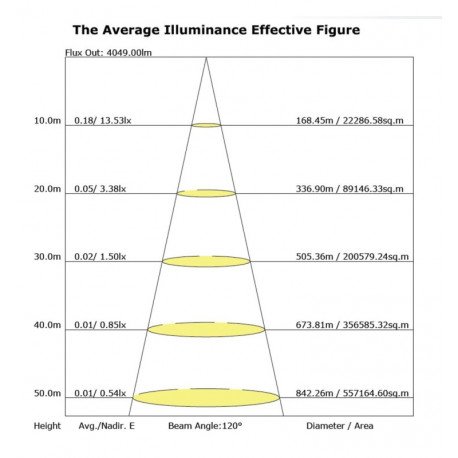

| Beam Angle (º) | 120º |
| Luminous Efficacy (Lm/W) | 110Lm/W |

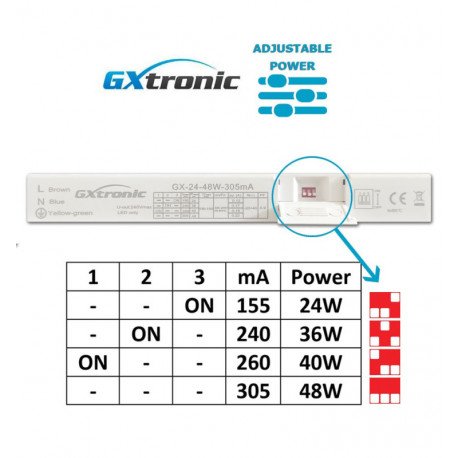

| Additional Information | Selectable Power: 48W - 40W - 36W - 24W |

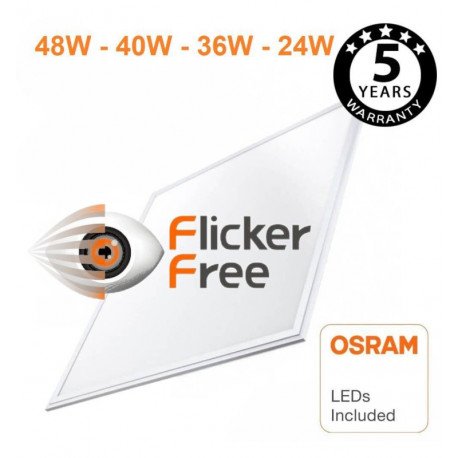

| Driver Included | GXtronic Driver - No Flick |
