LED Panel 60x60 40W 4000lm Slim Frame Pack of 10

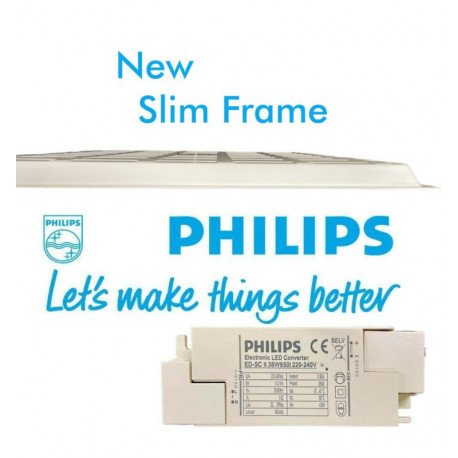

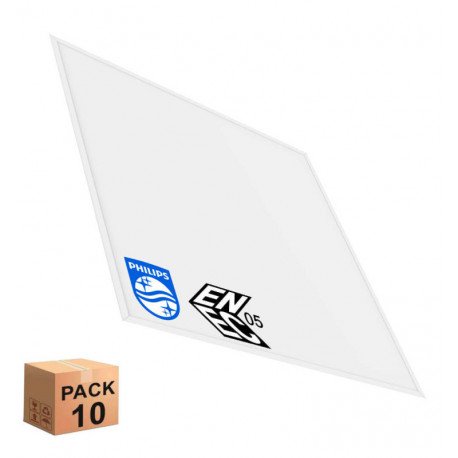

PACK 10 LED Panel 60x60 SLIM FRAME 40W with Philips driver. Upgrade the look of your spaces with an ultra-thin panel made of aluminum, featuring a finish with no visible frame for a clean, elegant appearance and a larger illuminated surface. Ideal for professional installations, with a Philips driver, no flicker, ENEC certification, and a 5-year warranty. The SLIM FRAME design reduces the frame size to increase the lit perimeter and lowers the product height by removing the frame fixing screws.

Design and Construction

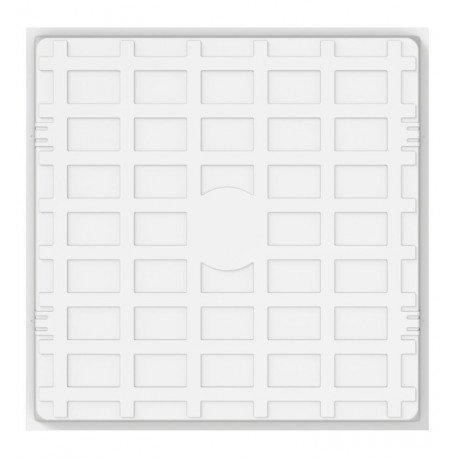

The panels feature a slim aluminum and ABS construction that ensures durability and a lightweight structure. The minimal frame enhances the aesthetic appeal by maximizing the illuminated surface area and providing a modern, sleek appearance suitable for various professional environments.

Optical Performance

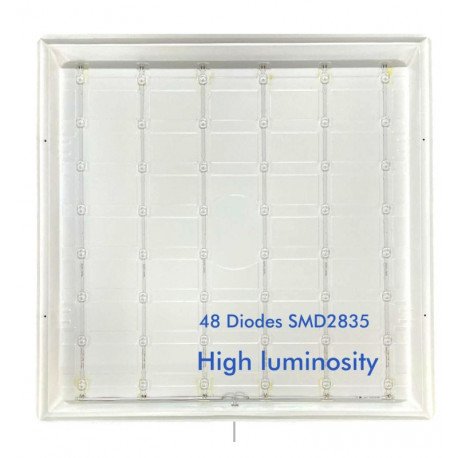

Each panel delivers an estimated luminous flux of 4000 lm with an efficacy of 100 lm/W, using high-quality SMD 2835 LEDs. A wide beam angle of 120° ensures uniform light distribution, with selectable color temperatures of neutral white (4000K) and cool white (5700K) to meet different ambient lighting needs.

Electrical and Operational Features

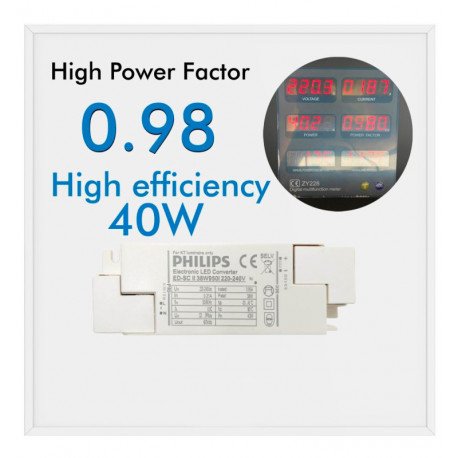

Powered at 40W, the panels operate efficiently within a voltage range of 220 to 265 V and frequency options of 50 or 60 Hz. The Philips driver guarantees a high power factor of 0.98, rapid startup time of 0.2 seconds, and supports up to 100,000 switching cycles. The panels maintain reliable performance across an ambient temperature range from -20 to 55°C.

Durability and Protection

An IK05 impact protection rating offers enhanced resistance to mechanical impacts, increasing product reliability in demanding environments. The panels' robust design contributes to long-term stable operation, accompanied by a 5-year warranty.

Frequently Asked Questions

Can I choose different color temperatures for this panel?

Yes, you can select either neutral white (4000K) or cool white (5700K) when ordering.

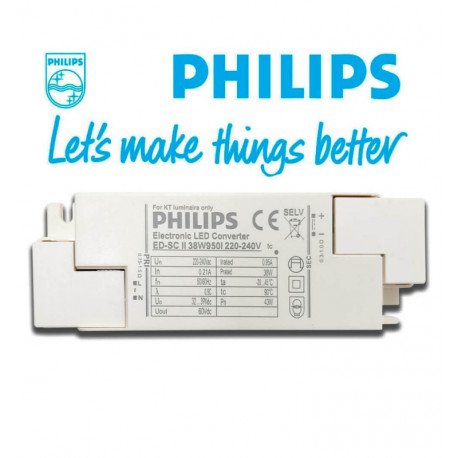

What type of driver is used in these panels?

They use a Philips driver, known for reliability and efficient performance.

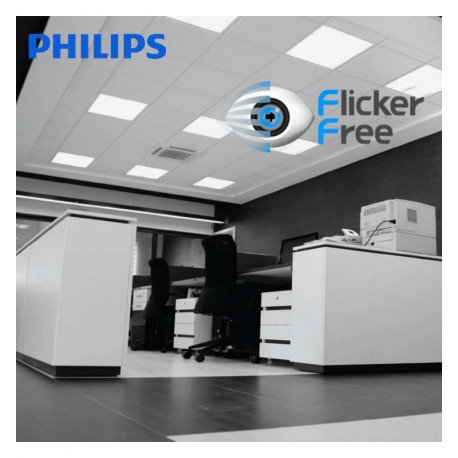

Is there any flicker with these LED panels?

No flicker is specified; the panels are designed for flicker-free operation.

What protection does the panel have against impacts?

These panels have an IK05 rating for impact resistance, providing moderate protection against mechanical shocks.
