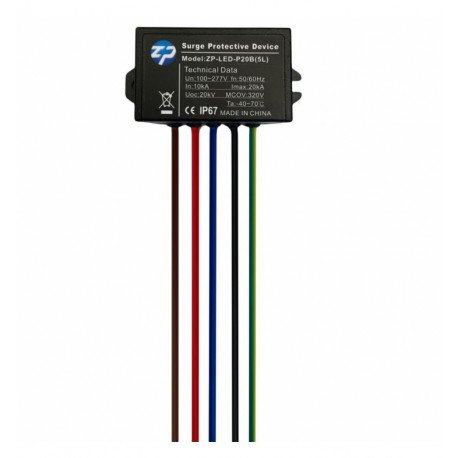

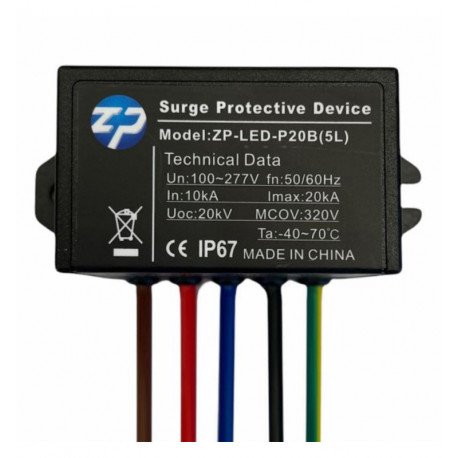

LED High Bay Surge Protector 20kV IP67 (Series)
LED High Bay Surge Protector 20kV IP67 (Series)
LED High Bay Surge Protector 20kV IP67 (Series)
LED High Bay Surge Protector 20kV IP67 (Series)
LED High Bay Surge Protector 20kV IP67 (Series)
LED High Bay Surge Protector 20kV IP67 (Series)
LED High Bay Surge Protector 20kV IP67 (Series)

LED High Bay Surge Protector 20kV IP67 (Series)

LED-00253

Certificates CE - ROHS-TÜV
Construction Material Thermoplastic

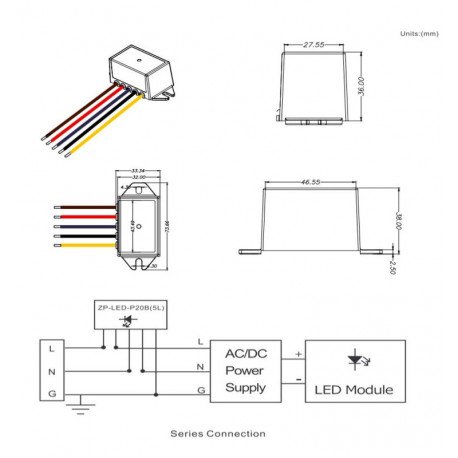

Dimensions (mm) L64×W22×H30mm

New product

IP67 series surge protector against transient surges up to 20kV (20,000 V) to protect LED equipment and luminaires.

More details

67 Items

13,43 € tax incl.

Métodos de pago

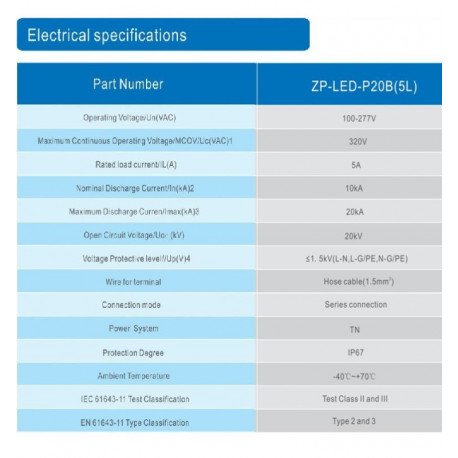

Data sheet

Certificates CE - ROHS-TÜV
IP Rating IP67-Exterior
Construction Material Thermoplastic
Warranty years 3
Dimensions (mm) L64×W22×H30mm
Rated Voltage 110-277V
Operating Frequency (Hz) 50/60Hz
Temperature Range (ºC) -40ºC ~ +85ºC
Additional Information Max. 20.000v (20Kv)

More info

Transient surge protector up to 20kV for series installation. When electronic components operate in lighting systems, transient mains voltage spikes can occur due to inductive switching, atmospheric discharges, or induced voltages in parallel cables. This protection module reduces overvoltage at the connection terminals, routing any residual voltage to an appropriate level based on the discharge current, helping to secure your equipment and LED luminaires.
