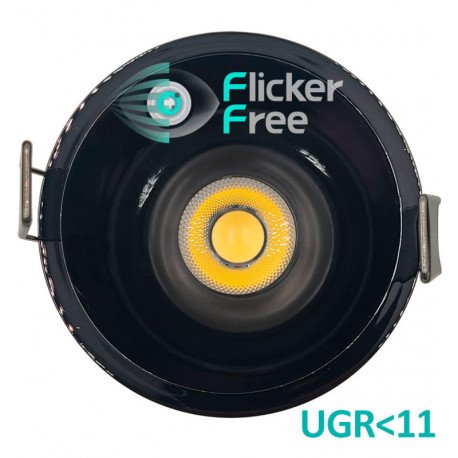

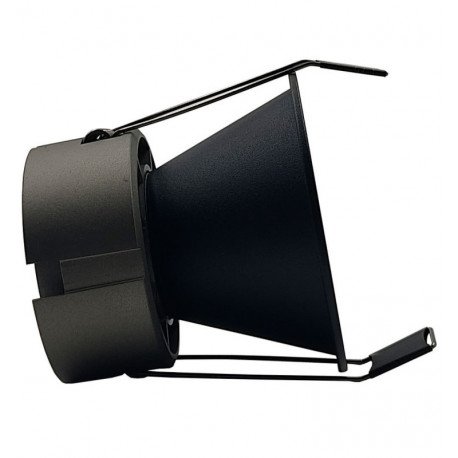

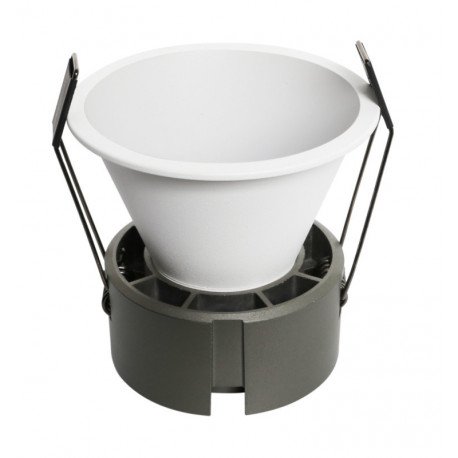

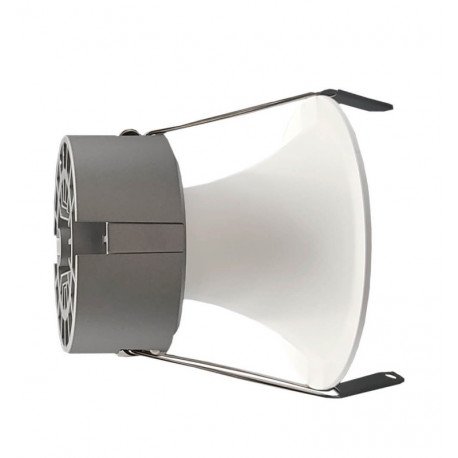

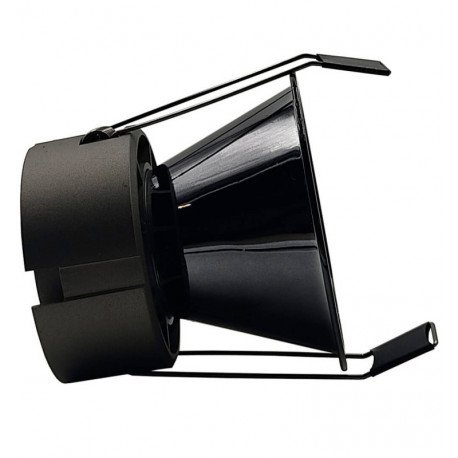

LED Downlight Recessed 6W-9W-12W UGR11 3CCT CRI+92
Certificates
CE, CMIM, RoHS
Construction Material
Aluminum
Dimensions (mm)
Ø88/x78mm
Rated Power
12w
Beam Angle (º)
24º
Ceiling Cut (mm)
Ø 75mm
New product
The LUMIS recessed LED downlight is a customizable lighting solution offering selectable power from 6W to 12W and three color temperatures (3000K, 4000K, 5700K). Boasting a UGR11 rating to reduce glare and CRI+92 for excellent color accuracy, it provides up to 1320 lm with high efficiency and multiple front color options for versatile installation.
207 Items
More info

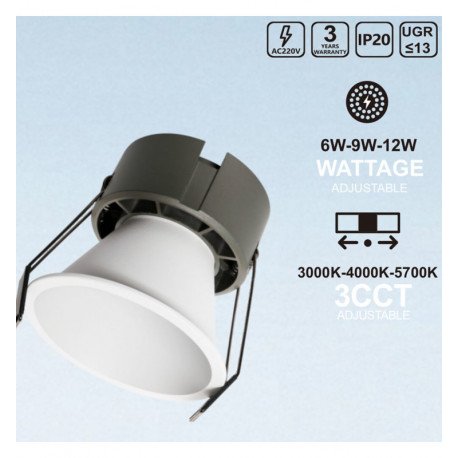

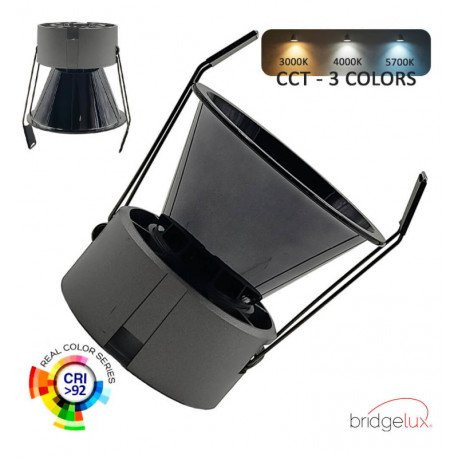

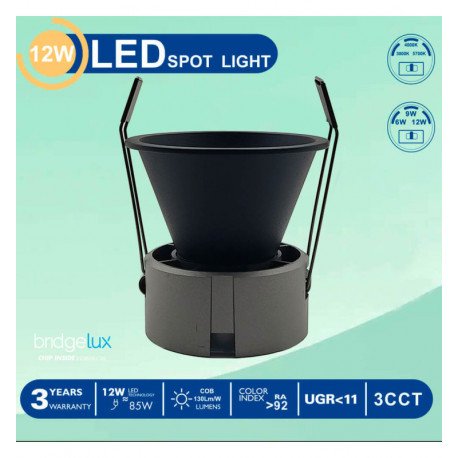

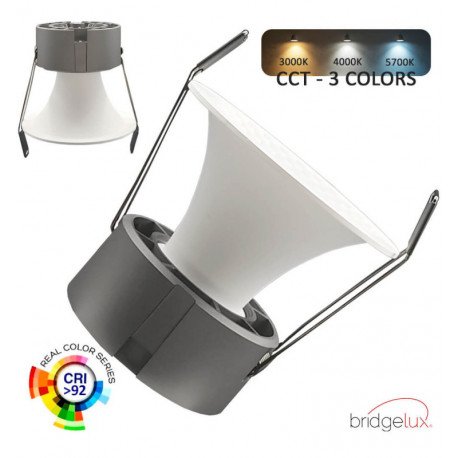

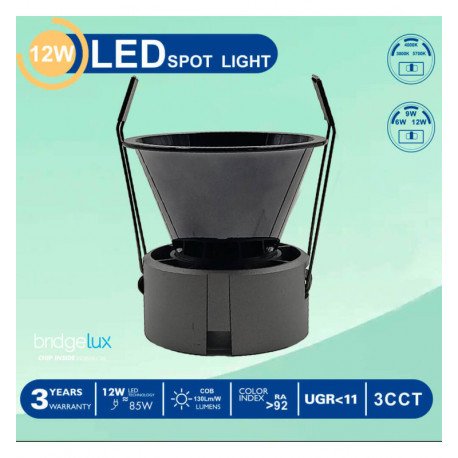

The LUMIS recessed LED downlight offers selectable power of 6W, 9W and 12W, designed to tailor the lighting to each space. It features a Bridgelux chip with high efficiency (130 lm/W) and 3CCT technology, letting you choose between 3000K, 4000K and 5700K depending on the desired atmosphere. Its UGR11 rating helps minimize glare, while CRI+92 delivers superior color rendering for more faithful color perception. The interchangeable front also makes maintenance and fixture adaptation easier.
Durability and Operating Conditions
Constructed with aluminum, this downlight ensures robust build quality and effective heat dissipation. It operates reliably in temperatures ranging from -20°C to 55°C, making it suitable for typical indoor environments.
Its IP20 rating indicates protection against solid objects over 12 mm but does not provide water resistance, so it is best suited for dry interior spaces.
Performance and Longevity

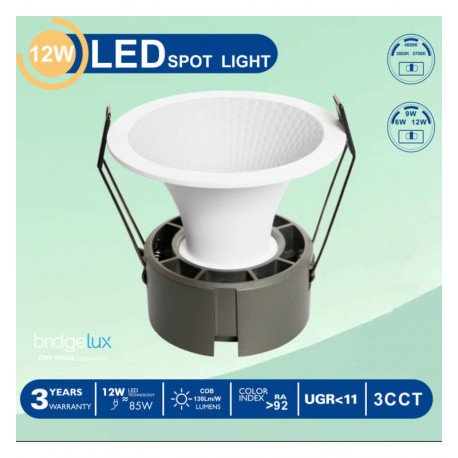

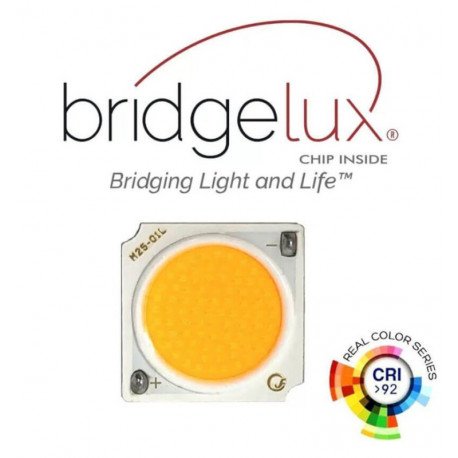

Equipped with a high-quality Bridgelux chip (2235DS-C30), the luminaire delivers a luminous efficacy of approximately 110 lm/W, estimated to produce up to 1320 lm at 12 W power.
The integrated driver supports both 50 Hz and 60 Hz frequencies and allows for 100,000 switching cycles, ensuring long-term reliable operation. With a rapid startup time of 0.2 seconds, it reaches full brightness almost instantly.
Design and Customization Options

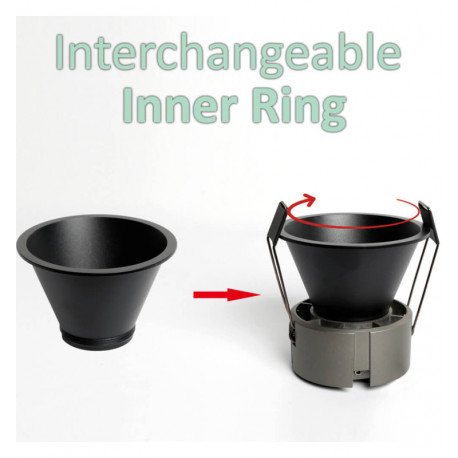

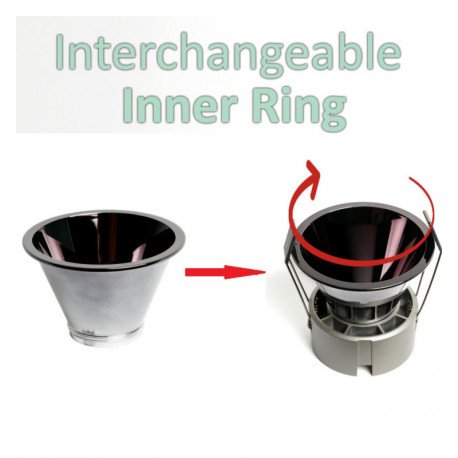

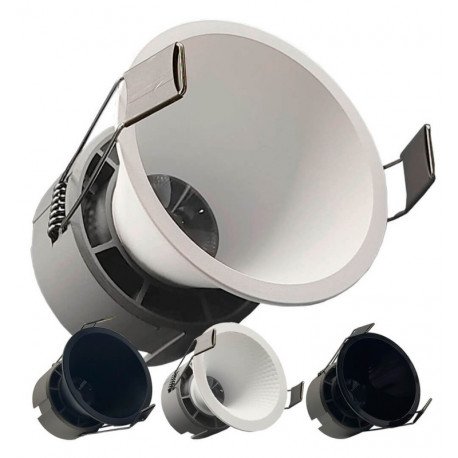

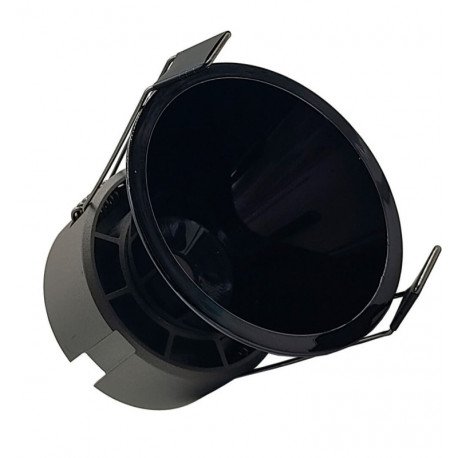

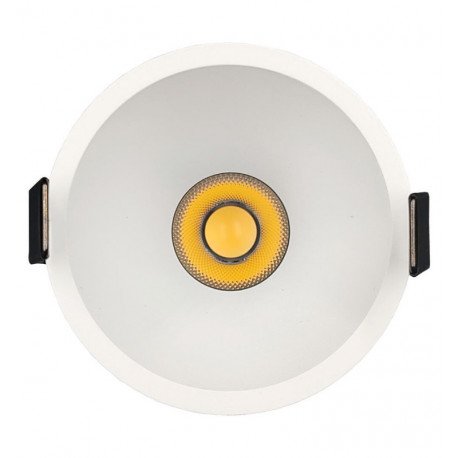

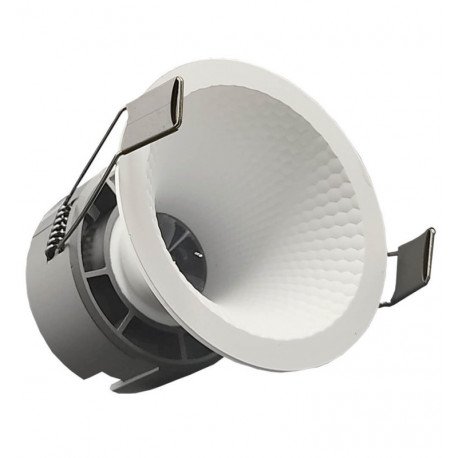

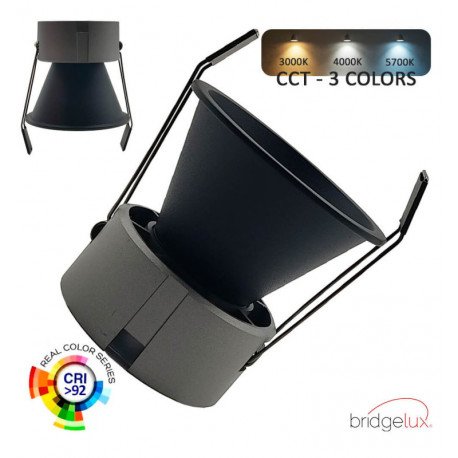

The downlight includes interchangeable front options featuring White, Mercury Black, Matte Black, and White Rhombus finishes to match various interior aesthetics.

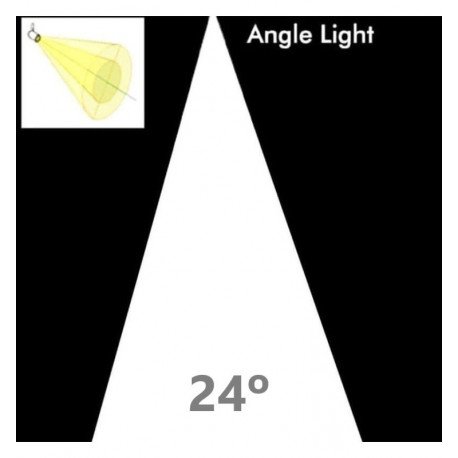

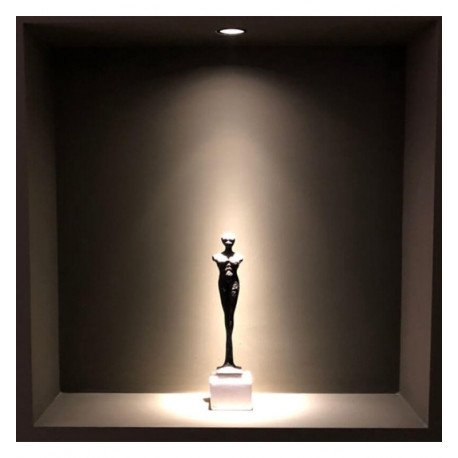

Its 24° beam angle provides focused illumination suitable for accent or general lighting purposes, adaptable to different space requirements.
Frequently Asked Questions
What are the selectable power options for this downlight?
The downlight offers selectable nominal power levels of 6W, 9W, and 12W, allowing adjustment to match lighting needs and energy consumption preferences.
Can I change the color temperature after installation?

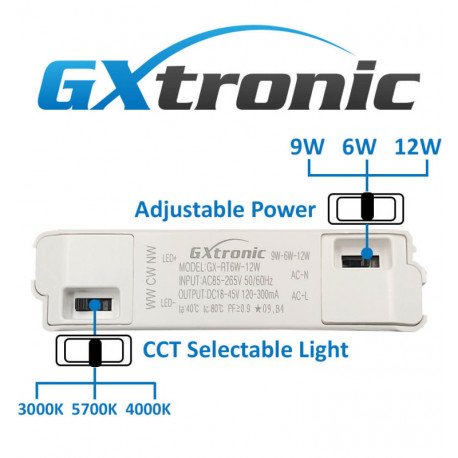

Yes, the 3CCT technology enables you to select the desired color temperature—3000K, 4000K, or 5700K—during installation, but changes require access to the fixture controls.
Is this downlight suitable for damp or outdoor locations?
No, with an IP20 ingress protection rating, it is intended only for dry indoor environments and does not provide protection against moisture or water.
What maintenance features does the downlight have?

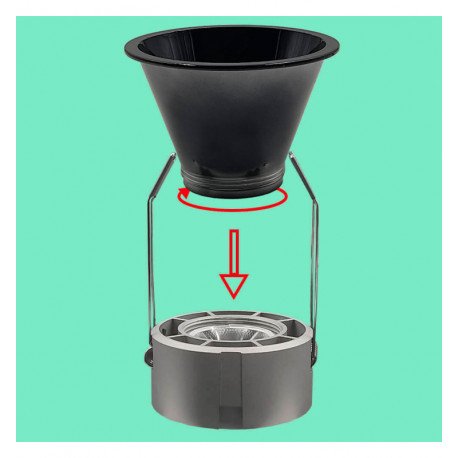

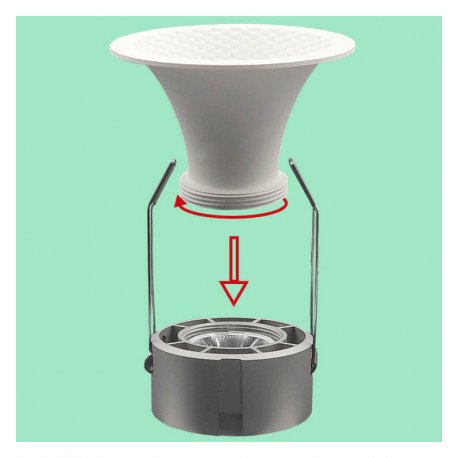

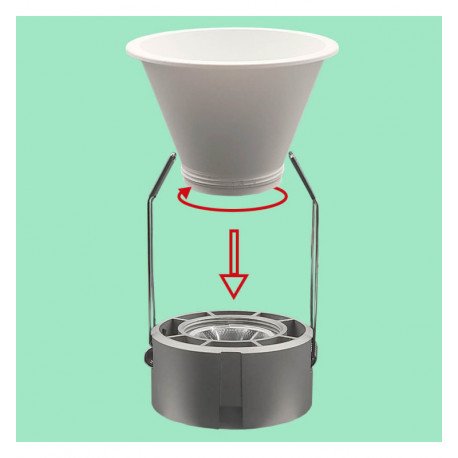

It features an interchangeable front cover design, making maintenance and aesthetic updates easier without needing to replace the entire fixture.
View technical specifications Hide technical specifications
Certificates
CE, CMIM, RoHS
IP Rating
IP20
Construction Material
Aluminum
Warranty years
3

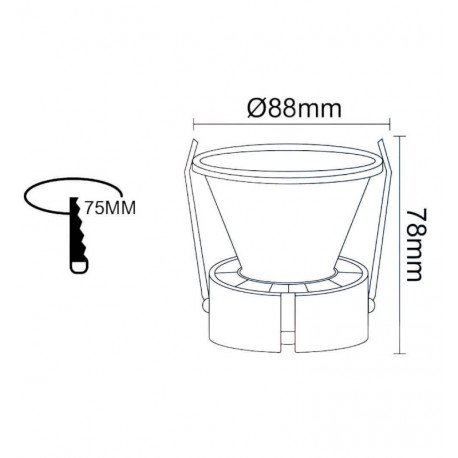

Dimensions (mm)
Ø88/x78mm
Rated Power
12w
Rated Voltage
85V-265V
CRI - Color Rendering Index
92
Energy Class (2021-EU-2019/2015)
A+
LED Diode Efficacy (Lm/W)
130Lm/W
Estimated LED Diode Life (H)
20.000
Operating Frequency (Hz)
50/60Hz
Temperature Range (ºC)
-20°C ~ +55°C
Switching Cycles
100.000
Start-Up Time (s)
0,2s
Energy Class (2023 - EU-2019/2015)
F
Light Temperature
3CCT SELECT 3000K-4000K-5700K
Luminous Flux-Lm
1320 Lm
LED Type
Bridgelux Chip inside 2235DS-C30
Beam Angle (º)
24º
Luminous Efficacy (Lm/W)
110 Lm/W
Driver Included
SI
Ceiling Cut (mm)
Ø 75mm

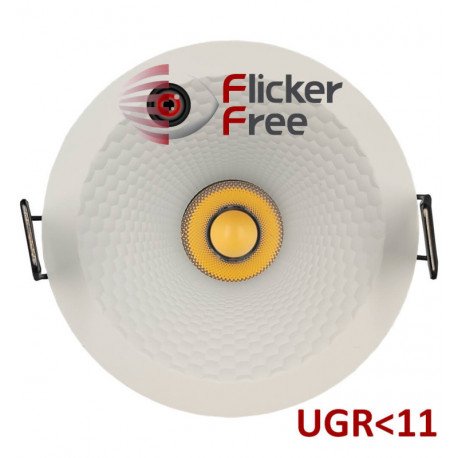

Glare Index (UGR)
11
Units per Masterbox
20
