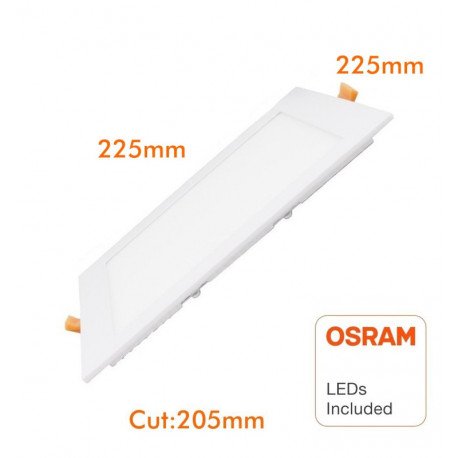

LED Slim Recessed Panel 20W OSRAM DURIS E
LED-00102
Certificates
CE - ROHS
Construction Material
Aluminum +PC
Dimensions (mm)
225mm
Rated Power
20w
Beam Angle (º)
120º
Ceiling Cut (mm)
205mm
Dimmable
NO
New product
The LED Slim Recessed Panel 20W OSRAM DURIS E features a slim aluminum and PC construction with IP44 protection, delivering 2200 lm at over 110 lm/W efficacy. It offers high color rendering above CRI 80 and selectable CCT options of 3000K, 4000K, and 6000K, with a quick 0.2s startup and reliable SI driver.
336 Items
More info

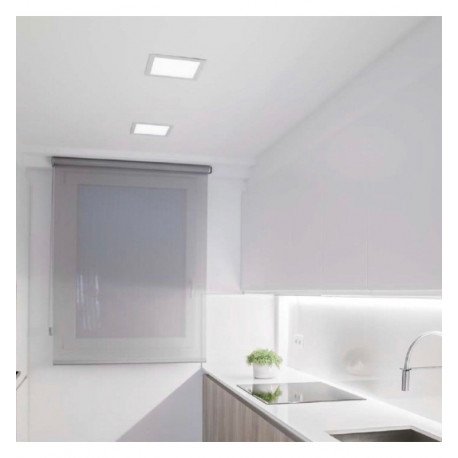

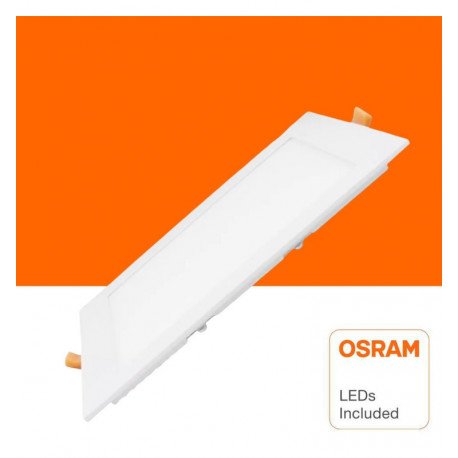

The OSRAM DURIS E 2835 LED Slim recessed square panel delivers 20W of power with a 120° opening angle for even illumination. Ideal for a wide range of commercial spaces as well as home or professional use. Made from aluminum to support durability, it provides a warm light tone and a high level of color rendering (high CRI). Slim LED downlights/panels feature instant on so you can benefit from the light right away. Designed for installation in low-depth surfaces and includes fixing tabs.
Durability and Environmental Resistance
Constructed from aluminum and polycarbonate, this panel ensures robust performance and resistance against dust and water splashes, complying with IP44 standards. Its operating temperature range from -20°C to 55°C allows stable use across diverse environments.
Performance and Efficiency
Delivering an estimated luminous flux of 2200 lm at a nominal power of 20W, this panel achieves a luminaire efficacy of 110 lm/W. The 120° beam angle distributes light evenly, ideal for commercial and residential lighting needs.
Quality and Reliability

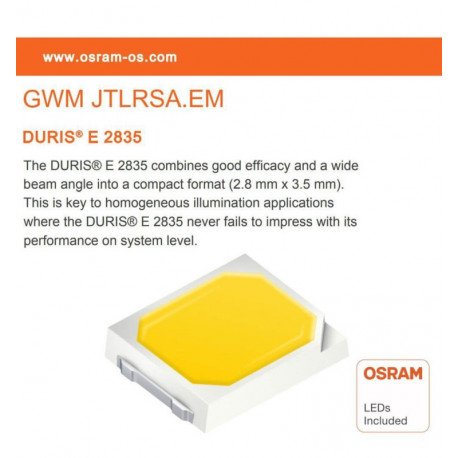

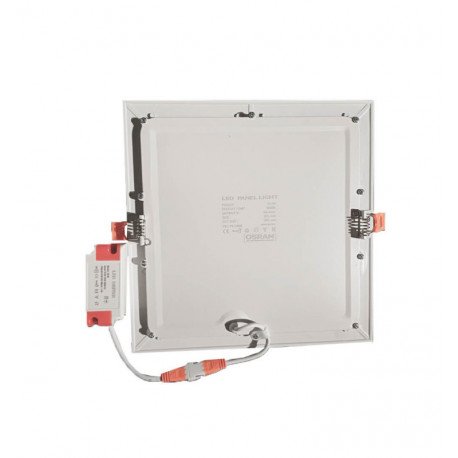

Equipped with OSRAM DURIS E SMD 2835 LEDs and an SI driver, the panel guarantees consistent lighting with a swift startup time of 0.2 seconds and a switching endurance rated for 100000 cycles.
Versatile Lighting Options
The panel offers multiple correlated color temperature settings at 3000K, 4000K, and 6000K, allowing customization from warm to cool white tones to suit different ambiance requirements.
Frequently Asked Questions
What mounting options are compatible with this recessed panel?
The panel is designed for recessed installation in low-depth surfaces and includes fixing tabs for secure placement.
Is the light instantly on when powered?
Yes, this panel features an instant-on function with a startup time of approximately 0.2 seconds.
Can it be used outdoors?
With an IP44 rating, the panel is protected against water splashes, making it suitable for some outdoor covered environments but not for full immersion or heavy exposure.
View technical specifications Hide technical specifications
Certificates
CE - ROHS
IP Rating
IP44
Construction Material
Aluminum +PC
Warranty years
3
Dimensions (mm)
225mm
Rated Power
20w
Rated Voltage
85V-265V
CRI - Color Rendering Index
+80
Energy Class (2021-EU-2019/2015)
A+
LED Diode Efficacy (Lm/W)
140 Lm/W
Estimated LED Diode Life (H)
40.000
Operating Frequency (Hz)
50/60Hz
Temperature Range (ºC)
-20°C ~ +55°C
Switching Cycles
100.000
Start-Up Time (s)
0,2s
Energy Class (2023 - EU-2019/2015)
F
Light Temperature
3000K - 4000K - 6000K
Luminous Flux-Lm
2200
LED Type
SMD 2835
Beam Angle (º)
120º
Luminous Efficacy (Lm/W)
110 Lm/W
Additional Information
Weight with box: 90g
Driver Included
SI
Ceiling Cut (mm)
205mm
Dimmable
NO
Glare Index (UGR)
17
