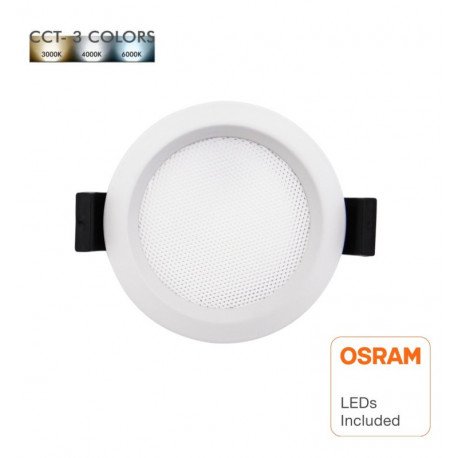

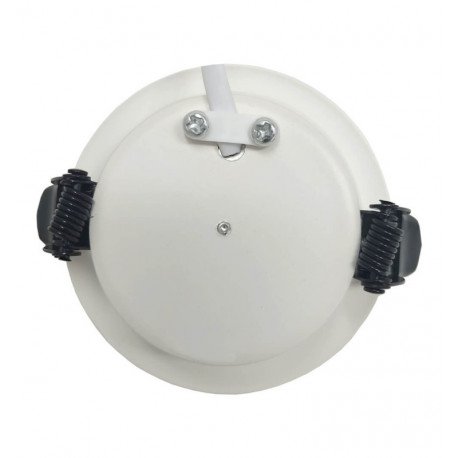

LED Downlight 12W Circular Recessed CCT UGR17

LED-00317

Certificates CE - ROHS
Construction Material Aluminum +PC

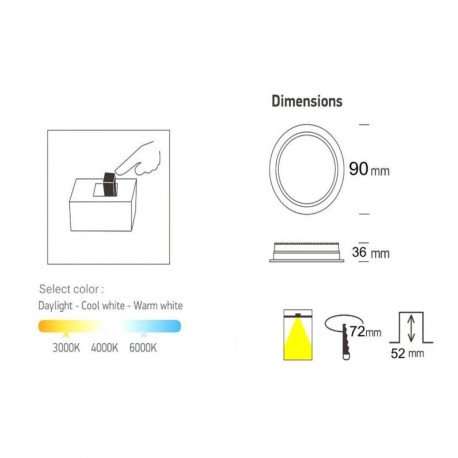

Dimensions (mm) Ø90mm * H36mm
Rated Power 12W-8W-5W
Beam Angle (º) 120º
Ceiling Cut (mm) Ø72mm

New product

This 12W circular recessed LED downlight features selectable color temperatures and a UGR17 rating for low glare. Equipped with SMD 2835 OSRAM CHIP LEDs and a GXTronic driver, it offers high efficiency (120 lm/W) and a wide 120° beam angle. IP44 rated, it's suitable for indoor spaces requiring customizable, comfortable lighting.

339 Items

Order now and receive it The day after tomorrow

12,15 € tax incl.

Métodos de pago

More info

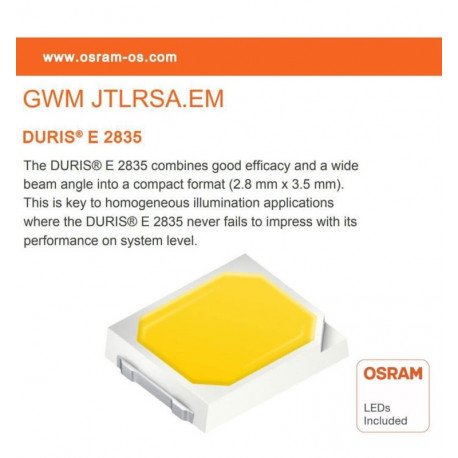

Recessed circular LED downlight (12W) with selectable color temperature (CCT), letting you choose between cool white, neutral white, or warm white to suit your space. Designed with UGR17 to help reduce glare, and featuring a 120° beam angle. It also includes driver power adjustment via a selector, for more precise, personalized lighting indoors. Ideal for replacing traditional spotlights, with high efficiency using SMD2835 OSRAM CHIP DURIS E 2835 technology, for over 80% savings.

Robust Construction and Durability

The downlight is constructed from a combination of aluminum and polycarbonate (PC), providing a sturdy yet lightweight fixture. Its IP44 rating ensures resistance against splashes and dust, making it reliable for various indoor environments.

Its built quality supports an operating temperature range from -20°C to 55°C, allowing stable performance under diverse ambient conditions.

Efficient and Long-lasting Operation

Featuring a GXTronic driver and high-quality SMD 2835 OSRAM LEDs, the fixture delivers an efficacy of 120 lm/W for bright and energy-efficient illumination.

The downlight benefits from an extremely fast startup time of 0.2 seconds, ensuring immediate full brightness.

It is designed for longevity, supported by a robust switching cycle rating of 100,000 cycles, minimizing maintenance needs.

Versatile Electrical Compatibility

The luminaire supports standard power frequencies of 50 and 60 Hz, compatible with common electrical systems worldwide.

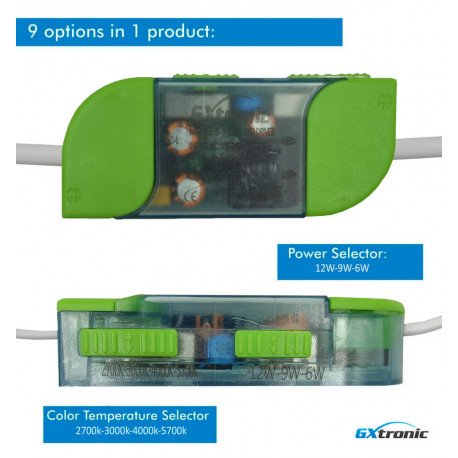

Driver power adjustment allows for customizable output, enhancing user control over lighting ambiance without compromising efficiency.

Frequently Asked Questions

What does the UGR17 rating mean?

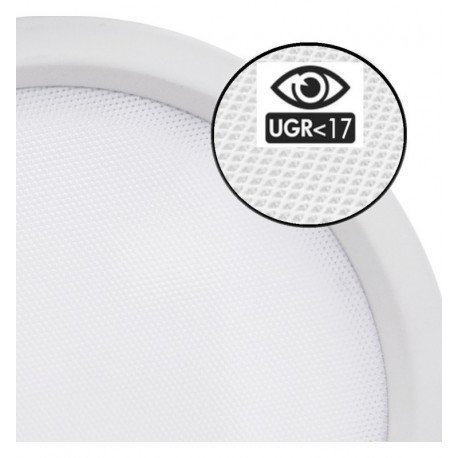

A UGR (Unified Glare Rating) of 17 indicates that the downlight is designed to minimize glare, providing comfortable lighting suitable for workspaces and other environments where visual comfort is important.

Can I select the color temperature of this downlight?

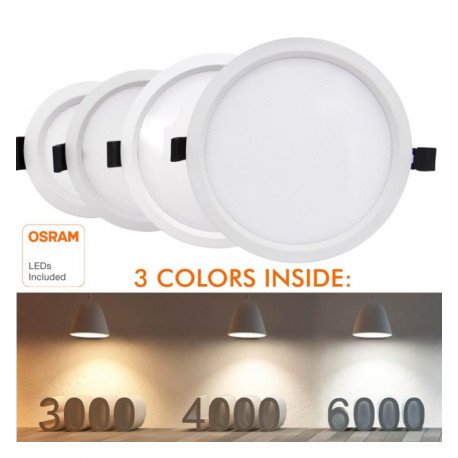

Yes, this downlight allows you to choose between cool white, neutral white, and warm white color temperatures to best suit your interior lighting needs.

Is this downlight suitable for humid environments?

With an IP44 rating, the downlight is protected against splashing water, making it suitable for indoor areas such as bathrooms or kitchens with moderate humidity.

View technical specifications Hide technical specifications
Certificates CE - ROHS
IP Rating IP44
Construction Material Aluminum +PC
Warranty years 3
Dimensions (mm) Ø90mm * H36mm
Rated Power 12W-8W-5W
Rated Voltage 85V-265V
CRI - Color Rendering Index 82
Energy Class (2021-EU-2019/2015) A+
LED Diode Efficacy (Lm/W) 140 Lm/W
Estimated LED Diode Life (H) 40.000
Operating Frequency (Hz) 50/60Hz
Temperature Range (ºC) -20°C ~ +55°C
Switching Cycles 100.000
Start-Up Time (s) 0,2s
Energy Class (2023 - EU-2019/2015) E
Light Temperature COLOR SELECTABLE: 3000K-4000K-6000K
Luminous Flux-Lm 1440
LED Type SMD 2835 OSRAM CHIP
Beam Angle (º) 120º
Luminous Efficacy (Lm/W) 120 Lm/W
Driver Included Driver GXTronic
Ceiling Cut (mm) Ø72mm
Glare Index (UGR) 17
