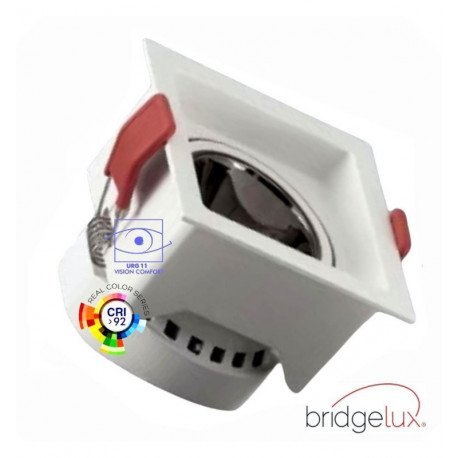

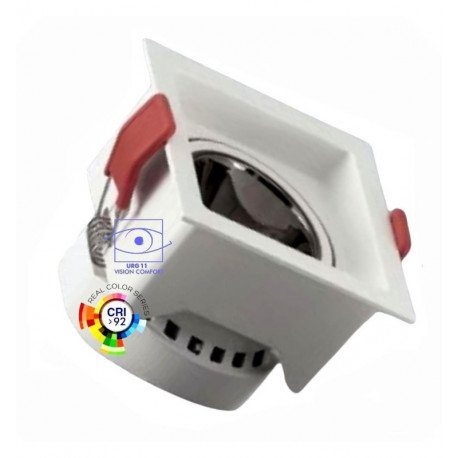

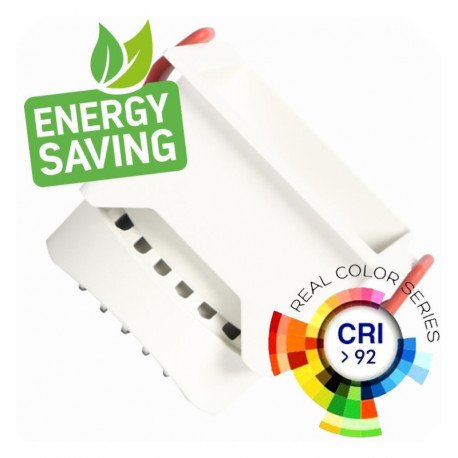

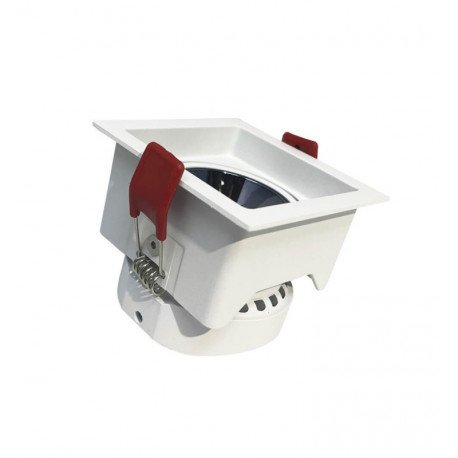

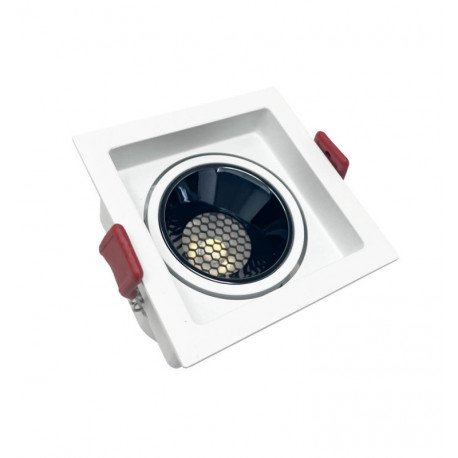

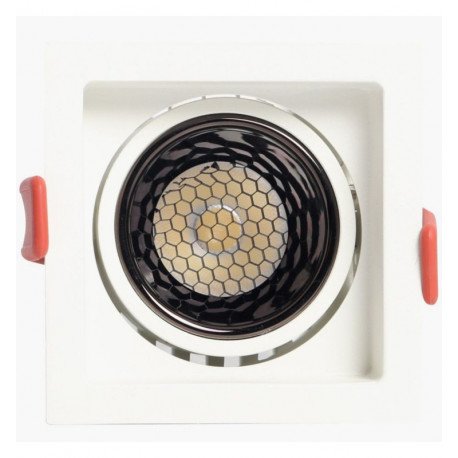

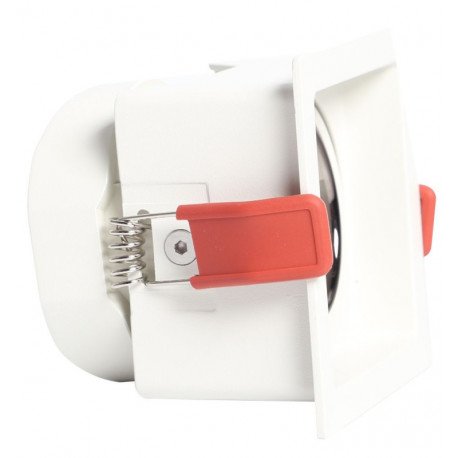

LED Square Downlight UGR11 5W-8W-12W 40° CCT CRI+92
LED-00255
Certificates
CE - ROHS
Construction Material
Aluminum +PC
Dimensions (mm)
90x84x66mm
Rated Power
5W - 8W -12W
Beam Angle (º)
40º
Ceiling Cut (mm)
Ø75mm
New product
Square LED recessed downlight featuring a durable aluminum and PC construction, delivering high color quality with CRI 92 and efficient 130 lm/W performance. Offers robust protection rating (IP20, IK10) and fast startup, suitable for focused lighting with a 40° beam angle and visual comfort at UGR11 level.
1108 Items
More info

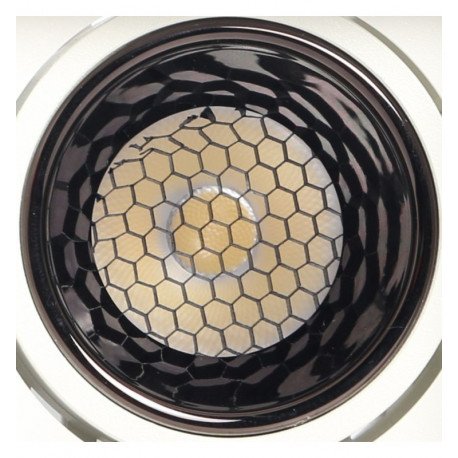

White aluminum square LED recessed downlight with selectable power 5W-8W-12W (depending on the driver). With a 40° opening angle, it delivers more direct lighting to help focus light on specific points. Easy mounting and installation. Features COB with Bridgelux chips and a high color rendering index (CRI) of over +92, for high-quality color reproduction. UGR11 level for improved visual comfort.
Robust Construction and Durability

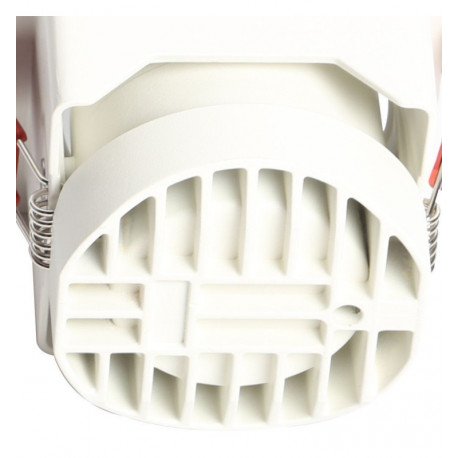

Constructed from high-quality aluminum combined with polycarbonate (PC), this downlight ensures longevity and resilience. The IK10 impact protection rating confirms its resistance to mechanical impacts, making it suitable for demanding indoor environments.
Efficient and High-Quality Light Output

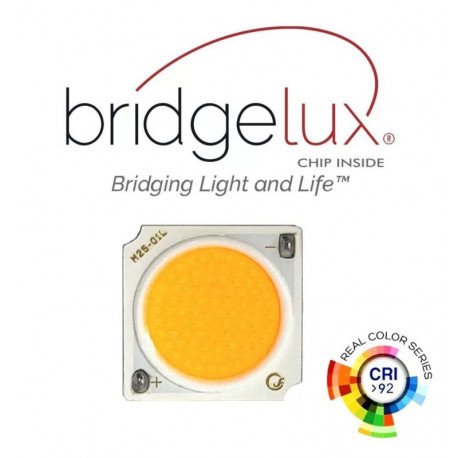

Equipped with COB Bridgelux Chip 2630 DS-C30 LEDs, the luminaire provides stable and bright illumination with a color rendering index (CRI) of 92, ensuring true-to-life color representation. Its declared efficacy of 130 lm/W guarantees energy-efficient performance without compromising lighting quality.
Versatile Electrical Compatibility and Operation
Designed to operate at standard frequencies of 50 or 60 Hz, the downlight functions reliably within a wide temperature range from -20°C to 55°C. It also boasts a rapid startup time of 0.2 seconds and supports an extensive number of switching cycles (100,000), highlighting its suitability for frequent on-off applications.
Frequently Asked Questions

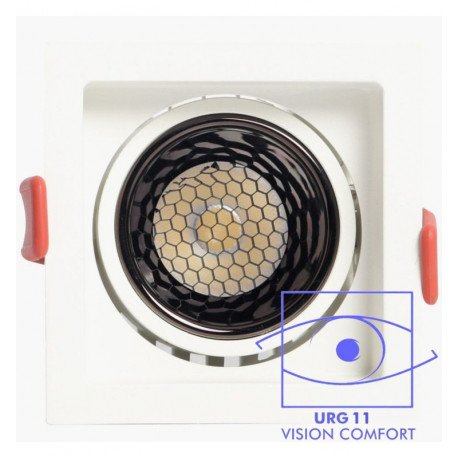

What does UGR11 mean for this downlight?
UGR11 refers to the Unified Glare Rating of the luminaire, indicating that it produces low glare, enhancing visual comfort for users.
Is this product suitable for damp or outdoor areas?
With an ingress protection rating of IP20, this downlight is intended for indoor use where it is protected from moisture and dust.
Can the luminous power be adjusted?

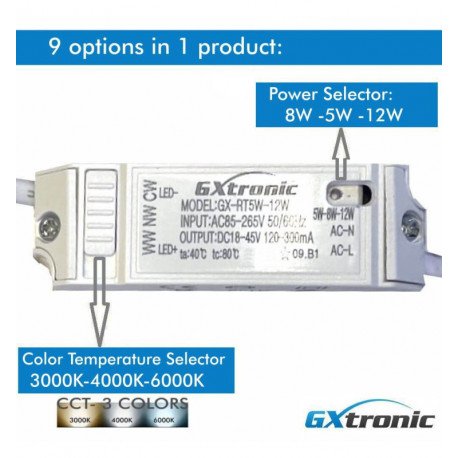

Yes, the downlight comes with selectable power options of 5W, 8W, or 12W depending on the driver chosen, allowing customization of brightness.
View technical specifications Hide technical specifications
Certificates
CE - ROHS
IP Rating
IP20
Construction Material
Aluminum +PC
Warranty years
3
Dimensions (mm)
90x84x66mm
Rated Power
5W - 8W -12W
Rated Voltage
85V-265V
CRI - Color Rendering Index
92
Energy Class (2021-EU-2019/2015)
A+
LED Diode Efficacy (Lm/W)
130Lm/W
Estimated LED Diode Life (H)
35.000
Operating Frequency (Hz)
50/60Hz
Temperature Range (ºC)
-20°C ~ +55°C
Switching Cycles
100.000
Start-Up Time (s)
0,2s
Impact Protection (IK)
IK10
Energy Class (2023 - EU-2019/2015)
F
Light Temperature

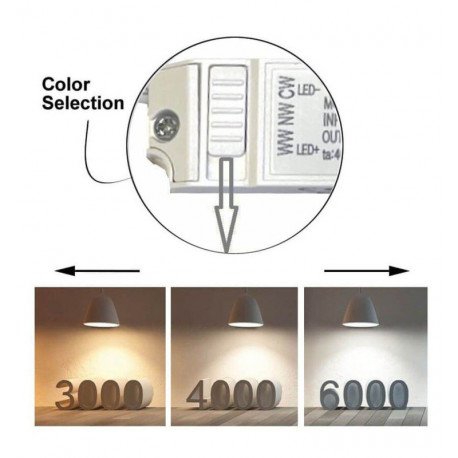

COLOR SELECTABLE: 3000K-4000K-6000K
Luminous Flux-Lm
1200Lm
LED Type
COB Bridgelux Chip 2630 DS-C30
Beam Angle (º)
40º
Luminous Efficacy (Lm/W)
130 Lm/W
Driver Included
SI
Ceiling Cut (mm)
Ø75mm
Glare Index (UGR)
11
