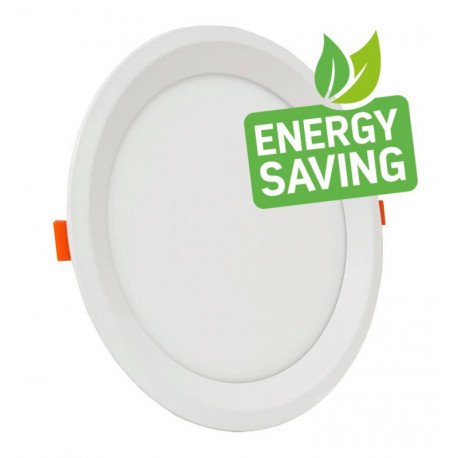

LED Downlight 24W Circular OSRAM 4CCT UGR17
LED-00242
New product
523 Items
Data sheet
| Certificates | CE - ROHS |
| IP Rating | IP20 |
| Construction Material | Aluminum +PC |
| Warranty years | 3 |

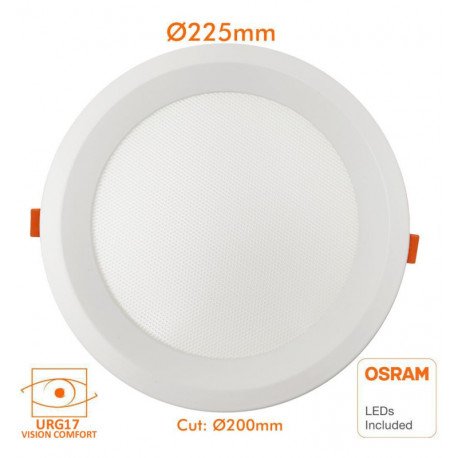

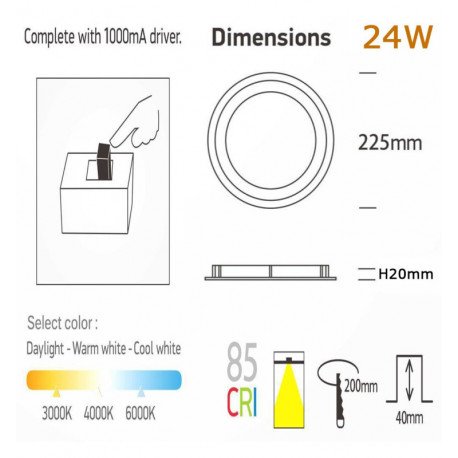

| Dimensions (mm) | Ø225mm * H20mm |
| Rated Power | 18W - 20W - 22W - 24W |
| Rated Voltage | 220V-240V AC |
| CRI - Color Rendering Index | 82 |
| Energy Class (2021-EU-2019/2015) | A+ |
| LED Diode Efficacy (Lm/W) | 140 Lm/W |
| Estimated LED Diode Life (H) | 40.000 |
| Operating Frequency (Hz) | 50/60Hz |
| Temperature Range (ºC) | -20°C ~ +55°C |
| Switching Cycles | 100.000 |
| Start-Up Time (s) | 0,2s |
| Energy Class (2023 - EU-2019/2015) | E |

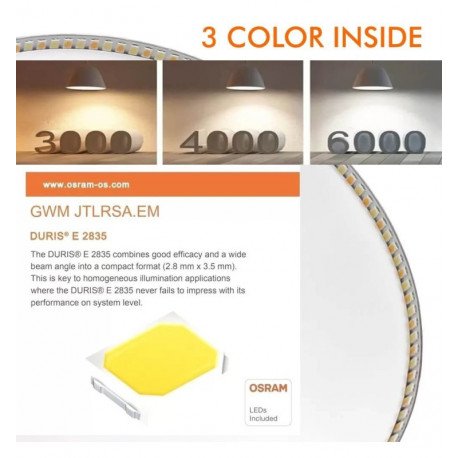

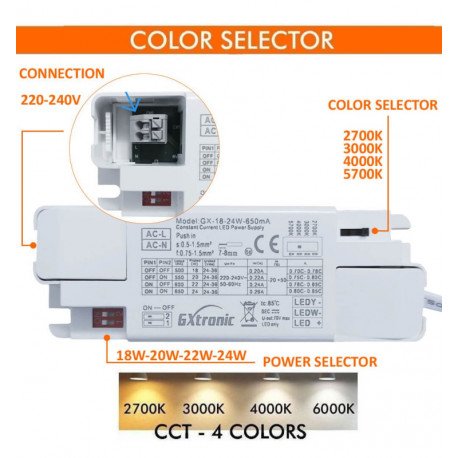

| Light Temperature | 2700K - 3000K - 4000K - 5700K |

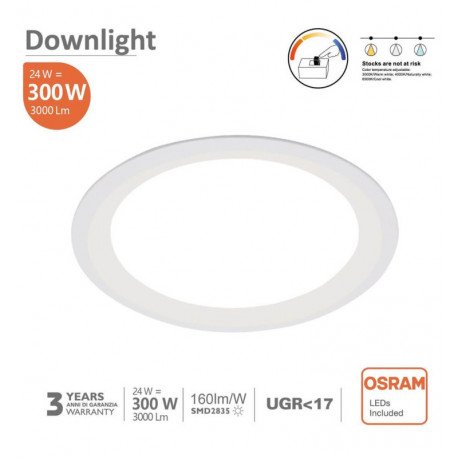

| Luminous Flux-Lm | 3000 |

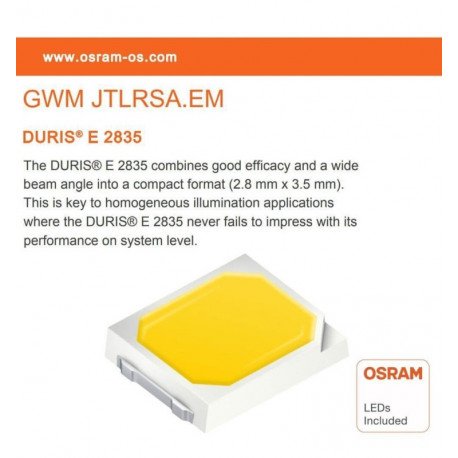

| LED Type | SMD 2835 OSRAM CHIP |
| Beam Angle (º) | 120º |
| Luminous Efficacy (Lm/W) | 125 Lm/W |
| Driver Included | SI |
| Ceiling Cut (mm) | Ø 200mm * H40mm |
| Glare Index (UGR) | 17 |
