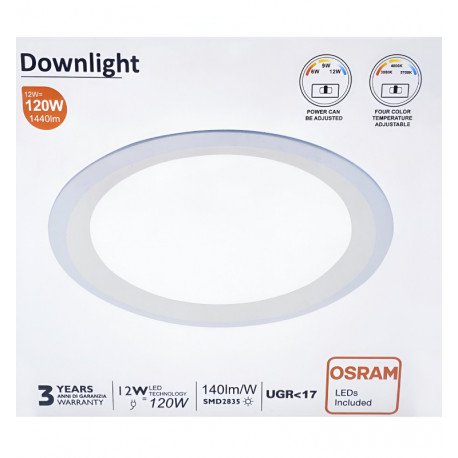

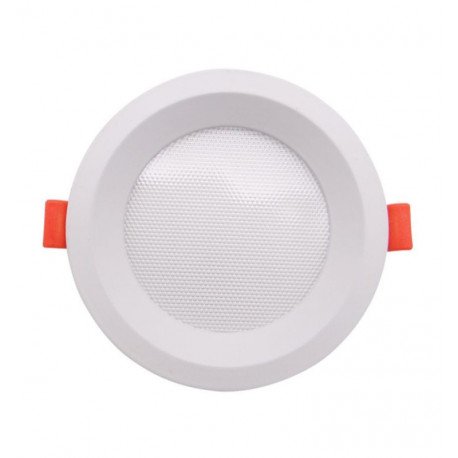

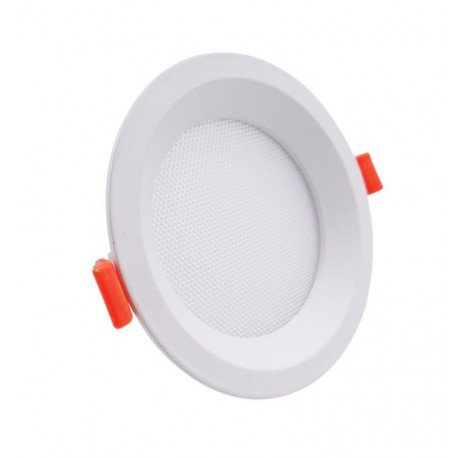

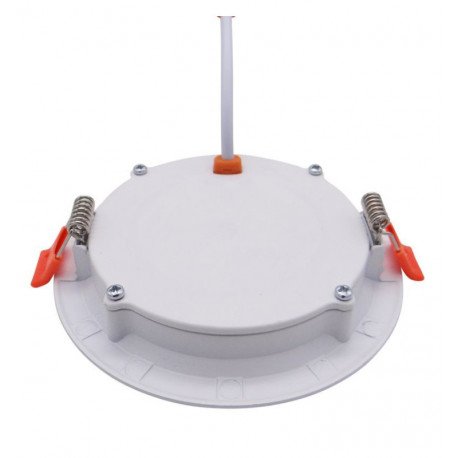

LED Downlight 12W Circular Recessed CCT UGR17 OSRAM
LED-00240
Certificates
CE - ROHS
Construction Material
Aluminum +PC

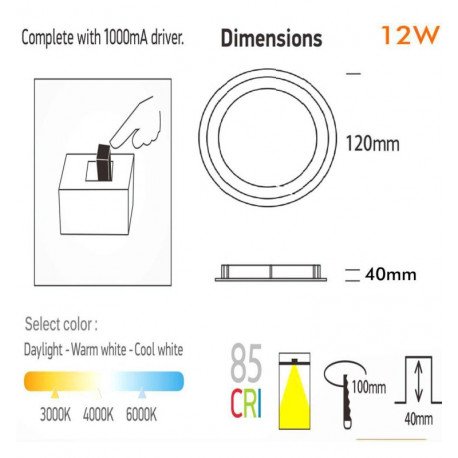

Dimensions (mm)
Ø120mm * H20mm
Rated Power
6W-9W-12W
Beam Angle (º)
120º

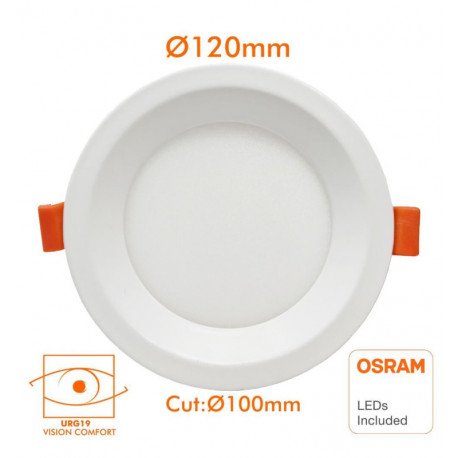

Ceiling Cut (mm)
Ø 100mm * H40mm
New product
This 12W circular recessed LED downlight offers customizable illumination with a choice of 3000K, 4000K, or 6000K CCT and includes UGR17 for reduced glare. Featuring an OSRAM SMD 2835 chip and GXTronic driver, it achieves 120 lm/W efficacy, operating reliably between -20°C and 55°C with a quick 0.2s startup time.
1 Item
Warning: Last items in stock!
More info
LED Downlight 12W Circular - OSRAM CHIP DURIS E 2835 - CCT - UGR17. This recessed downlight delivers precise, customizable lighting for indoor spaces, with simple operation and light tailored to your needs. It features a color temperature selector to choose between 3000K, 4000K, or 6000K depending on the room or business. It also includes UGR17 to help minimize glare. The high-efficiency SMD2835 OSRAM CHIP light source provides high brightness and allows you to replace traditional spotlights with significant energy savings.
Durability and Construction
Constructed with a combination of aluminum and polycarbonate (PC), this downlight balances robustness and lightweight design, making it suitable for standard indoor environments with an IP20 ingress protection rating.
Performance and Reliability
Designed for longevity, the downlight supports up to 100000 switching cycles and operates efficiently on 50 or 60 Hz power supplies. Its quick startup time of 0.2 seconds ensures immediate full brightness, enhancing user convenience.
Light Quality and Optics

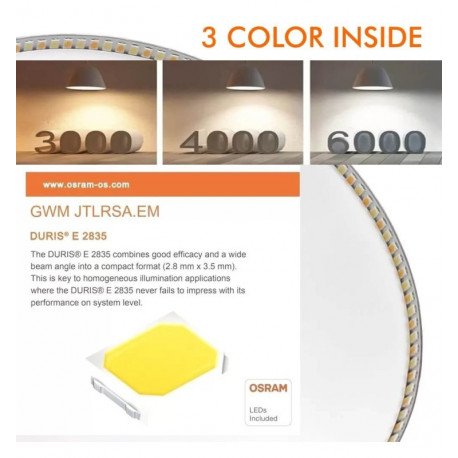

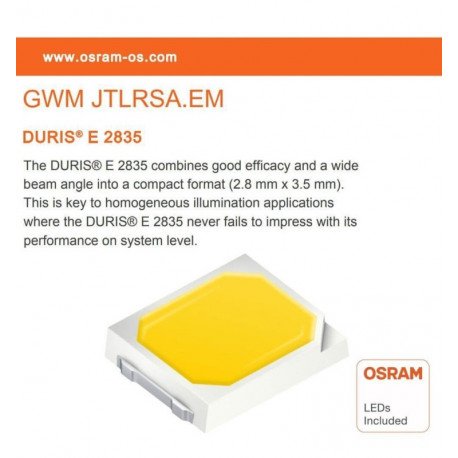

Equipped with a wide 120° beam angle, the luminaire delivers broad and even light distribution, complementing its glare reduction feature UGR17 for comfortable visual environments. The OSRAM DURIS E 2835 SMD LED ensures consistent light quality with a CRI of 82, suitable for most indoor applications.
Frequently Asked Questions
What are the color temperature options available?
You can select from 3000K (warm white), 4000K (neutral white), or 6000K (cool white) to best suit your indoor lighting needs.
Can this downlight be used in damp or wet locations?
No, with an IP20 rating it is intended for dry indoor areas and should not be exposed to moisture.
What is the expected lifespan in terms of switching cycles?
The downlight is rated for up to 100000 switching cycles, ensuring long-term reliable operation.
How fast does the light reach full brightness after being switched on?
It achieves full brightness very quickly, with a startup time of just 0.2 seconds.
View technical specifications Hide technical specifications
Certificates
CE - ROHS
IP Rating
IP20
Construction Material
Aluminum +PC
Warranty years
3
Dimensions (mm)
Ø120mm * H20mm
Rated Power
6W-9W-12W
Rated Voltage
220V-240V AC
CRI - Color Rendering Index
82
LED Diode Efficacy (Lm/W)
140 Lm/W
Estimated LED Diode Life (H)
40.000
Operating Frequency (Hz)
50/60Hz
Temperature Range (ºC)
-20°C ~ +55°C
Switching Cycles
100.000
Start-Up Time (s)
0,2s
Energy Class (2023 - EU-2019/2015)
E
Light Temperature
3000K - 4000K - 6000K
Luminous Flux-Lm
1440
LED Type
SMD 2835 OSRAM CHIP
Beam Angle (º)
120º
Luminous Efficacy (Lm/W)
120 Lm/W

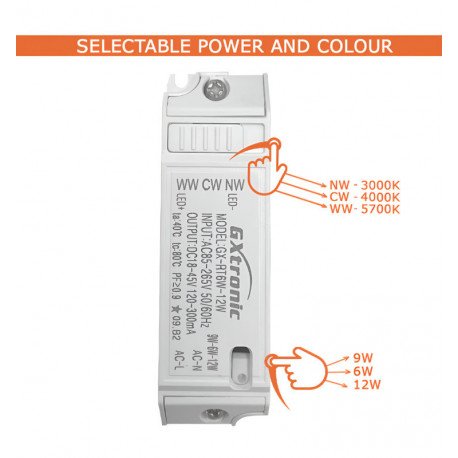

Driver Included
Driver GXTronic
Ceiling Cut (mm)
Ø 100mm * H40mm
Glare Index (UGR)
17
