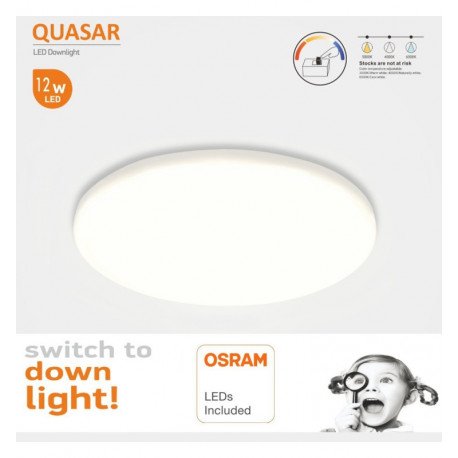

LED Downlight 12W Frameless QUASAR OSRAM DURIS E CCT
LED Downlight 12W Frameless QUASAR OSRAM DURIS E CCT
LED Downlight 12W Frameless QUASAR OSRAM DURIS E CCT
LED Downlight 12W Frameless QUASAR OSRAM DURIS E CCT
LED Downlight 12W Frameless QUASAR OSRAM DURIS E CCT
LED Downlight 12W Frameless QUASAR OSRAM DURIS E CCT
LED Downlight 12W Frameless QUASAR OSRAM DURIS E CCT
LED Downlight 12W Frameless QUASAR OSRAM DURIS E CCT
LED Downlight 12W Frameless QUASAR OSRAM DURIS E CCT
LED Downlight 12W Frameless QUASAR OSRAM DURIS E CCT
LED Downlight 12W Frameless QUASAR OSRAM DURIS E CCT
LED Downlight 12W Frameless QUASAR OSRAM DURIS E CCT

LED Downlight 12W Frameless QUASAR OSRAM DURIS E CCT

LED-00197

Certificates CE - ROHS
Construction Material Aluminum +PC

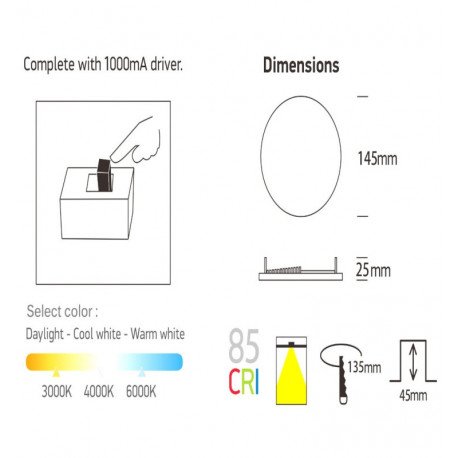

Dimensions (mm) Φ145mm H15mm
Rated Power 12w
Beam Angle (º) 120º
Ceiling Cut (mm) Φ135mm H15mm

New product

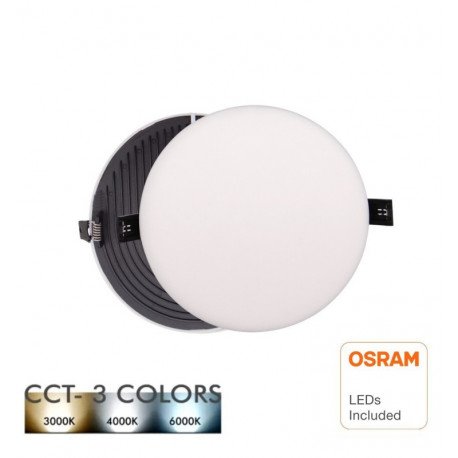

Selectable color LED downlight, 12W frameless circular design with temperature selector (cool, neutral and warm white). 120° beam angle.

More details

770 Items

9,90 € tax incl.

Métodos de pago

Data sheet

Certificates CE - ROHS

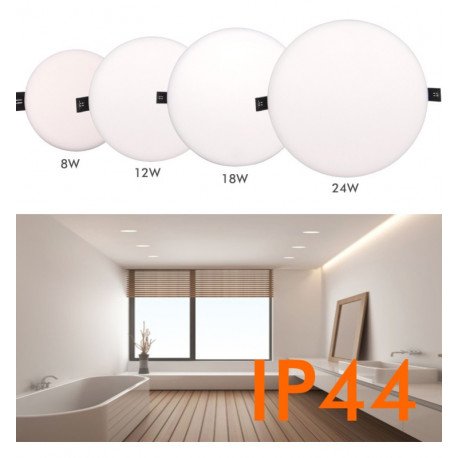

IP Rating IP44
Construction Material Aluminum +PC
Warranty years 3
Dimensions (mm) Φ145mm H15mm
Rated Power 12w
Rated Voltage 85V-265V
CRI - Color Rendering Index 82
Energy Class (2021-EU-2019/2015) A+
LED Diode Efficacy (Lm/W) 140 Lm/W
Estimated LED Diode Life (H) 40.000
Operating Frequency (Hz) 50/60Hz
Temperature Range (ºC) -20°C ~ +55°C
Switching Cycles 100.000
Start-Up Time (s) 0,2s
Energy Class (2023 - EU-2019/2015) E

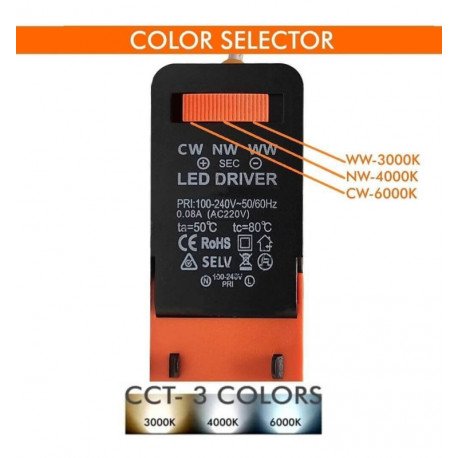

Light Temperature COLOR SELECTABLE: 3000K-4000K-6000K
Luminous Flux-Lm 1440Lm

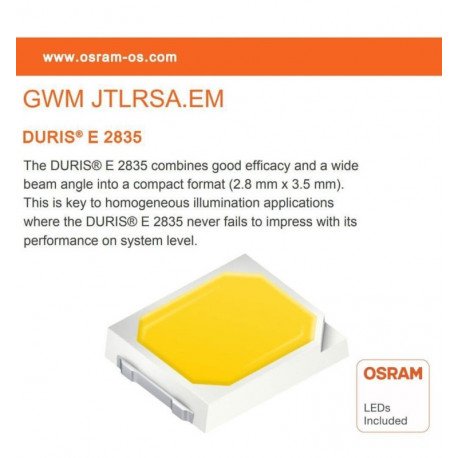

LED Type SMD 2835 OSRAM CHIP
Beam Angle (º) 120º
Luminous Efficacy (Lm/W) 120 Lm/W
Ceiling Cut (mm) Φ135mm H15mm

More info

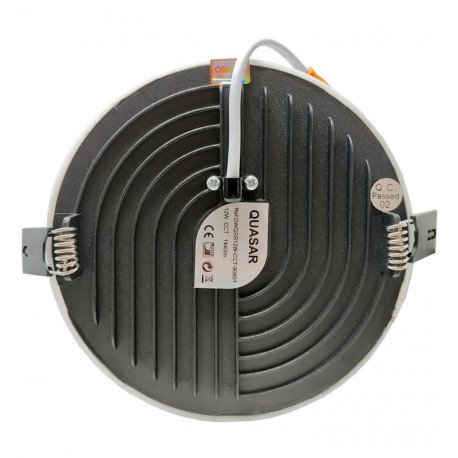

12W frameless LED downlight QUASAR with OSRAM DURIS E and selectable CCT. This recessed circular downlight features a modern, trim design for precise, personalized lighting indoors. With its color temperature selection system, you can choose between cool white, neutral white, or warm white depending on the room. The SMD2835 light source with OSRAM chip DURIS E 2835 helps deliver high brightness, allowing you to replace traditional bulbs with energy savings. The luminaire has a 120° beam angle, ideal for wide light distribution.
