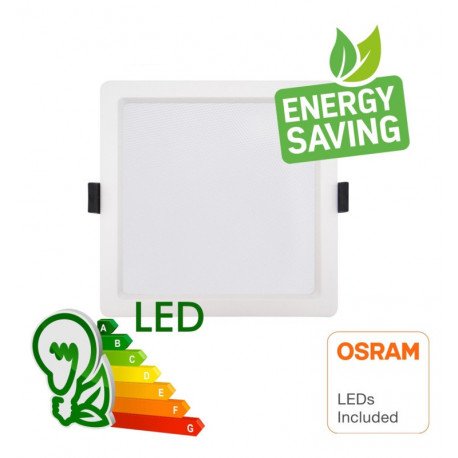

LED Downlight 15W Square CCT OSRAM UGR17 Glare-Free
LED-00192
Certificates
CE - ROHS
Construction Material
Aluminum +PC

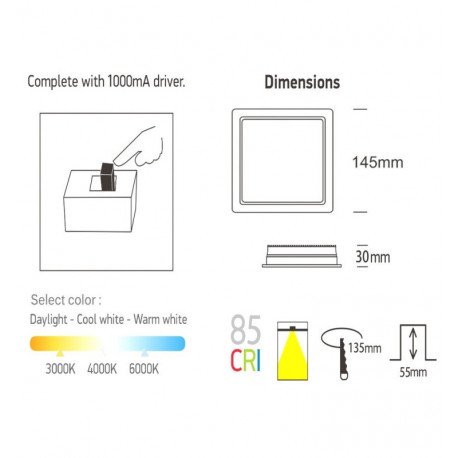

Dimensions (mm)
145x145mm H30mm
Rated Power
15w
Beam Angle (º)
120º
Ceiling Cut (mm)
135x135mm
New product
This 15W square LED downlight features an OSRAM SMD 2835 chip and offers selectable color temperatures (warm, neutral, cool white). It delivers approximately 1800 lm output with 120 lm/W efficacy, wide 120° beam angle, and UGR17 rating for low glare, ideal for energy-efficient indoor lighting in residences and commercial spaces.
364 Items
More info

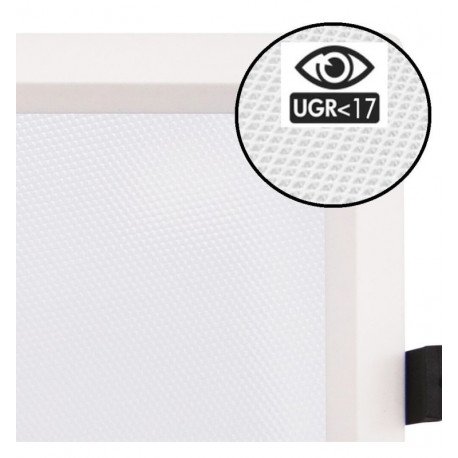

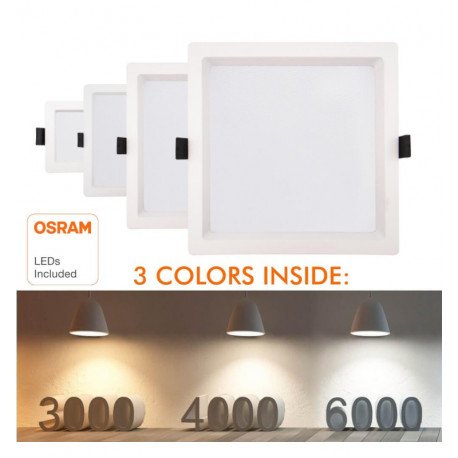

Square recessed LED downlight 15W with OSRAM CHIP DURIS E technology (SMD 2835) and selectable CCT. Choose warm white, neutral white or cool white to match the lighting to each indoor space. With UGR17, it helps reduce glare and improves visual comfort—suitable for both businesses and home. Featuring a 120° beam angle, it provides a wide distribution and precise illumination. Replace traditional spotlights for energy savings of over 80% while maintaining strong lighting performance.
Build and Durability

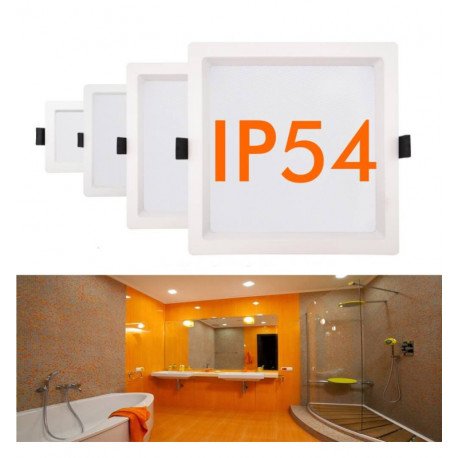

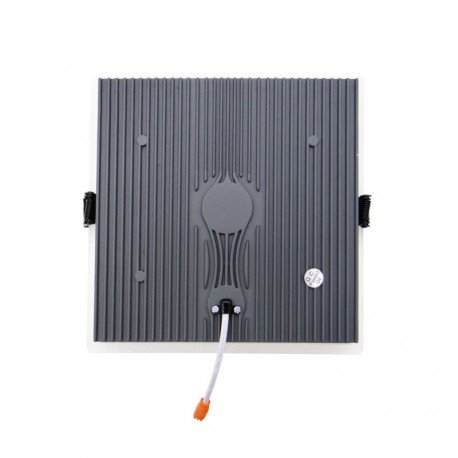

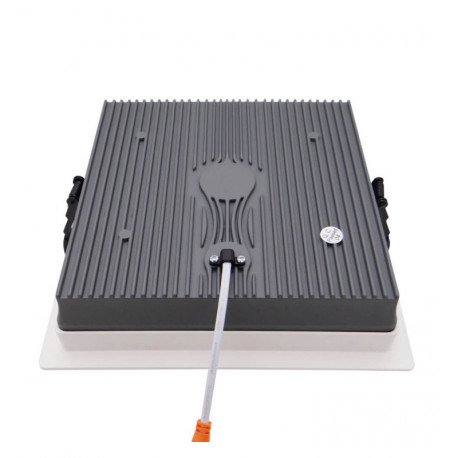

Constructed from aluminum and polycarbonate (PC), this downlight ensures both robustness and heat dissipation for longevity and stable operation. The IP54 ingress protection rating protects it against dust ingress and water splashes, suitable for various indoor environments.
Performance and Operation

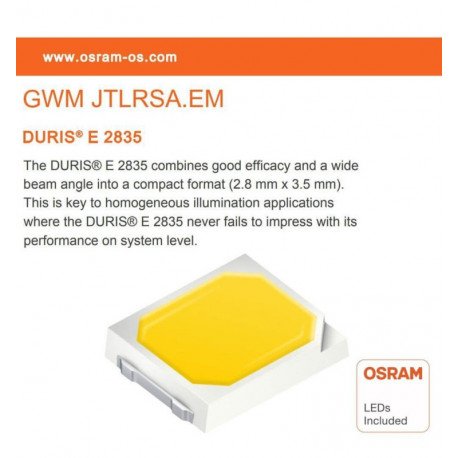

Equipped with an OSRAM DURIS E chip (SMD 2835), it maintains a high luminous efficacy of 120 lm/W. The fixture starts quickly in 0.2 seconds and operates reliably within a temperature range from -20 °C to 55 °C. It supports power supply frequencies of 50 and 60 Hz and withstands up to 100000 switching cycles, ensuring durable performance.
Frequently Asked Questions
What is the beam angle of the LED downlight?
It has a wide beam angle of 120°, providing broad and even illumination.

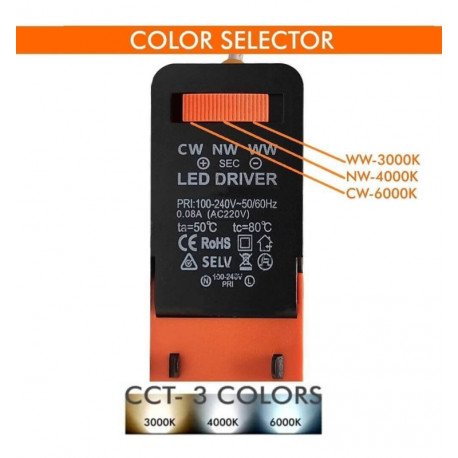

Can I select different color temperatures when ordering?
Yes, the downlight offers selectable CCT options including warm white, neutral white, and cool white to suit different indoor ambiances.
Is the downlight suitable for high humidity indoor areas?
With an IP54 rating, it is protected against dust and water splashes, making it appropriate for many indoor environments where moisture may be present.
View technical specifications Hide technical specifications
Certificates
CE - ROHS
IP Rating
IP54
Construction Material
Aluminum +PC
Warranty years
3
Dimensions (mm)
145x145mm H30mm
Rated Power
15w
Rated Voltage
85V-265V
CRI - Color Rendering Index
82
Energy Class (2021-EU-2019/2015)
A+
LED Diode Efficacy (Lm/W)
140 Lm/W
Estimated LED Diode Life (H)
40.000
Operating Frequency (Hz)
50/60Hz
Temperature Range (ºC)
-20°C ~ +55°C
Switching Cycles
100.000
Start-Up Time (s)
0,2s
Light Temperature
COLOR SELECTABLE: 3000K-4000K-6000K
Luminous Flux-Lm
1800
LED Type
SMD 2835 OSRAM CHIP
Beam Angle (º)
120º
Luminous Efficacy (Lm/W)
120 Lm/W
Ceiling Cut (mm)
135x135mm
Glare Index (UGR)
17
