LED Square Panel 30W 4CCT UGR19 CRI92
LED-00887
Certificates
CE, CMIM, RoHS
Construction Material
Aluminum +PC

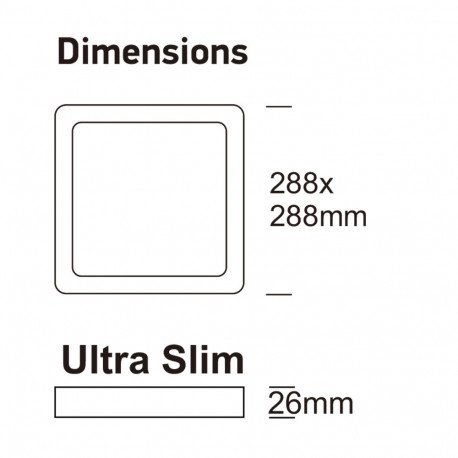

Dimensions (mm)
288x288mm H26mm
Rated Power
30W
Beam Angle (º)
120º
New product
The 30W LED Square Panel offers selectable color temperatures (2700K, 3000K, 4000K, 5700K) with high color rendering (CRI92) and low glare (UGR19). Its ultra-thin 26 mm design integrates smoothly into various environments, delivering estimated 3600 lm with efficient GXtronic driver technology.
133 Items
More info
This 30W square LED surface panel features a GXtronic driver, a modern look, and an ultra-thin profile of just 26 mm. Choose from 4 selectable CCTs (2700K/3000K/4000K/5700K) to match the lighting temperature to each space. Enjoy high visual comfort with UGR19. Using SMD2835 technology and CRI92, it delivers efficient, high-quality illumination for ceilings up to 3 meters, blending discreetly into both home and professional environments.
Efficient and User-Friendly Performance
Equipped with a GXtronic driver that ensures no flicker, this LED panel supports a power factor of 0.95 and works reliably across 50 to 60 Hz frequency. Its fast startup time of 0.2 seconds and ability to endure up to 100000 switching cycles enhance the lighting experience and durability.
Robust Build and Operating Conditions
Constructed with aluminum and PC materials, the panel has an ingress protection rating of IP20, suitable for indoor use. It operates effectively within a temperature range from -10°C to 40°C, making it adaptable to typical indoor environmental conditions.
Design and Optics
The square panel features a broad 120° beam angle for wide light distribution and uses SMD 2835 type LEDs. Its sleek profile, only 26 mm thick, allows it to be mounted in ceilings up to 3 meters high without being obtrusive.
Frequently Asked Questions
Can I change the light color temperature after installation?
Yes, the panel offers 4 selectable CCT options (2700K, 3000K, 4000K, 5700K) which can be chosen to best suit your lighting needs.
Is this panel suitable for outdoor use?
No, with an IP20 protection level, this panel is intended for indoor environments only.
What is the expected lifespan in terms of switching cycles?
The LED panel is rated for up to 100000 switching cycles, supporting long-term use with frequent on/off operation.
View technical specifications Hide technical specifications
Certificates
CE, CMIM, RoHS
IP Rating
IP20
Construction Material
Aluminum +PC
Warranty years
3
Dimensions (mm)
288x288mm H26mm
Rated Power
30W
Rated Voltage
85V-265V

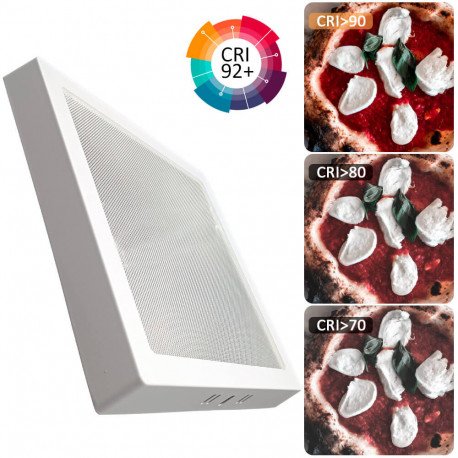

CRI - Color Rendering Index
92
Energy Class (2021-EU-2019/2015)
A+
LED Diode Efficacy (Lm/W)
140 Lm/W
Estimated LED Diode Life (H)
40.000
Power Factor (PF)
0.95
Operating Frequency (Hz)
50/60Hz
Temperature Range (ºC)
-10ºC ~ +40ºC
Switching Cycles
100.000
Start-Up Time (s)
0,2s
Light Temperature
4CCT SELECT 2700K-3000K-4000K-5700K
Luminous Flux-Lm
2880
LED Type
SMD 2835
Beam Angle (º)
120º
Luminous Efficacy (Lm/W)
120 Lm/W
Driver Included
GXtronic Driver - No Flick
