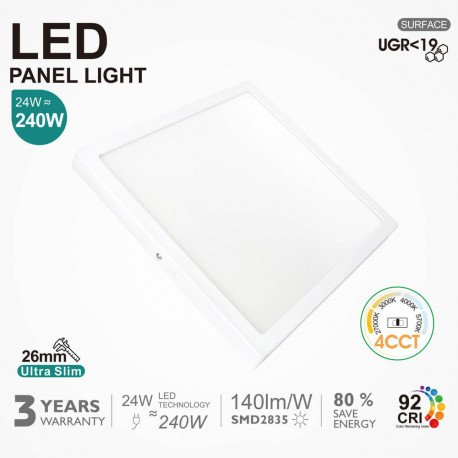

LED Panel Square 24W 4CCT UGR19 26mm CRI92
LED-00886
Certificates
CE, CMIM, RoHS
Construction Material
Aluminum +PC
Dimensions (mm)

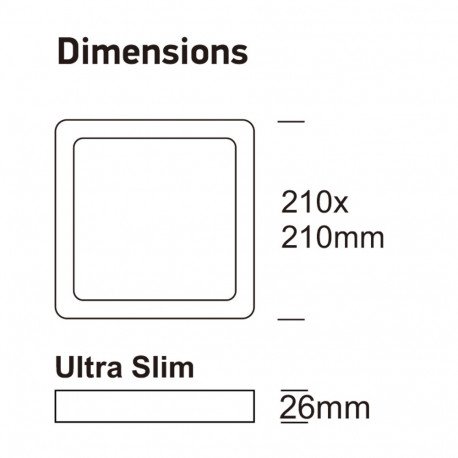

210x210mm H26mm
Rated Power
24w
Beam Angle (º)
120º
New product
This 24W square LED panel offers ultra-thin design, selectable 4CCT (2700K-5700K), UGR19 glare control, and CRI92 color rendering, delivering 2880 lm with high efficacy (120 lm/W). Powered by a GXtronic driver, it suits stylish, efficient ceiling lighting up to 3 meters.
1431 Items
More info

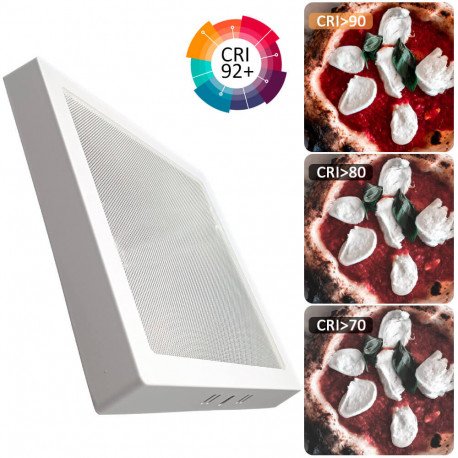

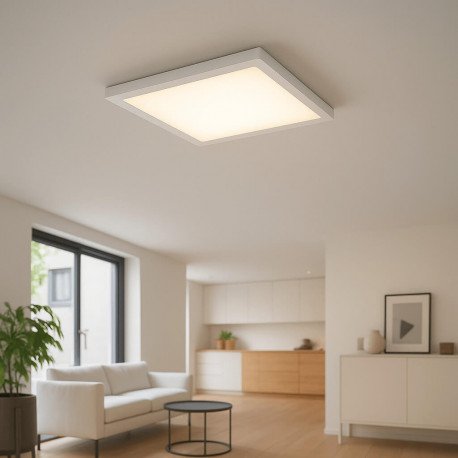

Square surface-mount LED panel 24W with an ultra-thin 26mm profile and high-performance GXtronic driver. Features selectable 4CCT technology (2700K/3000K/4000K/5700K) so you can match the white light tone to your space. The UGR19 glare rating helps improve visual comfort, while CRI92 delivers high-quality color rendering. Ideal for stylish, efficient ceiling lighting up to 3 meters, with a modern minimalist finish.
Durability and Operation
Constructed from aluminum and polycarbonate materials, this LED panel maintains IP20 ingress protection, making it suitable for indoor environments. It operates reliably within a temperature range from -10°C to 40°C and supports 50/60 Hz frequency input, ensuring compatibility with common electrical systems.
Performance and Reliability

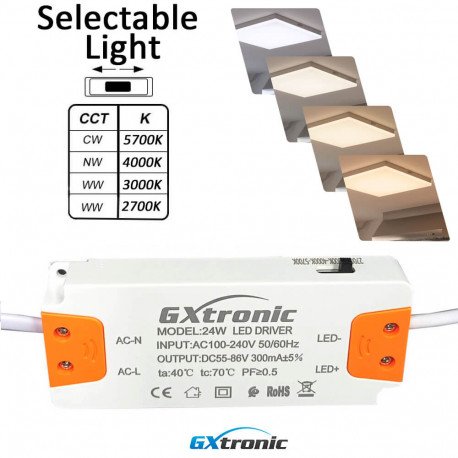

Equipped with a GXtronic driver that guarantees no flicker, the panel's startup time is only 0.2 seconds, allowing instant illumination. Its estimated lifespan includes up to 100,000 switching cycles, supporting long-term use with consistent performance.
The LED type used is SMD 2835 with a wide 120° beam angle, delivering even light distribution suitable for general indoor lighting applications.
Color Options and Visual Comfort
Selectable color temperature options—2700K, 3000K, 4000K, and 5700K—enable tailored lighting ambiances, from warm to cool white. Its UGR19 rating minimizes glare, enhancing visual comfort in work or living spaces.
High color rendering index (CRI 92) ensures vivid and natural color appearance for objects illuminated by the panel.
Frequently Asked Questions
What mounting options are available for this LED panel?
This product is designed as a surface-mount fixture suitable for ceiling installation, providing a slim, modern look.
Can the color temperature be changed after installation?
Yes, the LED panel features selectable 4CCT technology allowing the user to choose the desired color temperature at installation or when needed.
Is the LED panel suitable for outdoor use?
No, with an IP20 rating, the panel is intended for indoor use only and does not provide protection against water or dust ingress.
View technical specifications Hide technical specifications
Certificates
CE, CMIM, RoHS
IP Rating
IP20
Construction Material
Aluminum +PC
Warranty years
3
Dimensions (mm)
210x210mm H26mm
Rated Power
24w
Rated Voltage
85V-265V
CRI - Color Rendering Index
92
Energy Class (2021-EU-2019/2015)
A+
LED Diode Efficacy (Lm/W)
140 Lm/W
Estimated LED Diode Life (H)
40.000
Power Factor (PF)
0.95
Operating Frequency (Hz)
50/60Hz
Temperature Range (ºC)
-10ºC ~ +40ºC
Switching Cycles
100.000
Start-Up Time (s)
0,2s
Light Temperature
4CCT SELECT 2700K-3000K-4000K-5700K
Luminous Flux-Lm
2880
LED Type
SMD 2835
Beam Angle (º)
120º
Luminous Efficacy (Lm/W)
120 Lm/W
Driver Included
GXtronic Driver - No Flick
Glare Index (UGR)
17
