LED High Bay Circular Surface Panel 30W 4CCT UGR19 CRI92
LED-00885
Certificates
CE, CMIM, RoHS
Construction Material
Aluminum +PC

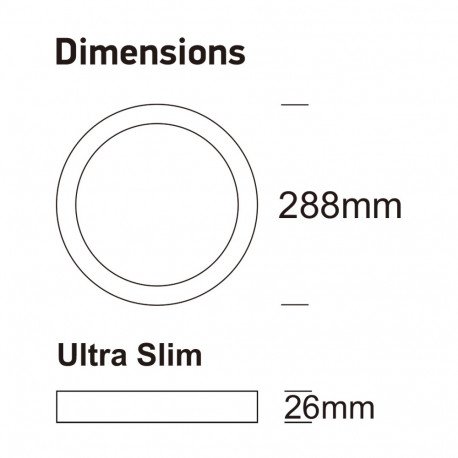

Dimensions (mm)
Φ288mm H26mm
Rated Power
30W
Beam Angle (º)
120º
New product
This 30W LED High Bay Circular Surface Panel offers selectable 4CCT settings (2700K, 3000K, 4000K, 5700K) with high color rendering (CRI92) and low glare (UGR19). Featuring a slim 26 mm profile and an efficient GXtronic driver, it delivers an estimated 3600 lm with 120 lm/W efficacy, suitable for ceiling integration up to 3 m high.
1050 Items
More info
30W Circular LED Surface Panel | 4CCT | UGR19 | SMD2835 140 lm/W | CRI92. Brighten your spaces with a modern, ultra-slim design just 26 mm thick, ideal for discreet ceiling integration up to 3 meters. Choose your preferred white light tone with selectable 4CCT (2700K/3000K/4000K/5700K). Enjoy high visual comfort thanks to UGR19 and excellent color quality with CRI92. Equipped with a high-performance GXtronic driver.
Installation and Durability
The luminaire’s design supports surface mounting with a minimal thickness of 26 mm, making it ideal for discreet ceiling applications. Its construction combines aluminum and polycarbonate materials that provide rigidity and ensure lightweight handling. With an ingress protection rating of IP20, it is intended for indoor environments without direct exposure to moisture.
Operating temperature ranges from -10 °C to 40 °C, accommodating various indoor ambient conditions. Its robust GXtronic driver enables reliable performance with quick startup times of just 0.2 seconds and supports switching cycles up to 100,000, contributing to long-term durability.
Optical Performance and Efficiency
The panel incorporates SMD 2835 LEDs arranged to produce a uniform, wide 120° beam angle, delivering an estimated luminous flux of 3600 lm at 30W power consumption. It achieves a declared efficacy of 120 lm/W, ensuring energy-efficient illumination.

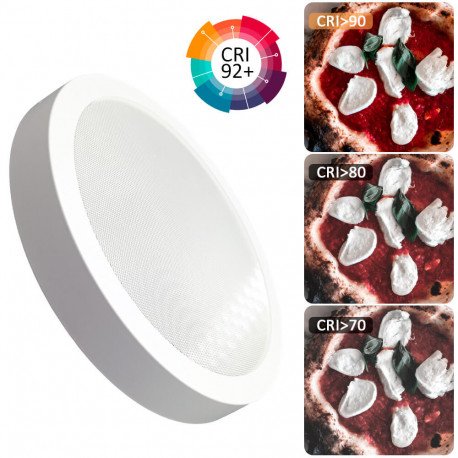

Selectable Correlated Color Temperatures (2700K, 3000K, 4000K, 5700K) allow users to adapt the lighting ambiance according to the setting or preference, while a high color rendering index (CRI 92) ensures vivid and accurate color representation, enhancing visual tasks and environment aesthetics.
Electrical Characteristics
The unit operates with a power factor of 0.95 across standard frequencies of 50 Hz and 60 Hz, supporting efficient power usage compatible with common electrical grids.

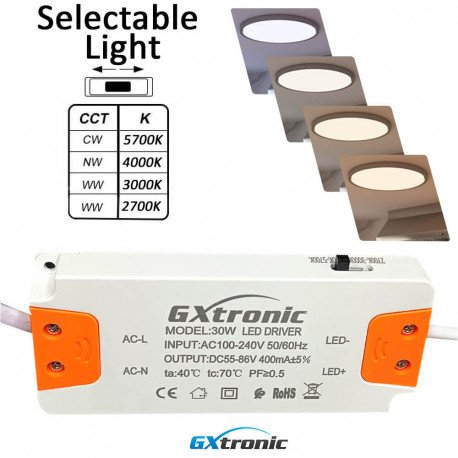

The advanced GXtronic driver minimizes flicker, contributing to visual comfort and reducing eye strain, particularly important in work and commercial environments.
Frequently Asked Questions
What is the maximum mounting height recommended for this panel?
The panel is designed for ceiling installation up to 3 meters high to maintain optimal lighting performance and visual comfort.
Can the color temperature be changed after installation?
The luminaire features selectable 4CCT options which must be set at the time of installation, allowing the user to choose from 2700K, 3000K, 4000K, or 5700K white light tones.
Is this product suitable for outdoor use?
No, with an ingress protection rating of IP20, this panel is intended for indoor use only and is not protected against water or dust ingress.
What materials are used in the construction of the panel?
The housing is made of aluminum and polycarbonate, offering a durable yet lightweight structure for indoor lighting applications.
View technical specifications Hide technical specifications
Certificates
CE, CMIM, RoHS
IP Rating
IP20
Construction Material
Aluminum +PC
Warranty years
3
Dimensions (mm)
Φ288mm H26mm
Rated Power
30W
Rated Voltage
85V-265V
CRI - Color Rendering Index
92
Energy Class (2021-EU-2019/2015)
A+
LED Diode Efficacy (Lm/W)
140 Lm/W
Estimated LED Diode Life (H)
40.000
Power Factor (PF)
0.95
Operating Frequency (Hz)
50/60Hz
Temperature Range (ºC)
-10ºC ~ +40ºC
Switching Cycles
100.000
Start-Up Time (s)
0,2s
Light Temperature
4CCT SELECT 2700K-3000K-4000K-5700K
Luminous Flux-Lm
3600
LED Type
SMD 2835
Beam Angle (º)
120º
Luminous Efficacy (Lm/W)
120 Lm/W
Driver Included
GXtronic Driver - No Flick
Glare Index (UGR)
17
