LED Ceiling Panel Circular 15W 4CCT UGR19 26mm
LED Ceiling Panel Circular 15W 4CCT UGR19 26mm
LED Ceiling Panel Circular 15W 4CCT UGR19 26mm
LED Ceiling Panel Circular 15W 4CCT UGR19 26mm
LED Ceiling Panel Circular 15W 4CCT UGR19 26mm
LED Ceiling Panel Circular 15W 4CCT UGR19 26mm
LED Ceiling Panel Circular 15W 4CCT UGR19 26mm

LED Ceiling Panel Circular 15W 4CCT UGR19 26mm

LED-00883

Certificates CE, CMIM, RoHS
Construction Material Aluminum +PC

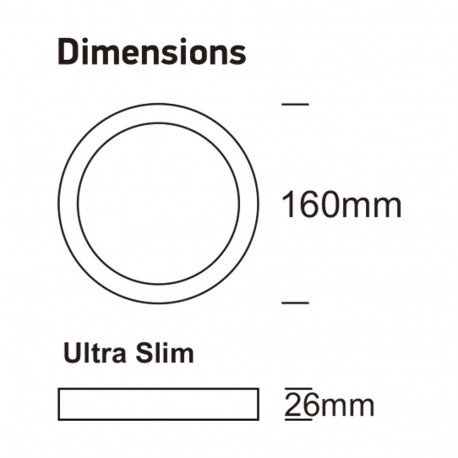

Dimensions (mm) Φ160mm H26mm
Rated Power 15w
Beam Angle (º) 120º

New product

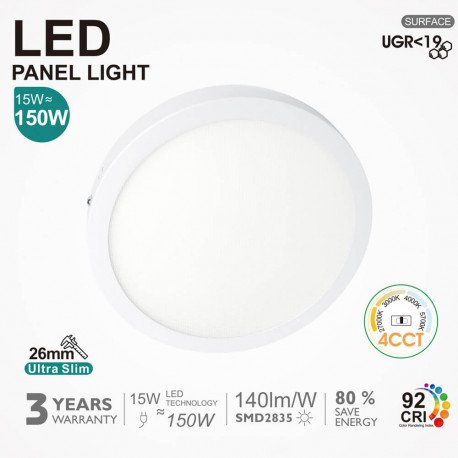

15W circular surface LED ceiling panel with selectable 4CCT and UGR19. Ultra-thin 26mm design with high light performance for indoor ceilings.

More details

1909 Items

9,15 € tax incl.

Métodos de pago

Data sheet

Certificates CE, CMIM, RoHS
IP Rating IP20
Construction Material Aluminum +PC
Warranty years 3
Dimensions (mm) Φ160mm H26mm
Rated Power 15w
Rated Voltage 85V-265V

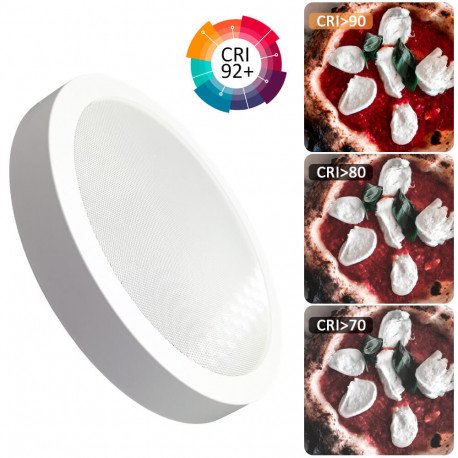

CRI - Color Rendering Index 92
Energy Class (2021-EU-2019/2015) A+
LED Diode Efficacy (Lm/W) 140 Lm/W
Estimated LED Diode Life (H) 40.000
Power Factor (PF) 0.95
Operating Frequency (Hz) 50/60Hz
Temperature Range (ºC) -10ºC ~ +40ºC
Switching Cycles 100.000
Start-Up Time (s) 0,2s

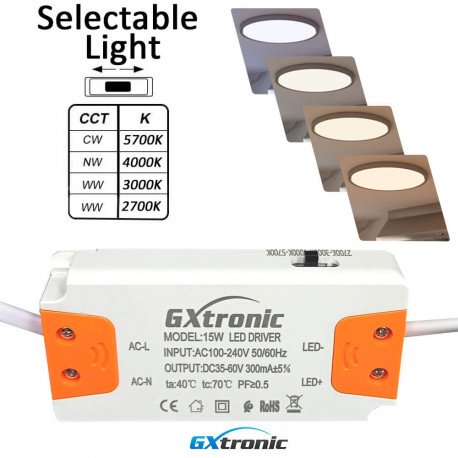

Light Temperature 4CCT SELECT 2700K-3000K-4000K-5700K
Luminous Flux-Lm 1800Lm
LED Type SMD 2835
Beam Angle (º) 120º
Luminous Efficacy (Lm/W) 120 Lm/W
Driver Included GXtronic Driver - No Flick
Glare Index (UGR) 17

More info

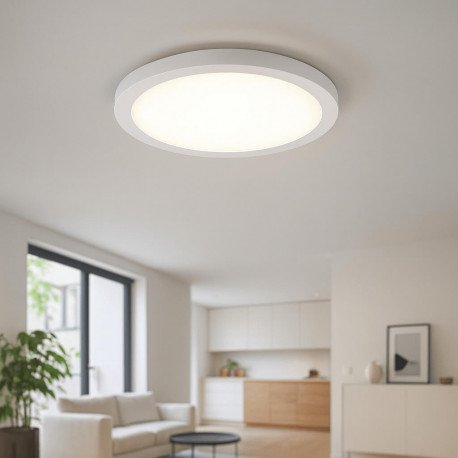

LED Circular Surface Ceiling Panel 15W with selectable 4CCT (2700K/3000K/4000K/5700K), UGR19, and GXtronic driver. Its ultra-thin design, just 26mm, allows a discreet integration in ceilings up to 3 meters, delivering a modern look and enhanced visual comfort. Ideal for those seeking efficient lighting, quality light output, and versatile color temperature options for indoor lighting.
