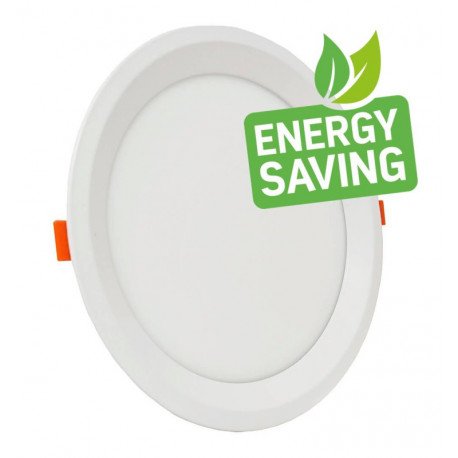

LED Downlight 24W Circular Dimmable UGR17 LIFUD OSRAM
Certificates
CE - ROHS
Construction Material
Aluminum +PC

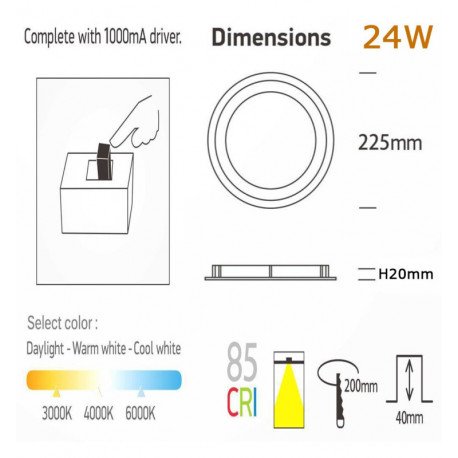

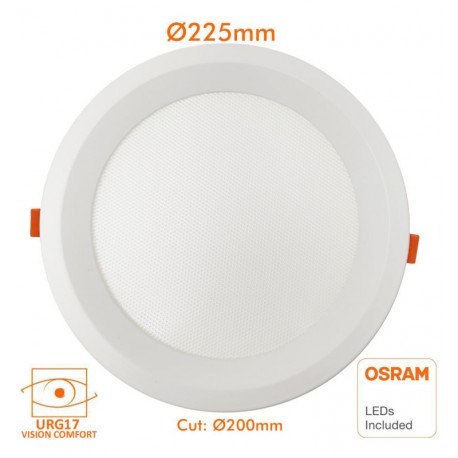

Dimensions (mm)
Ø225mm * H20mm
Rated Power
18W - 20W - 22W - 24W
Beam Angle (º)
120º
Ceiling Cut (mm)
Ø 200mm * H40mm
Dimmable
Yes
New product

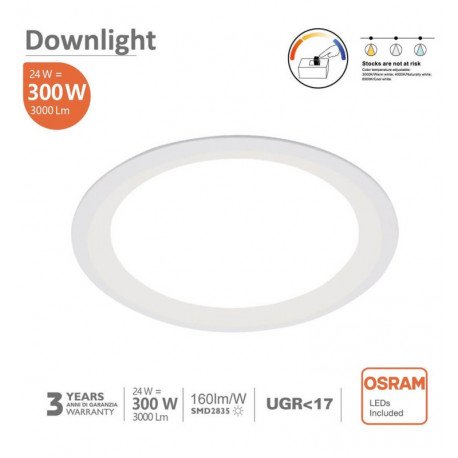

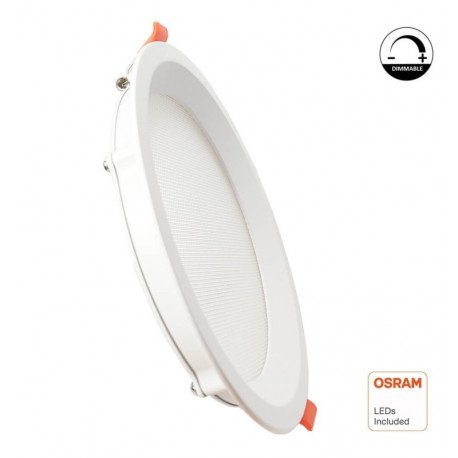

This 24W circular LED downlight features an OSRAM DURIS E 2835 chip and a LIFUD driver, offering dimmable control with TRIAC, 0-10V, or DALI/PUSH options. It delivers high-quality light with a CRI of 82, UGR17 for low glare, and adjustable color temperatures (2700K to 5700K). Constructed from aluminum and polycarbonate, it is rated IP20 and operates from -20°C to 55°C.
276 Items
More info

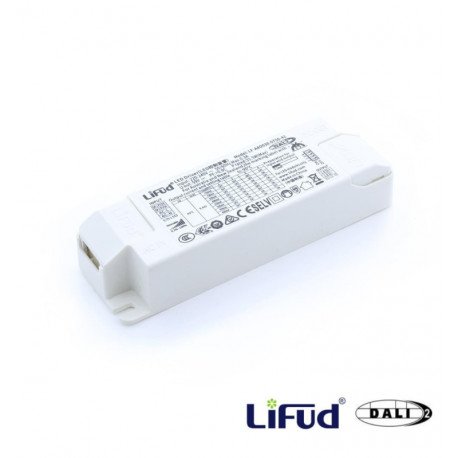

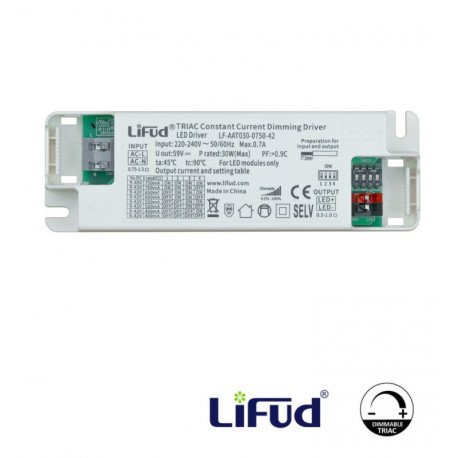

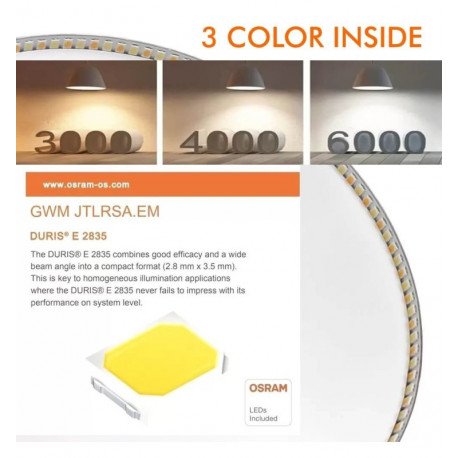

24W circular dimmable LED downlight with LIFUD driver and OSRAM DURIS E 2835 chip (160 lm/W). Designed to deliver high-quality lighting with CRI >80 and UGR17, helping reduce glare and improve visual comfort.

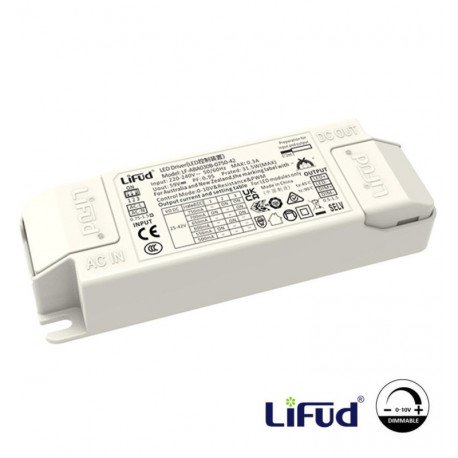

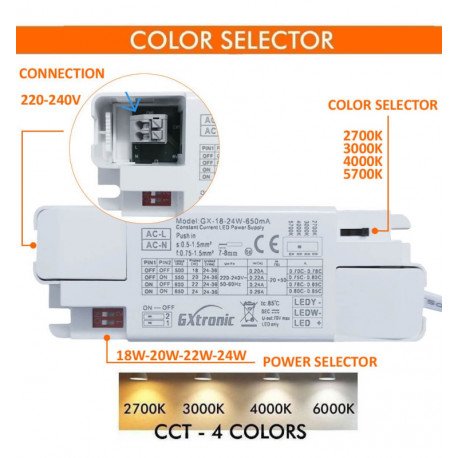

Includes a driver with power selector (multivatio) and a color temperature selector (4CCT configurable), allowing you to adjust both intensity and tone to suit the space. Available in dimming versions: TRIAC, 0-10V, or DALI/PUSH—ideal for installations where light control and a professional result are required.

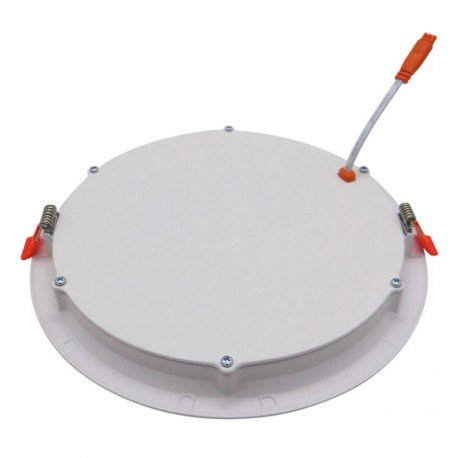

Materials and Build
The downlight is constructed using durable aluminum and polycarbonate materials, ensuring a lightweight yet robust housing. This build contributes to a sleek appearance suited for various interior applications.
Operating Conditions and Reliability
Designed for versatile installation environments, the downlight functions reliably within a temperature range of -20°C to 55°C. It supports standard mains frequencies of 50 and 60 Hz and is rated IP20 for indoor use.
The product is engineered for longevity, capable of enduring up to 100,000 switching cycles with a fast startup time of 0.2 seconds.
Optical Performance and Customization
The luminaire features a wide beam angle of 120° allowing broad light distribution. It comes with a color temperature selector offering 2700K, 3000K, 4000K, or 5700K options to tailor ambiance.
Dimming capabilities accommodate multiple driver types including TRIAC, 0-10V, and DALI/PUSH protocols, enabling flexible light control to meet diverse installation requirements.
Frequently Asked Questions
What installation locations are suitable for this downlight?
This IP20-rated downlight is intended for indoor use in residential, commercial, or office environments where protection against solid objects but not water is sufficient.
Can I adjust the light intensity and color independently?
Yes, the downlight allows independent adjustment of light intensity through dimming and color temperature via a 4-step CCT selector, offering versatile lighting options.
What dimming drivers are available with the product?
The downlight is available with dimmable drivers compatible with TRIAC, 0-10V, or DALI/PUSH control systems to suit different lighting control setups.
View technical specifications Hide technical specifications
Certificates
CE - ROHS
IP Rating
IP20
Construction Material
Aluminum +PC
Warranty years
3
Dimensions (mm)
Ø225mm * H20mm
Rated Power
18W - 20W - 22W - 24W
Rated Voltage
220V-240V AC
CRI - Color Rendering Index
82
Energy Class (2021-EU-2019/2015)
A+
LED Diode Efficacy (Lm/W)
140 Lm/W
Estimated LED Diode Life (H)
40.000
Operating Frequency (Hz)
50/60Hz
Temperature Range (ºC)
-20°C ~ +55°C
Switching Cycles
100.000
Start-Up Time (s)
0,2s
Energy Class (2023 - EU-2019/2015)
E
Light Temperature
2700K - 3000K - 4000K - 5700K
Luminous Flux-Lm
3000
LED Type

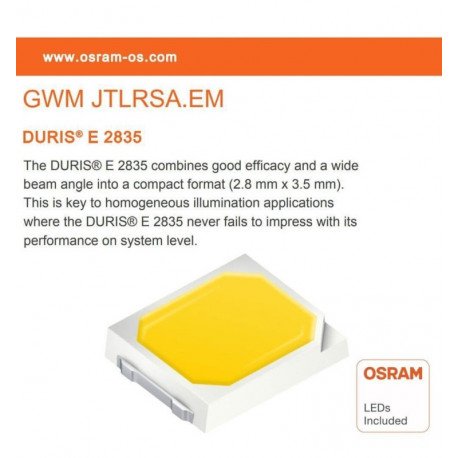

SMD 2835 OSRAM CHIP
Beam Angle (º)
120º
Luminous Efficacy (Lm/W)
125 Lm/W
Driver Included
SI
Ceiling Cut (mm)
Ø 200mm * H40mm
Dimmable
Yes
Glare Index (UGR)
17
