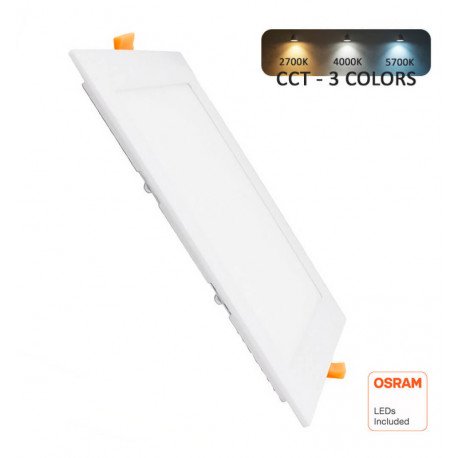

LED Panel Slim Square 24W CCT Recessed OSRAM
LED-00708
New product
1993 Items
Data sheet
| Certificates | CE - ROHS |
| IP Rating | IP20 |
| Construction Material | Aluminum +PC |
| Warranty years | 3 |

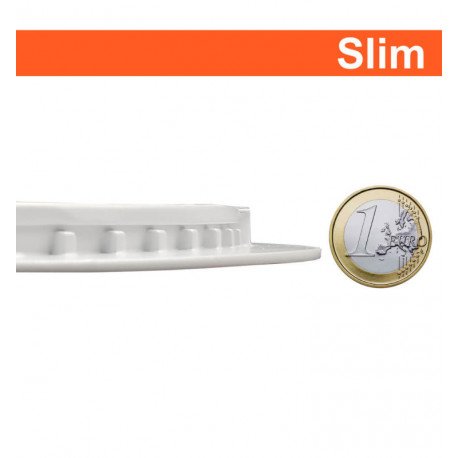

| Dimensions (mm) | Ø225xH22mm |
| Rated Power | 24w |
| Rated Voltage | 85V-265V |
| CRI - Color Rendering Index | 82 |
| Energy Class (2021-EU-2019/2015) | A+ |
| LED Diode Efficacy (Lm/W) | 140 Lm/W |
| Estimated LED Diode Life (H) | 40.000 |
| Operating Frequency (Hz) | 50/60Hz |
| Temperature Range (ºC) | -20°C ~ +55°C |
| Switching Cycles | 100.000 |
| Start-Up Time (s) | 0,2s |
| Energy Class (2023 - EU-2019/2015) | F |
| Light Temperature | 4CCT SELECT 2700K-3000K-4000K-5700K |
| Luminous Flux-Lm | 2400 |

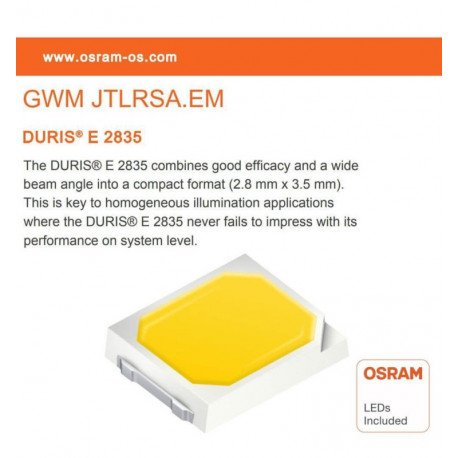

| LED Type | SMD 2835 OSRAM CHIP |
| Beam Angle (º) | 120º |
| Luminous Efficacy (Lm/W) | 100Lm/W |

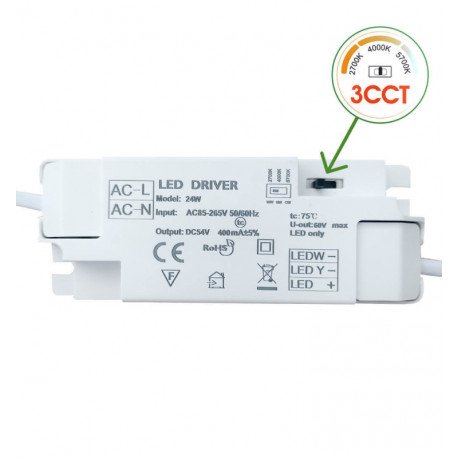

| Driver Included | DRIVER NO FLICK - NO FLICKER |

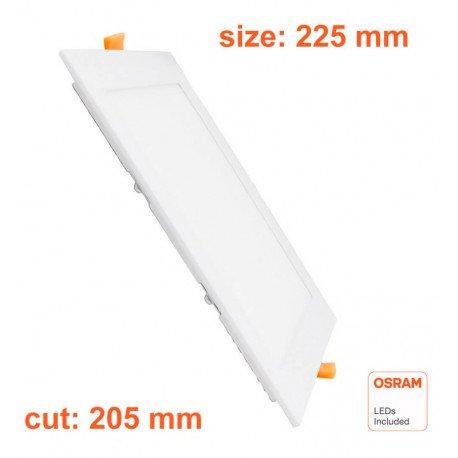

| Ceiling Cut (mm) | Φ205mm |
| Dimmable | NO |
More info
