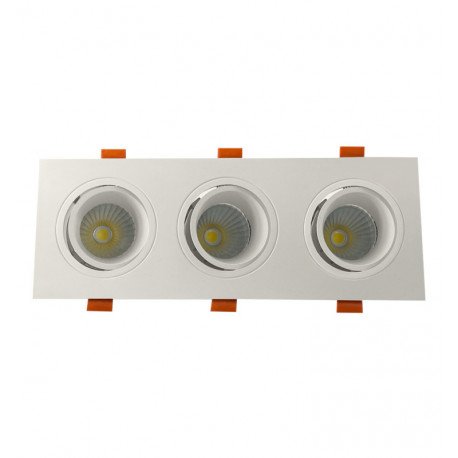

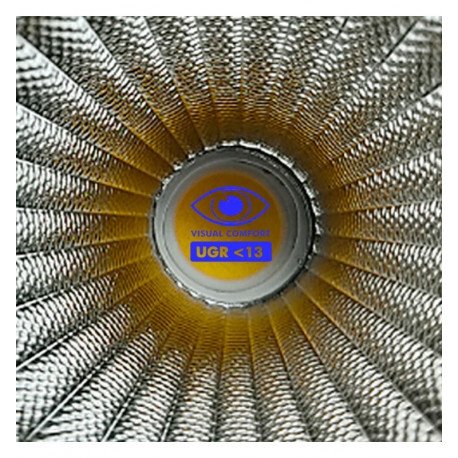

LED Downlight 45W Triple Dimmable CRI+92 UGR13

Technical Features

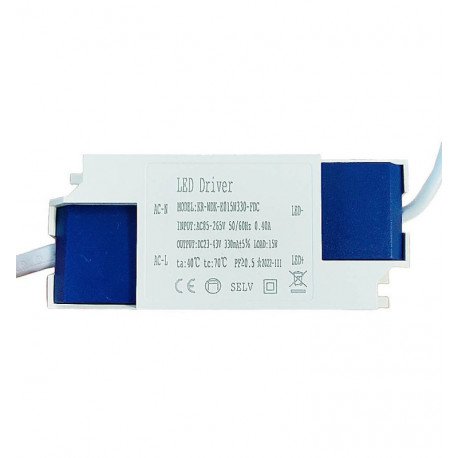

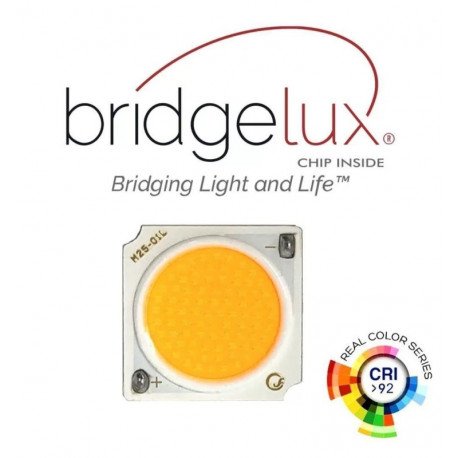

This downlight utilizes a Bridgelux Chip Inside 12C3B LED, delivering consistent performance at a nominal power of 30 W. It includes an external driver to manage higher power levels, which contributes to the extended operational lifetime. The unit operates reliably within temperatures from -20 to 55 °C and supports standard frequencies of 50 and 60 Hz.

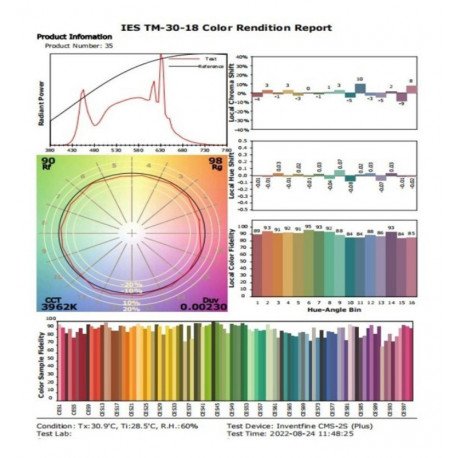

With a beam angle of 36°, the luminaire provides focused light distribution suitable for professional indoor applications. The LED offers an impressively high color rendering index of 92, ensuring excellent color accuracy and vibrant illumination.

Dimming and Controls

Equipped with triple dimmable functionality, the downlight allows smooth brightness adjustments to create the desired ambiance. The device features a fast startup time of 0.2 seconds and supports up to 100,000 switching cycles, enhancing its usability in dynamic lighting environments.

Installation and Protection

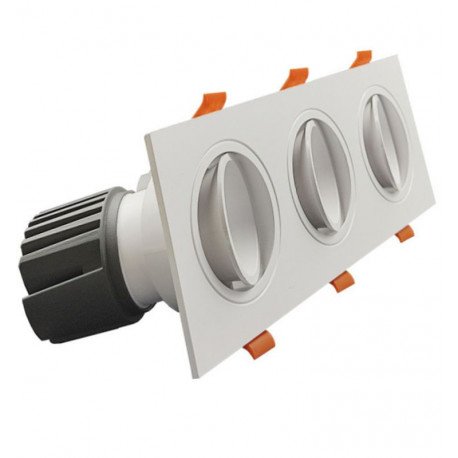

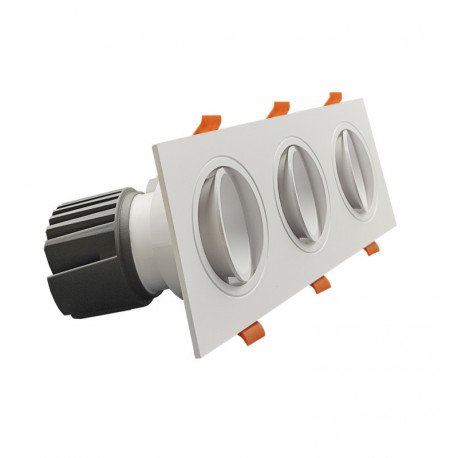

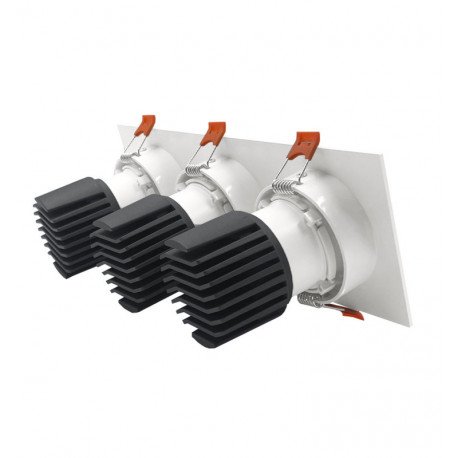

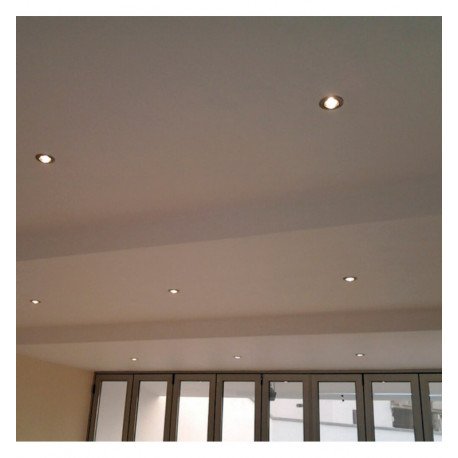

Constructed from durable aluminum and polycarbonate materials, the downlight guarantees robustness and longevity. It holds an ingress protection rating of IP44, providing resistance against splashing water and solid particles, which is suitable for many indoor environments such as offices, retail spaces, and corridors.

Frequently Asked Questions

What color temperature options are available?

The downlight can be purchased with selectable warm white (3000 K) or neutral white (4000 K) color temperatures to suit different interior lighting needs.

Is this downlight suitable for damp locations?

With an IP44 rating, this fixture is protected against water splashes and solid objects, making it appropriate for indoor areas where moisture exposure is possible but not direct water jets or immersion.

How efficient is this LED downlight?

The unit demonstrates a luminous efficacy of 130 lm/W, producing an estimated total luminous flux of 3900 lm at 30 W power consumption, representing efficient lighting performance.
