LED Linear Batten NEW YORK Silver IP54 Dimmable
LED Linear Batten NEW YORK Silver IP54 Dimmable
LED Linear Batten NEW YORK Silver IP54 Dimmable
LED Linear Batten NEW YORK Silver IP54 Dimmable
LED Linear Batten NEW YORK Silver IP54 Dimmable
LED Linear Batten NEW YORK Silver IP54 Dimmable
LED Linear Batten NEW YORK Silver IP54 Dimmable
LED Linear Batten NEW YORK Silver IP54 Dimmable
LED Linear Batten NEW YORK Silver IP54 Dimmable
LED Linear Batten NEW YORK Silver IP54 Dimmable
LED Linear Batten NEW YORK Silver IP54 Dimmable
LED Linear Batten NEW YORK Silver IP54 Dimmable
LED Linear Batten NEW YORK Silver IP54 Dimmable
LED Linear Batten NEW YORK Silver IP54 Dimmable
LED Linear Batten NEW YORK Silver IP54 Dimmable

LED Linear Batten NEW YORK Silver IP54 Dimmable

Certificates CE - ROHS
Construction Material Aluminum +PC
Dimensions (mm) L: 0.44m - 0.94m - 1.44m - 1.94m
Rated Power 7W 0.44m - 14W 0.94m - 21W 1.44m - 28W 1.94m - IP54
Beam Angle (º) 120º
Dimmable TRIAC 40%-100%

New product

Our professional dimmable NEW YORK PLATA linear surface luminaire is designed for intensive 24/7 use. IP54-protected, made in Europe.

More details

1967 Items

64,66 € tax incl.

Métodos de pago

Data sheet

Certificates CE - ROHS

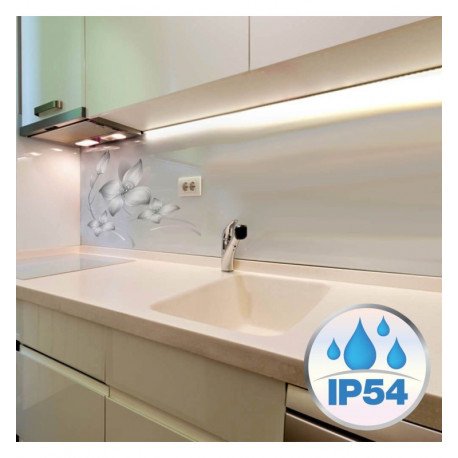

IP Rating IP54
Construction Material Aluminum +PC
Warranty years 5

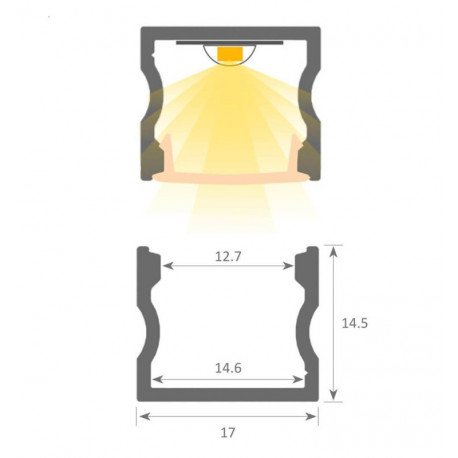

Dimensions (mm) L: 0.44m - 0.94m - 1.44m - 1.94m
Rated Power 7W 0.44m - 14W 0.94m - 21W 1.44m - 28W 1.94m - IP54
Rated Voltage 220-240V
CRI - Color Rendering Index +80
Energy Class (2021-EU-2019/2015) A+
LED Diode Efficacy (Lm/W) 160 Lm/w
Estimated LED Diode Life (H) 40.000
Power Factor (PF) 0.97
Operating Frequency (Hz) 50/60Hz
Temperature Range (ºC) -20°C ~ +55°C
Switching Cycles 100.000
Start-Up Time (s) 0,2s
Energy Class (2023 - EU-2019/2015) G
Light Temperature 2700K - 3000K - 4000K - 6000K
Luminous Flux-Lm 1M:1500Lm/2M: 3000Lm

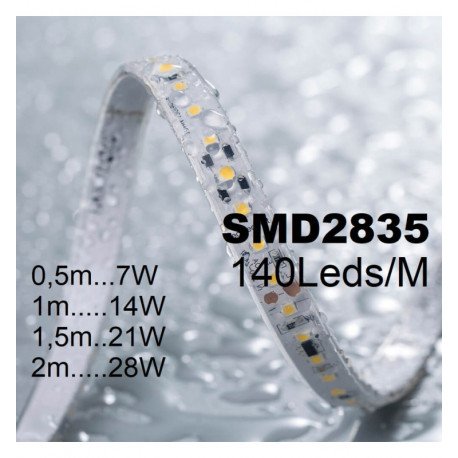

LED Type SMD2835 - 140 LEDs/M PCB12mm
Beam Angle (º) 120º
Luminous Efficacy (Lm/W) 110 Lm/W
Dimmable TRIAC 40%-100%

More info

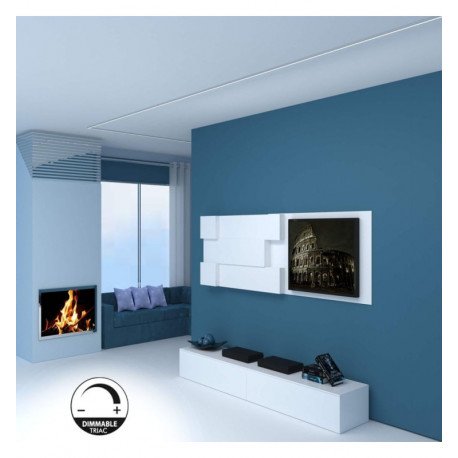

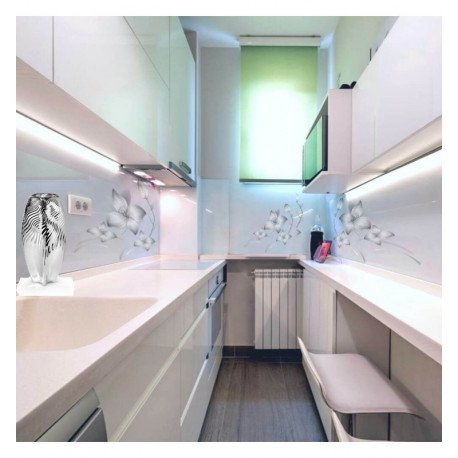

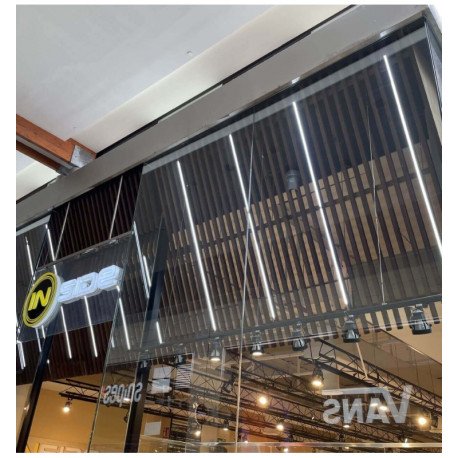

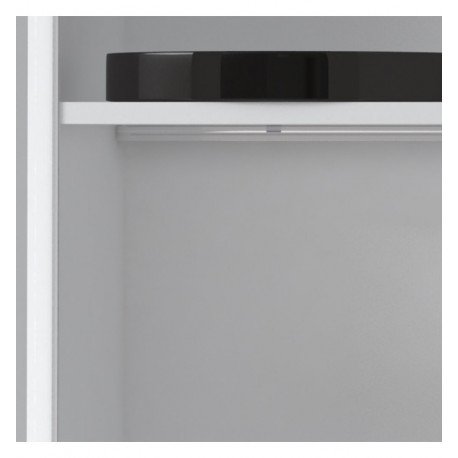

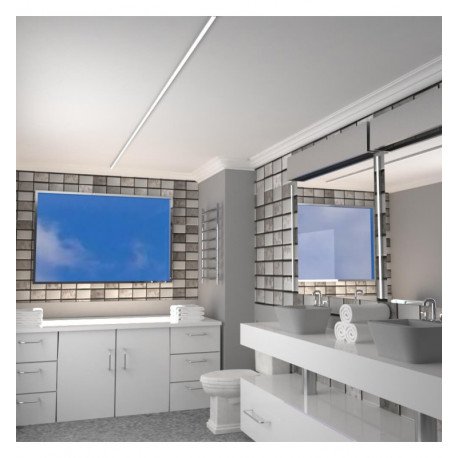

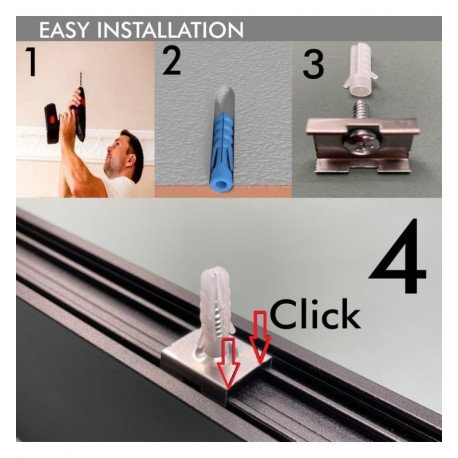

NEW YORK PLATA LED linear batten for surface mounting. A versatile, timeless range that fits interior design thanks to its dimensions and finishes. Designed for continuous intensive use, 24 hours a day, it delivers even, uniform light lines with minimal visual impact. Available in multiple lengths (0.44 m, 0.94 m, 1.44 m and 1.94 m) and designed for ceiling surface mounting or suspended installation as needed. Made in Europe with high-purity extruded aluminum and a light source with IP54 protection. Ideal for creating light lines that shape the space with consistent performance.
