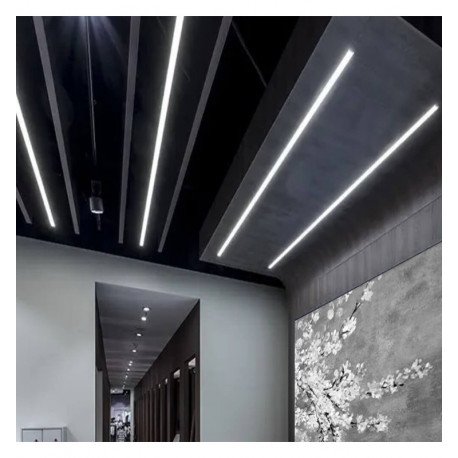

LED Recessed Panel MOSCU MINI Silver IP54
Certificates
CE - ROHS
Construction Material
Aluminum +PC
Dimensions (mm)
L: 0.44m - 0.94m - 1.44m - 1.94m
Rated Power
9W 0.44m -19W 0.94m - 28W 1.44m - 38W 1.94m
Beam Angle (º)
120º
Ceiling Cut (mm)
L: 0.44m - 0.94m - 1.44m - 1.94m * A: 0.38mm

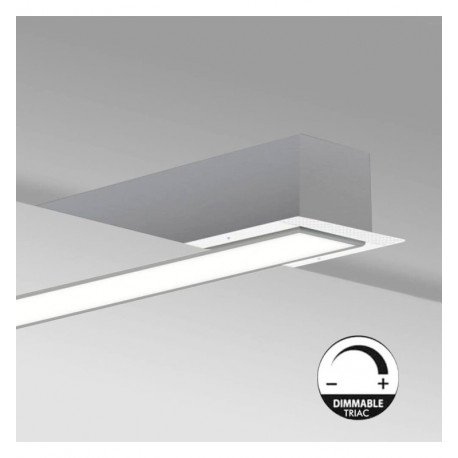

Dimmable
TRIAC 40%-100%
New product
The MOSCU MINI Silver IP54 is a recessed linear LED panel offering a minimalist design with uniform illumination. Available in multiple lengths and color temperatures (2700K, 4000K, 6000K), it features high efficacy (110 lm/W), reliable operation between -20°C and 55°C, and robust build with aluminum and polycarbonate materials.
5793 Items
More info
Recessed linear LED panel MOSCU MINI in silver with IP54 protection. The MOSCU MINI range features a versatile, timeless design, with uniform light lines that blend in with minimal visual impact. Manufactured in Europe, using 98% pure extruded aluminum and an IP67 light source. Designed for continuous intensive use for 24 hours, available in multiple lengths (0.44m, 0.94m, 1.44m, and 1.94m) to suit different lighting needs.
Technical Performance and Durability
The LED Recessed Panel MOSCU MINI Silver IP54 operates efficiently with a power factor of 0.97 and a color rendering index (CRI) greater than 80, ensuring good color accuracy. Its switching life reaches 100000 cycles, supporting extensive use without degradation. The product starts quickly within 0.2 seconds and is designed to function reliably across temperatures from -20 to 55°C.
Installation and Variants
This LED panel comes in four length options (0.44m, 0.94m, 1.44m, and 1.94m) and three selectable color temperatures: warm white (2700K), neutral white (4000K), and cool white (6000K). The aluminum and polycarbonate materials guarantee a robust yet lightweight construction suitable for recessed installation, while IP54 ingress protection safeguards it against dust and water splashes.
Light Distribution and Electrical Specs
The luminaire emits light with a beam angle of 120°, making it suitable for a wide area of illumination with uniform light lines and minimal visual impact. It operates within a voltage range of 220-240 V and supports standard supply frequencies of 50 and 60 Hz, ensuring compatibility with common electrical systems.
Frequently Asked Questions
What color temperatures are available for the MOSCU MINI panel?
The panel is available in warm white (2700K), neutral white (4000K), and cool white (6000K) to suit various lighting needs.
What is the ingress protection rating of this LED panel?
It has an IP54 rating, providing protection from limited dust ingress and water splashes.
Can this product be used continuously for long periods?
Yes, it is designed for continuous intensive use for 24 hours.
View technical specifications Hide technical specifications
Certificates
CE - ROHS
IP Rating
IP54
Construction Material
Aluminum +PC
Warranty years
5
Dimensions (mm)
L: 0.44m - 0.94m - 1.44m - 1.94m
Rated Power
9W 0.44m -19W 0.94m - 28W 1.44m - 38W 1.94m
Rated Voltage
220-240V
CRI - Color Rendering Index
+80
Energy Class (2021-EU-2019/2015)
A+
LED Diode Efficacy (Lm/W)
135Lm/W
Estimated LED Diode Life (H)
50.000
Power Factor (PF)
0.97
Operating Frequency (Hz)
50/60Hz
Temperature Range (ºC)
-20°C ~ +55°C
Switching Cycles
100.000
Start-Up Time (s)
0,2s
Energy Class (2023 - EU-2019/2015)
G
Light Temperature
2700K - 4000K - 6000K
Luminous Flux-Lm
1m 1700Lm - 2m 3200Lm
LED Type
SMD2835 - 140 LEDs/M PCB12mm
Beam Angle (º)
120º
Luminous Efficacy (Lm/W)
110 Lm/W

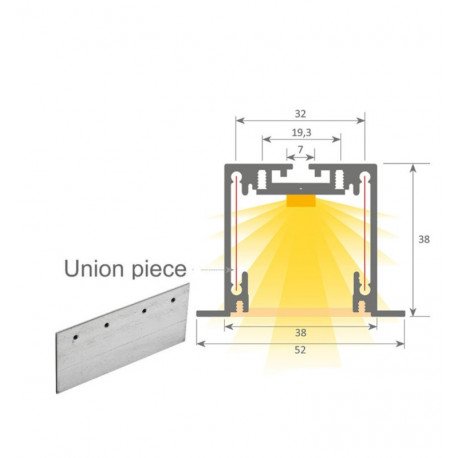

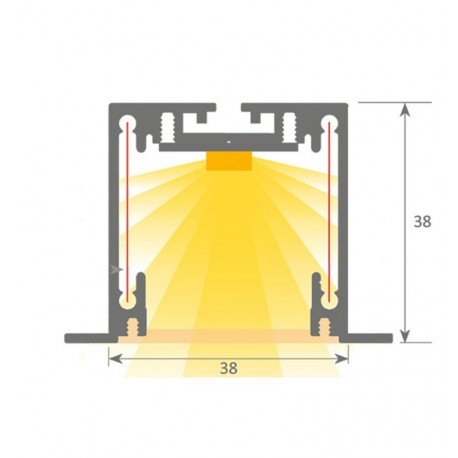

Ceiling Cut (mm)
L: 0.44m - 0.94m - 1.44m - 1.94m * A: 0.38mm
Dimmable
TRIAC 40%-100%

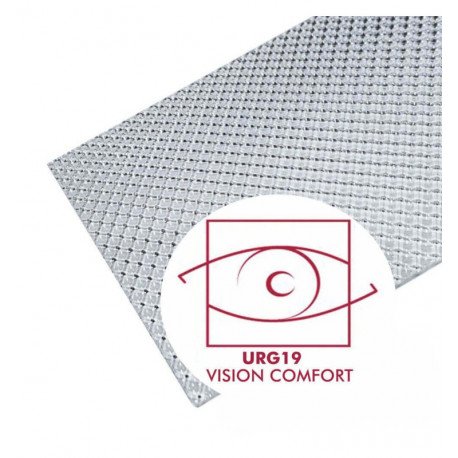

Glare Index (UGR)
17
