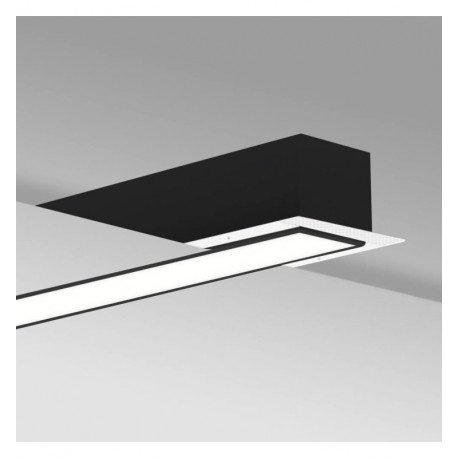

LED Recessed Panel MOSCU MINI Black IP54
Certificates
CE - ROHS
Construction Material
Aluminum +PC

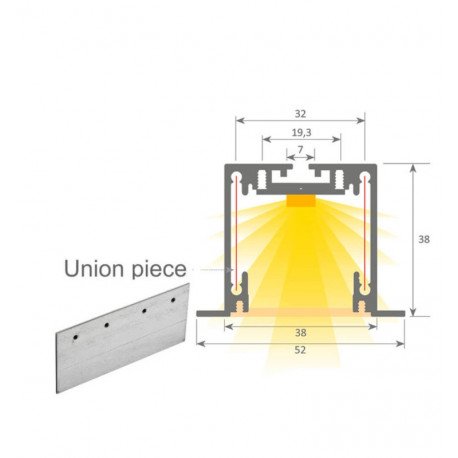

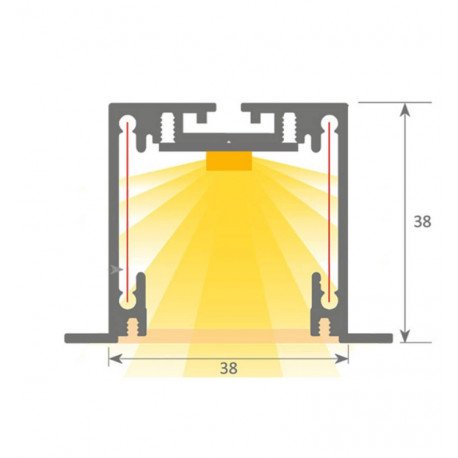

Dimensions (mm)
L: 0.44m - 0.94m - 1.44m - 1.94m.
Rated Power
9W 0.44m -19W 0.94m - 28W 1.44m - 38W 1.94m
Beam Angle (º)
120º
Ceiling Cut (mm)
L: 0.44m - 0.94m - 1.44m - 1.94m * A: 0.38mm

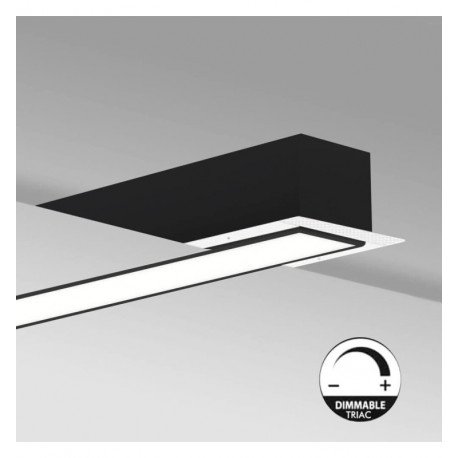

Dimmable
TRIAC 40%-100%
New product
The MOSCU MINI recessed LED panel in black with IP54 rating provides uniform, homogenous lighting suitable for continuous indoor use. Available in multiple lengths and three color temperatures (2700K, 4000K, 6000K), it features a high power factor of 0.97, CRI above 80, and robust aluminum construction for durable performance.
5613 Items
More info

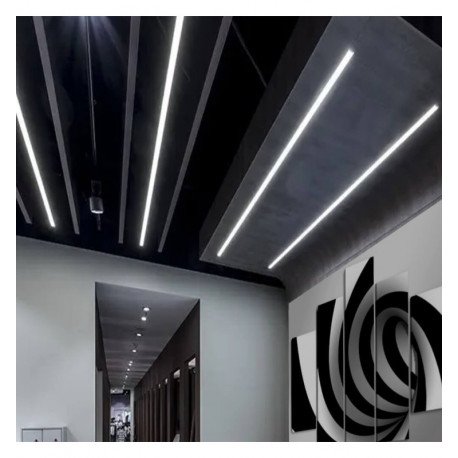

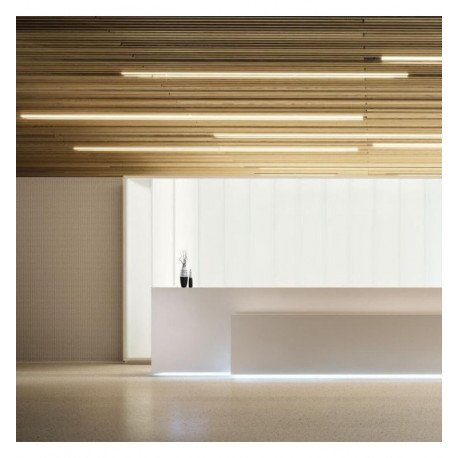

Recessed linear LED panel MOSCU MINI in black, IP54. This versatile, timeless range creates even, homogeneous light lines with minimal visual impact—ideal for interior design and spaces where uniform general lighting is required. Available in multiple lengths (0.44 m, 0.94 m, 1.44 m and 1.94 m) and designed for uninterrupted 24-hour intensive use. Made in Europe with extruded aluminum (98% purity) and an IP54 light source delivering 1,700 lumens per meter. A professional solution for projects that require performance and durability.
Durability and Construction

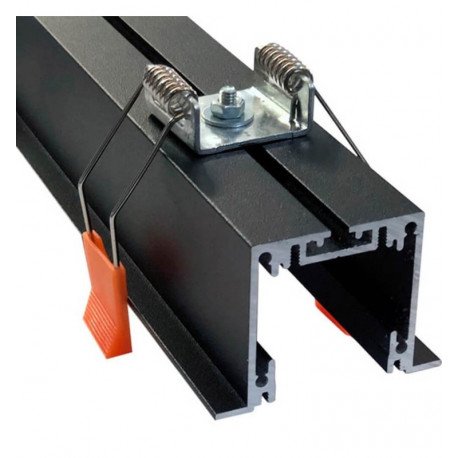

Constructed from high-purity extruded aluminum combined with polycarbonate, the MOSCU MINI panel offers robust resistance and longevity. Its IP54 ingress protection certifies suitability for environments with moderate dust and water exposure, ensuring consistent performance in various indoor settings.
Lighting Performance and Options
Equipped with SMD2835 LEDs arranged at 140 LEDs per meter on a 12mm PCB, this panel delivers even illumination with a 120° beam angle. Users can select the color temperature from warm white (2700K), neutral white (4000K), to cool white (6000K), allowing customization of ambiance per application needs.
Energy and Electrical Characteristics
Operating efficiently at a power factor of 0.97 and accommodating voltages from 220V to 240V at 50-60Hz frequency, the panel boasts a startup time of just 0.2 seconds. It supports up to 100,000 switching cycles, making it reliable for frequent on/off use without degradation.
Frequently Asked Questions
What lengths are available for the MOSCU MINI panel?
The MOSCU MINI is offered in 0.44 m, 0.94 m, 1.44 m, and 1.94 m lengths to suit various installation requirements.
Can I choose different color temperatures?
Yes, this panel is available in 2700K (Warm White), 4000K (Neutral White), and 6000K (Cool White) color temperatures.
Is the panel suitable for damp environments?
With an IP54 rating, the panel is protected against dust ingress and water splashes, making it suitable for damp indoor conditions.
How long is the expected operational lifespan in terms of switching?
The MOSCU MINI supports up to 100,000 switching cycles, providing durability for frequent use.
View technical specifications Hide technical specifications
Certificates
CE - ROHS
IP Rating
IP54
Construction Material
Aluminum +PC
Warranty years
5
Dimensions (mm)
L: 0.44m - 0.94m - 1.44m - 1.94m.
Rated Power
9W 0.44m -19W 0.94m - 28W 1.44m - 38W 1.94m
Rated Voltage
220-240V
CRI - Color Rendering Index
+80
Energy Class (2021-EU-2019/2015)
A+
LED Diode Efficacy (Lm/W)
135Lm/W
Estimated LED Diode Life (H)
50.000
Power Factor (PF)
0.97
Operating Frequency (Hz)
50/60Hz
Temperature Range (ºC)
-20°C ~ +55°C
Switching Cycles
100.000
Start-Up Time (s)
0,2s
Energy Class (2023 - EU-2019/2015)
G
Light Temperature
2700K - 4000K - 6000K
Luminous Flux-Lm
1m 1700Lm - 2m 3200Lm
LED Type
SMD2835 - 140 LEDs/M PCB12mm
Beam Angle (º)
120º
Luminous Efficacy (Lm/W)
110 Lm/W
Ceiling Cut (mm)
L: 0.44m - 0.94m - 1.44m - 1.94m * A: 0.38mm
Dimmable
TRIAC 40%-100%

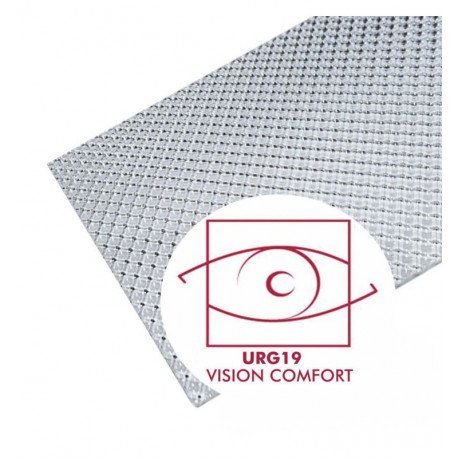

Glare Index (UGR)
17
