LED Linear Pendant Panel MINI MUNICH Silver Dimmable
Certificates
CE - ROHS
Construction Material
Aluminum +PC

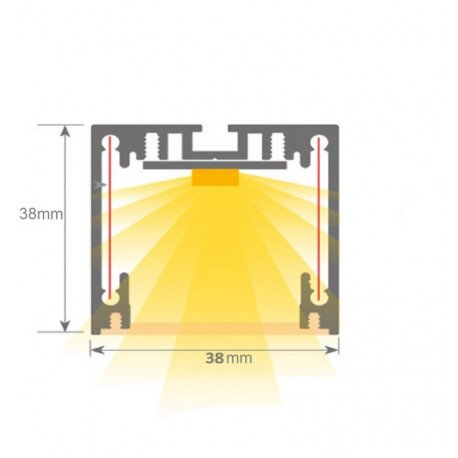

Dimensions (mm)
L: 0.44m - 0.94m - 1.44m - 1.94m
Rated Power
9W 0.44m -19W 0.94m - 28W 1.44m - 38W 1.94m
Beam Angle (º)
120º

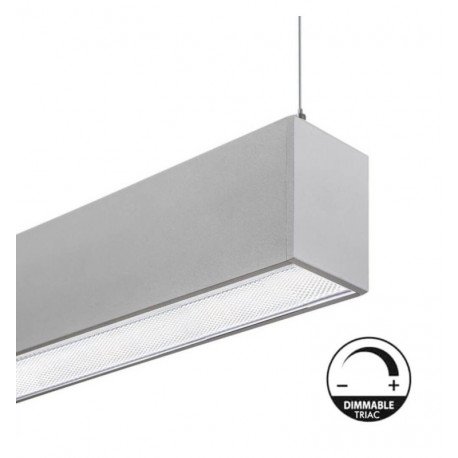

Dimmable
TRIAC 40%-100%
New product
The LED Linear Pendant Panel MINI MUNICH Silver Dimmable offers a sleek, contemporary lighting solution with multiple length and color temperature options. Crafted from aluminum and PC with IP54 protection, it ensures durability and uniform illumination, ideal for both general lighting and defining interior spaces.
5942 Items
More info

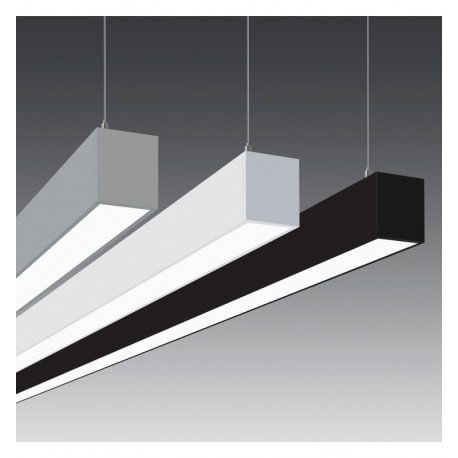

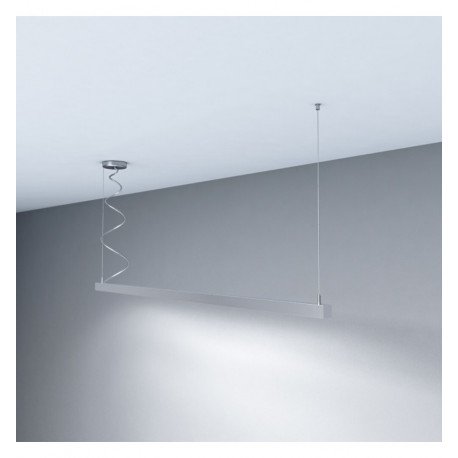

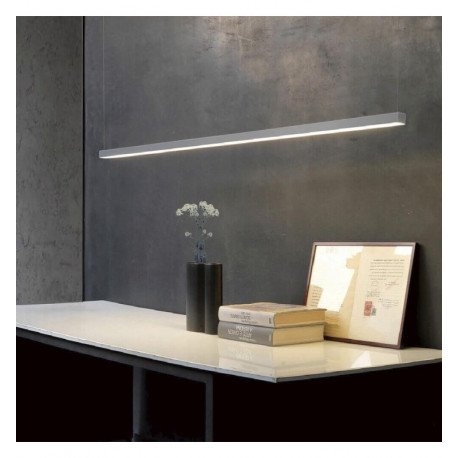

Dimmable MINI MUNICH silver LED linear pendant panel: a versatile, timeless range for interior design. Available in multiple lengths (0.44 m to 1.94 m) and in a suspended version, it creates even, uniform light lines with minimal visual impact. Designed for continuous intensive use of 24 hours, made in Europe with extruded aluminum (98% purity) and an IP54 light source delivering 1,700 lm per m. Suitable for general lighting and for defining spaces with a continuous light line.
Design and Construction

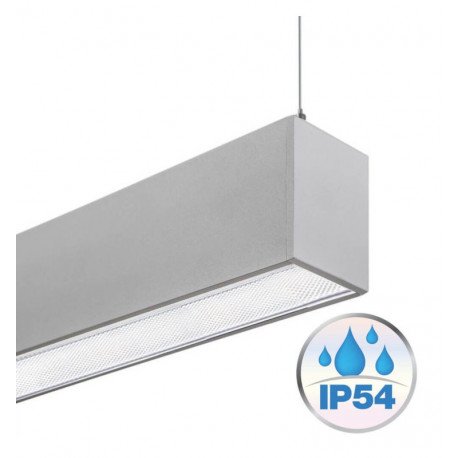

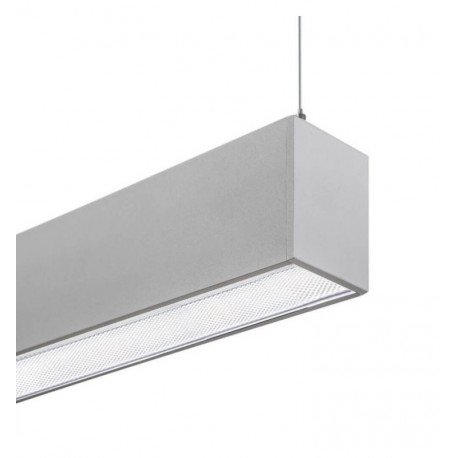

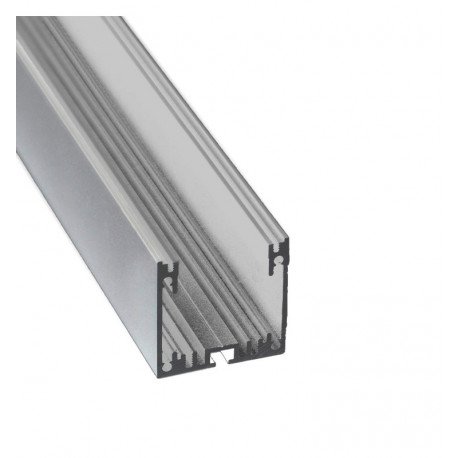

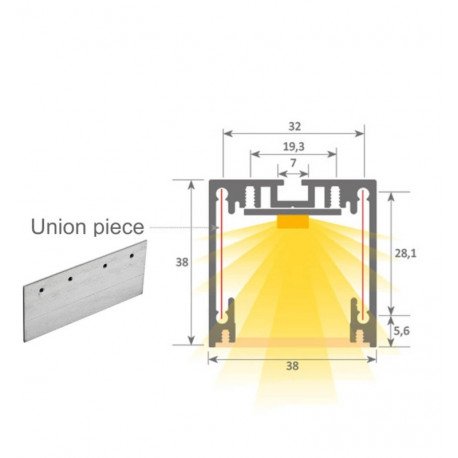

This pendant panel features an extruded aluminum body combined with PC materials, providing a robust yet lightweight construction. Its silver finish adds a modern aesthetic adaptable to various interior environments. The luminaire's IP54 rating protects it against limited dust ingress and water splashes, enhancing its suitability for diverse indoor settings.
Optical and Light Quality

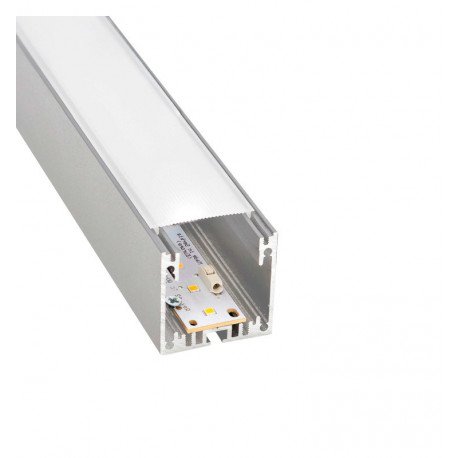

Equipped with high-density SMD2835 LEDs arranged on a 12mm PCB, the panel emits light with a consistent 120° beam angle, delivering wide and even illumination. The LEDs maintain a color rendering index above 80, ensuring colors appear natural and vibrant under its light.
Operational Features
Designed for reliable performance, the panel supports a voltage range from 220 to 240 V with a power factor of 0.97. Its fast startup time of 0.2 seconds and durability through approximately 100000 switching cycles makes it efficient for continuous or frequent usage. The operating temperature range of -20°C to 55°C ensures stable operation across typical indoor climate conditions.
Frequently Asked Questions
What color temperatures are available for the MINI MUNICH panel?
The panel is available in warm white (2700K), neutral white (4000K), and cool white (6000K), allowing selection based on the desired ambiance.
Is the MINI MUNICH suitable for humid indoor environments?
With an IP54 ingress protection rating, it is protected against dust and water splashes, making it suitable for areas with moderate humidity.
Can the length of the MINI MUNICH panel be customized?
Yes, it comes in several fixed lengths ranging from 0.44 m to 1.94 m to fit different spatial requirements.
What type of dimming controls are compatible with this panel?
The product is dimmable, but specific compatible dimming systems should be verified based on installation requirements as they are not specified in the provided data.
View technical specifications Hide technical specifications
Certificates
CE - ROHS
IP Rating
IP54
Construction Material
Aluminum +PC
Warranty years
5
Dimensions (mm)
L: 0.44m - 0.94m - 1.44m - 1.94m
Rated Power
9W 0.44m -19W 0.94m - 28W 1.44m - 38W 1.94m
Rated Voltage
220-240V
CRI - Color Rendering Index
+80
Energy Class (2021-EU-2019/2015)
A+
LED Diode Efficacy (Lm/W)
135Lm/W
Estimated LED Diode Life (H)
50.000
Power Factor (PF)
0.97
Operating Frequency (Hz)
50/60Hz
Temperature Range (ºC)
-20°C ~ +55°C
Switching Cycles
100.000
Start-Up Time (s)
0,2s
Energy Class (2023 - EU-2019/2015)
G
Luminous Flux-Lm
1m 1700Lm - 2m 3200Lm

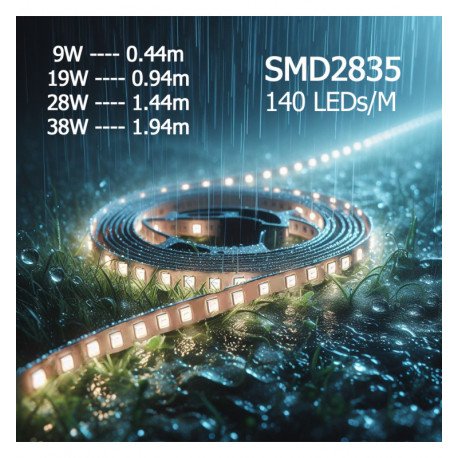

LED Type
SMD2835 - 140 LEDs/M PCB12mm
Beam Angle (º)
120º
Luminous Efficacy (Lm/W)
110 Lm/W
Dimmable
TRIAC 40%-100%
Glare Index (UGR)
17
