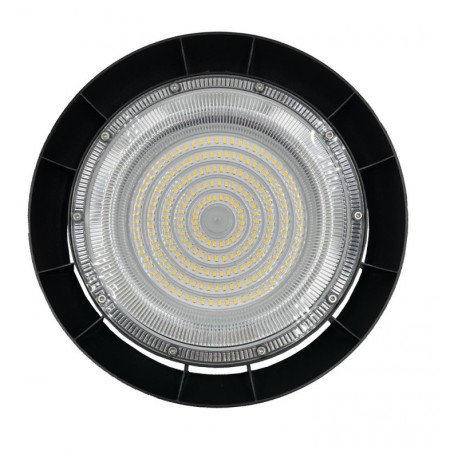

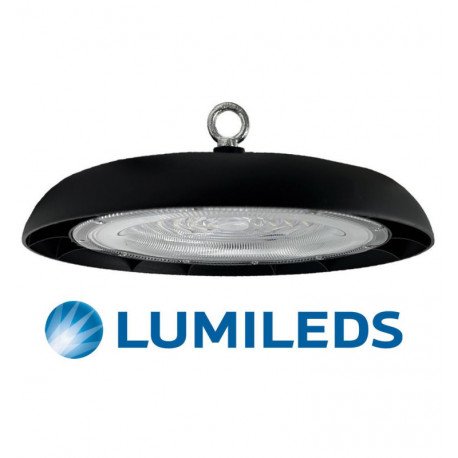

LED High Bay UFO 200W 3CCT LUMILEDS SMD 2835
LED High Bay UFO 200W 3CCT LUMILEDS SMD 2835
LED High Bay UFO 200W 3CCT LUMILEDS SMD 2835
LED High Bay UFO 200W 3CCT LUMILEDS SMD 2835
LED High Bay UFO 200W 3CCT LUMILEDS SMD 2835
LED High Bay UFO 200W 3CCT LUMILEDS SMD 2835
LED High Bay UFO 200W 3CCT LUMILEDS SMD 2835
LED High Bay UFO 200W 3CCT LUMILEDS SMD 2835
LED High Bay UFO 200W 3CCT LUMILEDS SMD 2835
LED High Bay UFO 200W 3CCT LUMILEDS SMD 2835
LED High Bay UFO 200W 3CCT LUMILEDS SMD 2835
LED High Bay UFO 200W 3CCT LUMILEDS SMD 2835
LED High Bay UFO 200W 3CCT LUMILEDS SMD 2835
LED High Bay UFO 200W 3CCT LUMILEDS SMD 2835
LED High Bay UFO 200W 3CCT LUMILEDS SMD 2835
LED High Bay UFO 200W 3CCT LUMILEDS SMD 2835

LED High Bay UFO 200W 3CCT LUMILEDS SMD 2835

Certificates CE, CMIM, RoHS
Construction Material Aluminum +PC

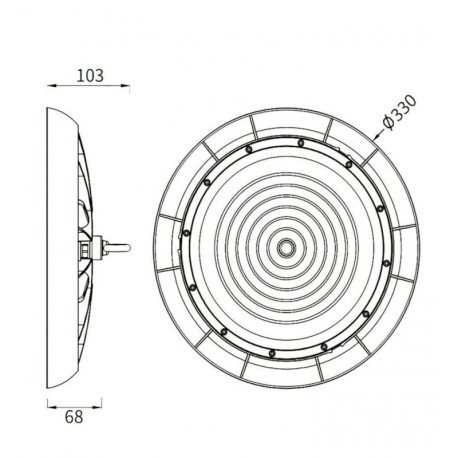

Dimensions (mm) Ø330XH68mm
Beam Angle (º) 90º

New product

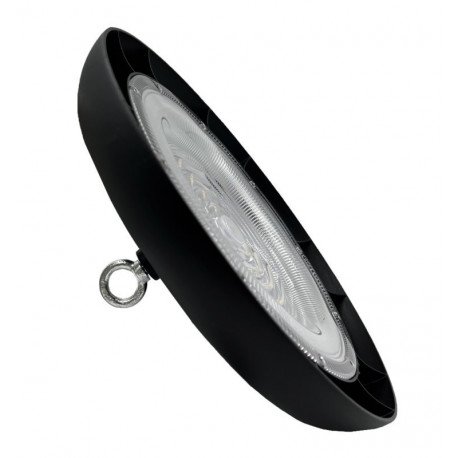

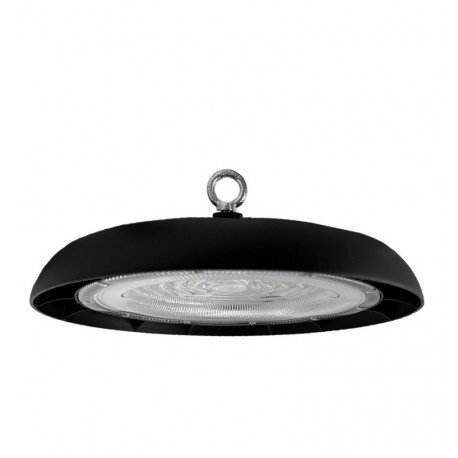

LED UFO High Bay TITAN 200W NEW TITAN 3CCT with LUMILEDS SMD 2835 chips. Up to 130 lm/W, CRI +80 and power factor +0.9. No Flicker driver and 90° lens for uniform, non-flicker lighting.

More details

1215 Items

464,33 € tax incl.

Métodos de pago

Data sheet

Certificates CE, CMIM, RoHS

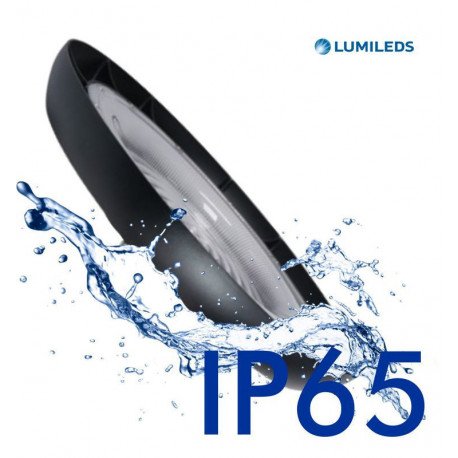

IP Rating IP65-Exterior
Construction Material Aluminum +PC
Warranty years 3
Dimensions (mm) Ø330XH68mm
Rated Voltage AC180-265V
CRI - Color Rendering Index +80
Energy Class (2021-EU-2019/2015) A+
LED Diode Efficacy (Lm/W) 130Lm/W
Estimated LED Diode Life (H) 35.000
Power Factor (PF) 0.95
Operating Frequency (Hz) 50/60Hz
Temperature Range (ºC) -20°C ~ +55°C
Switching Cycles 100.000
Start-Up Time (s) 0,2s
Impact Protection (IK) IK08
Energy Class (2023 - EU-2019/2015) E

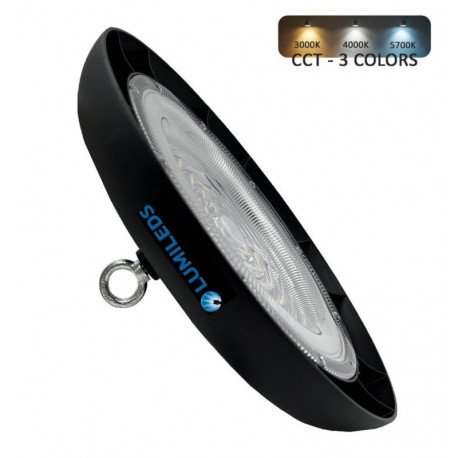

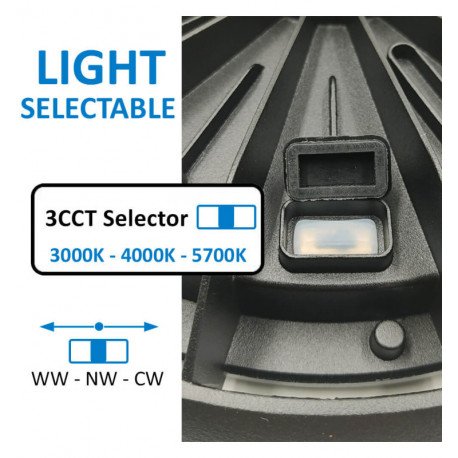

Light Temperature 3CCT SELECT 3000K-4000K-5700K
Luminous Flux-Lm 16500
LED Type SMD DURIS E 2835 OSRAM CHIPLED
Beam Angle (º) 90º
Luminous Efficacy (Lm/W) 110Lm/W

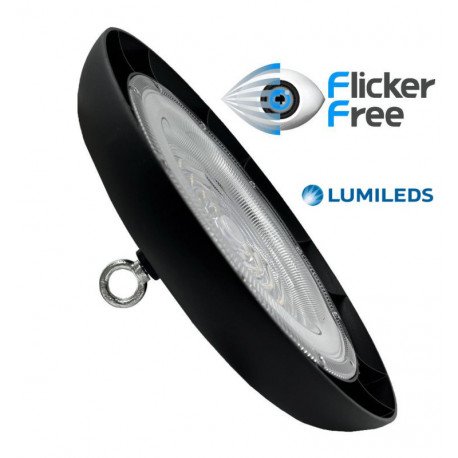

Driver Included DRIVER NO FLICK - NO FLICKER
Units per Masterbox 1

More info

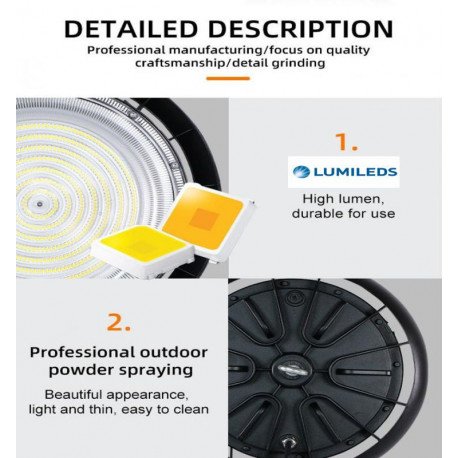

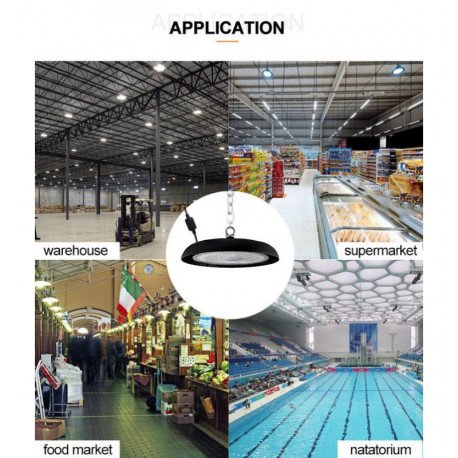

The NEW TITAN 200W UFO CCT LED High Bay is designed to deliver high efficiency and durability in demanding industrial environments. It features LUMILEDS SMD 2835 chips, reaching up to 130 lm/W, with CRI above +80 for more accurate color rendering. Its No Flicker technology helps reduce flicker, while the 90° lens provides uniform illumination. In addition, it has a power factor of +0.9 for better energy utilization. The NEW TITAN 3CCT version lets you choose between three color temperatures to match different lighting needs.
