LED Ceiling 360° Recessed Motion Detector 220-240V
LED-00098
Certificates
CE - ROHS
Construction Material
Flame-Retardant Thermoplastic

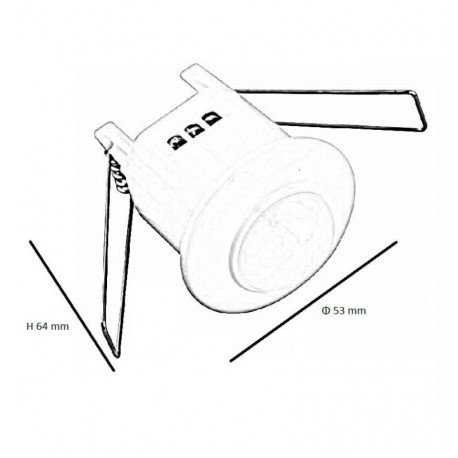

Dimensions (mm)
Φ53*H64mm,
Rated Power
Max. 800W (incandescent). 400W (LED)
Beam Angle (º)
360º
Ceiling Cut (mm)
Φ40mm
New product
The LED Ceiling 360° Recessed Motion Detector is a ceiling-mounted PIR sensor designed for full 360° coverage within a 6 m radius. Operating on 220-240V AC, it automates lighting by detecting thermal motion and offers adjustable timing and light sensitivity for customized control.
508 Items
More info
Recessed ceiling presence detector with full 360° coverage and up to 6 m range. Ideal for automating lighting in a practical and comfortable way. It uses PIR (infrared) motion detection, which senses movement through invisible thermal emissions generated by people and other heat sources. When motion is detected, it automatically switches the lighting circuit on and turns it off after the configured delay time. Designed for ceiling installation at a recommended height of 2.2 to 4 meters. Power supply: 220–240V/AC. Adjustable timing from 10 seconds to 15 minutes, with adjustable light sensitivity.
Durable and Safe Construction
Constructed from flame-retardant thermoplastic, this detector ensures enhanced safety and long-lasting durability suitable for indoor environments with protection rating IP20.
Reliable Performance and Longevity
Equipped to endure up to 100000 switching cycles, this motion detector offers dependable service over extended usage periods. Its rapid startup time of 0.2 seconds ensures immediate response upon detecting motion.

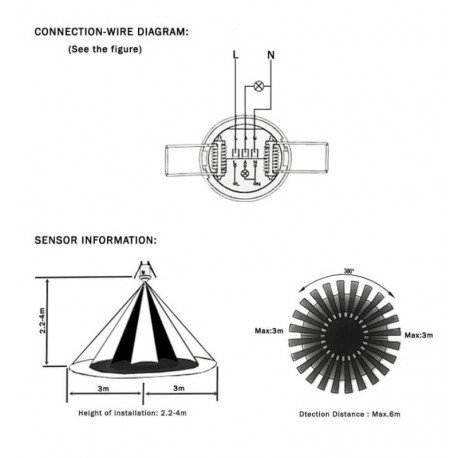

Installation and Electrical Compatibility
Compatible with standard 50 or 60 Hz frequency power supplies, the device is straightforward to install in ceilings at recommended heights between 2.2 and 4 meters for optimal detection coverage.
Frequently Asked Questions
What is the coverage area of this motion detector?
It provides full 360° detection coverage with an effective range of up to 6 meters, ideal for room-wide presence detection.

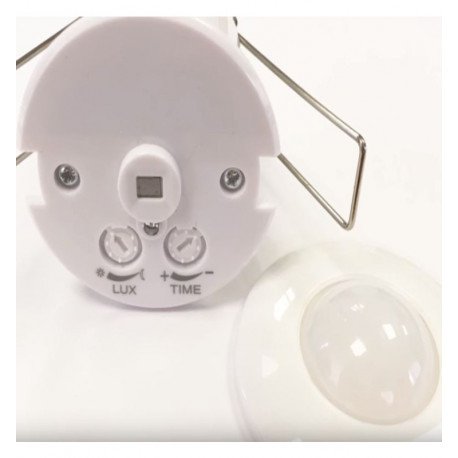

Can the sensitivity and timing be adjusted?
Yes, both the delay time (from 10 seconds to 15 minutes) and light sensitivity can be adjusted to fit specific lighting automation needs.
Is the material resistant to fire?
The detector is made of thermoplastic with flame-retardant properties, enhancing safety during use.
View technical specifications Hide technical specifications
Certificates
CE - ROHS
IP Rating
IP20
Construction Material
Flame-Retardant Thermoplastic
Warranty years
3
Dimensions (mm)
Φ53*H64mm,
Rated Power
Max. 800W (incandescent). 400W (LED)
Rated Voltage
220-240 V AC
Estimated LED Diode Life (H)
30.000
Operating Frequency (Hz)
50/60Hz
Temperature Range (ºC)
-20~+40C
Switching Cycles
100.000
Start-Up Time (s)
0,2s
Beam Angle (º)
360º
Additional Information
3-2000 LUx (adjustable)
Control Modes
INFRARED
Range (m)
6 m.
Ceiling Cut (mm)
Φ40mm
