LED PIR Mini Motion Sensor 220-240V 120° 360°
LED PIR Mini Motion Sensor 220-240V 120° 360°
LED PIR Mini Motion Sensor 220-240V 120° 360°
LED PIR Mini Motion Sensor 220-240V 120° 360°

LED PIR Mini Motion Sensor 220-240V 120° 360°

LED-00875

Certificates CE - ROHS
Construction Material Flame-Retardant Thermoplastic
Dimensions (mm) L47*W25*H20mm
Rated Power 100w
Beam Angle (º) 120º/360º

New product

Ultracompact PIR motion detector (2 cm) with built-in light sensor, adjustable time, and 360° coverage. Range up to 8 m.

More details

932 Items

14,23 € tax incl.

Métodos de pago

Data sheet

Certificates CE - ROHS
IP Rating IP44
Construction Material Flame-Retardant Thermoplastic
Warranty years 3
Dimensions (mm) L47*W25*H20mm
Rated Power 100w
Rated Voltage 220-265v
Estimated LED Diode Life (H) 30.000
Operating Frequency (Hz) 50/60Hz
Temperature Range (ºC) -20°C ~ +55°C
Switching Cycles 100.000
Start-Up Time (s) 0,2s
Beam Angle (º) 120º/360º
Additional Information Time: 5"-30"-1min -3 min- 5min-8 min. Ambient Light: 10 LUX/2000LUX
Control Modes INFRARED
Range (m) 3m/6m.

More info

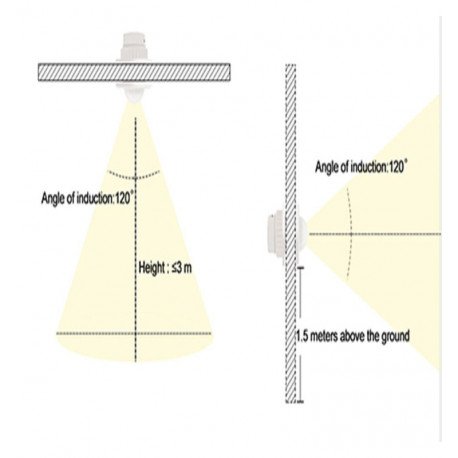

The LED PIR Mini 220-240V motion sensor features an ultracompact design with just a 2 cm diameter, designed to blend in discreetly in any space. It includes an integrated light sensor and lets you adjust the on-time and light sensitivity for more precise operation. Detection range reaches up to 8 meters and provides full 360° coverage with a 120° detection angle, helping ensure reliable activation when motion is detected using infrared technology. Ideal for automating lighting and improving comfort with more efficient switching.
