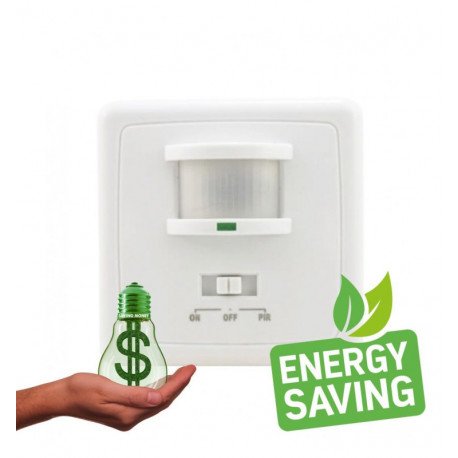

LED Wall Motion Sensor 160° Indoor
LED Wall Motion Sensor 160° Indoor
LED Wall Motion Sensor 160° Indoor
LED Wall Motion Sensor 160° Indoor
LED Wall Motion Sensor 160° Indoor
LED Wall Motion Sensor 160° Indoor
LED Wall Motion Sensor 160° Indoor

LED Wall Motion Sensor 160° Indoor

LED-00133

Certificates CE - ROHS
Dimensions (mm) 80 x 80 x 47 mm
Rated Power 1200W (Incandescent) 300W (LED)
Beam Angle (º) 160º

New product

Wall motion detector with 160° detection range, ideal for indoor junction boxes and passage areas. IP20.

More details

914 Items

17,04 € tax incl.

Métodos de pago

Data sheet

Certificates CE - ROHS
IP Rating IP20
Warranty years 3
Dimensions (mm) 80 x 80 x 47 mm
Rated Power 1200W (Incandescent) 300W (LED)
Rated Voltage 220V-240V AC
Estimated LED Diode Life (H) 30.000
Operating Frequency (Hz) 50/60Hz
Temperature Range (ºC) -20°C ~ +55°C
Switching Cycles 100.000
Beam Angle (º) 160º
Range (m) 9 m.
Switching On Time Min: 10 Sec (+ - 3 sec) Max: 7 min. (+- 2m.)

More info

This wall-mounted motion detector starts operating when it detects any movement in the monitored area. It is a recessed presence sensor with invisible infrared emissions and no radiation. With a 160° detection angle, it is ideal for controlling indoor areas such as hallways and passage spaces (IP20). Designed for lower power consumption and compatible with LED lighting (up to 200W for LED and 600W for incandescent).
