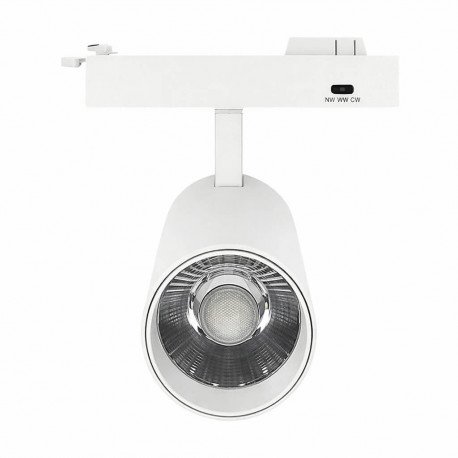

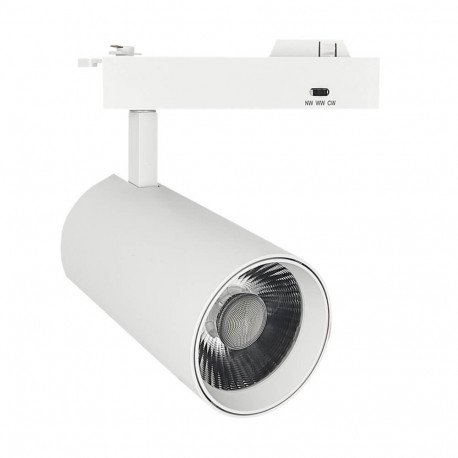

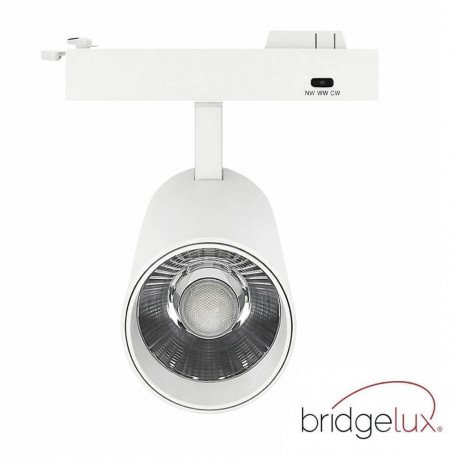

LED Track Light 30W BRAGA 3CCT CRI+90 40°
LED-00929
Certificates
CE - ROHS
Construction Material
Aluminum +PMMA
Dimensions (mm)
100x175x180mm
Rated Power
30W
Beam Angle (º)
24º/40º
New product
The BRAGA 30W LED track light combines high performance with versatile color temperature options (3000K, 4000K, 6000K) and excellent color rendering (CRI 92). With a sturdy aluminum and PMMA construction and IK10 impact resistance, it delivers efficient 3900 lm output and reliable operation for various professional lighting applications.
55 Items
More info
The BRAGA 30W LED track light for single-phase is designed for professional lighting with strong performance and great versatility. It features a Bridgelux chip and 3CCT technology, letting you easily select 3000K (warm), 4000K (neutral) or 6000K (cool) without changing the fixture, making it suitable for different spaces and needs. In addition, CRI+90 helps reproduce colors with greater accuracy for a more natural, appealing result. Ideal for projects where light makes the difference, with a 40° beam angle.
Robust and Reliable Construction
Constructed from aluminum and PMMA, the BRAGA track light ensures durability and quality finish. Its IK10 impact protection rating offers excellent resistance against mechanical impacts, making it suitable for demanding indoor environments where robustness is essential.
Efficient and High-Quality Lighting

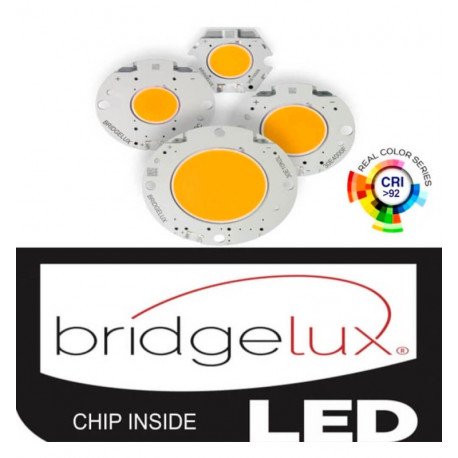

With a luminous efficacy of 130 lm/W and an estimated luminous flux of 3900 lm at 30W power, this LED track light provides bright, efficient illumination. The use of Bridgelux COB technology guarantees a focused and consistent light output.
Equipped with a no flicker driver, the fixture minimizes visual discomfort and supports smooth dimming performance.
Flexible Installation and Operation
Designed for single-phase track systems, the BRAGA light fits seamlessly into professional lighting setups. It operates within a voltage range of 175-265 V and functions at both 50 Hz and 60 Hz frequencies, ensuring compatibility with common electrical standards. Its rapid startup time of 0.2 seconds allows immediate full brightness when switched on.
Frequently Asked Questions
What color temperature options does the BRAGA track light offer?

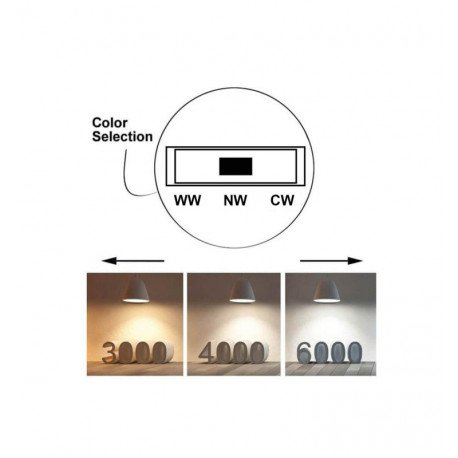

It offers three selectable color temperatures: 3000K (warm), 4000K (neutral), and 6000K (cool) in one fixture without needing to change the luminaire.
What is the beam angle of this lighting fixture?

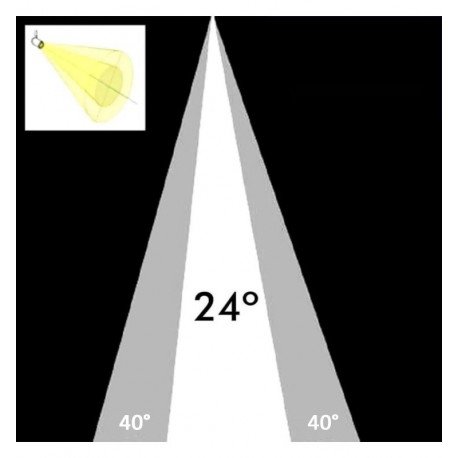

Two beam angle options are available at purchase: 24° and 40°, with the 40° angle highlighted for general use.
How resistant is the fixture to impacts?
The BRAGA track light is rated IK10 for impact protection, indicating a high degree of resistance to mechanical impacts.
Is there flicker in the light output?
No, it includes a driver specified as "NO FLICKER," promoting comfortable, stable illumination without flickering.
View technical specifications Hide technical specifications
Certificates
CE - ROHS
IP Rating
IP20
Construction Material
Aluminum +PMMA
Warranty years
3
Dimensions (mm)
100x175x180mm
Rated Power
30W
Rated Voltage
175-265V
CRI - Color Rendering Index
92
Energy Class (2021-EU-2019/2015)
A+
LED Diode Efficacy (Lm/W)
130Lm/W
Estimated LED Diode Life (H)
35.000
Power Factor (PF)
0.95
Operating Frequency (Hz)
50/60Hz
Temperature Range (ºC)
-20º ~ +40º
Switching Cycles
100.000
Start-Up Time (s)
0,2s
Impact Protection (IK)
IK10
Energy Class (2023 - EU-2019/2015)
E
Light Temperature
3000K - 4000K - 6000K
Luminous Flux-Lm
3000
LED Type

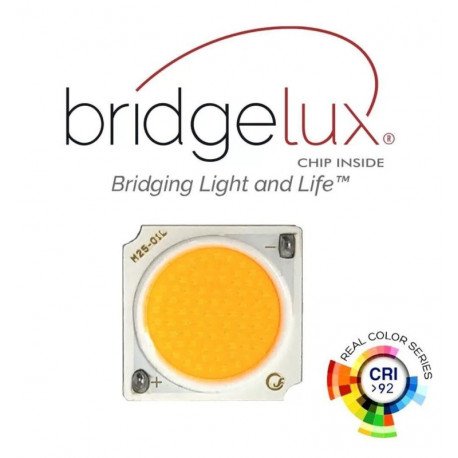

COB BRIDGELUX CHIP 1530DS-C30
Beam Angle (º)
24º/40º
Luminous Efficacy (Lm/W)
130 Lm/W
Additional Information
Painting: AkzoNobel Interpon 600 C33883
Driver Included
DRIVER NO FLICK - NO FLICKER
Body Color
White
Units per Masterbox
20
