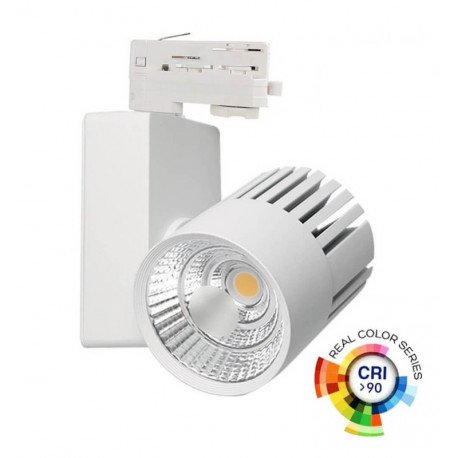

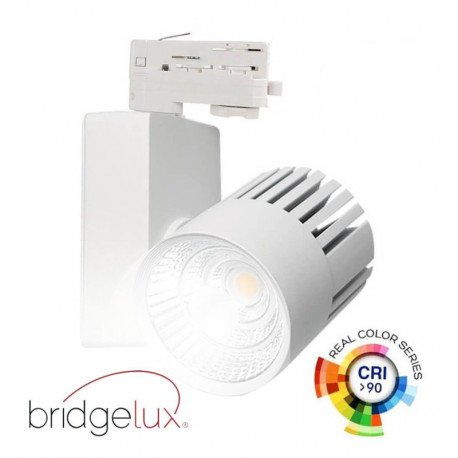

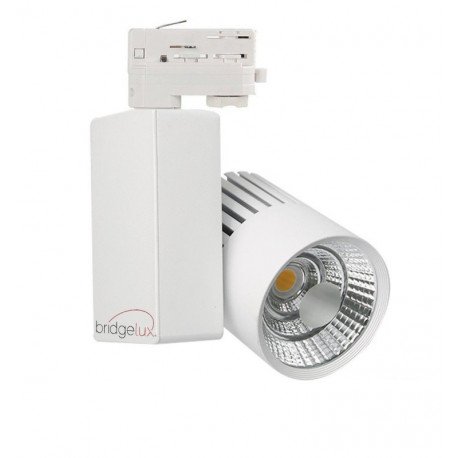

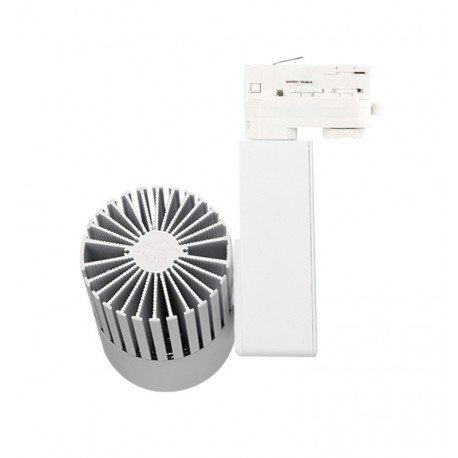

LED Track Light 40W 3CCT Bridgelux 4400Lm CRI+98
LED-00821
Certificates
CE, CMIM, RoHS
Construction Material
Aluminum +PMMA

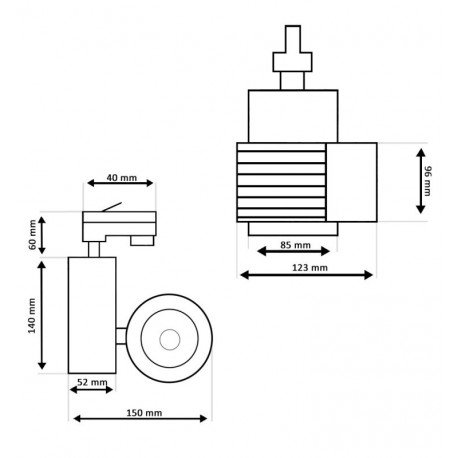

Dimensions (mm)
Driver: 140 x 52 x 85 mm
Rated Power
40W
Beam Angle (º)
48º
New product
The GRAZ 40W LED track light with a Bridgelux chip offers selectable color temperatures at 2700K, 4000K, and 5700K and an excellent CRI of 98 for superior color rendering. Featuring a 48° beam angle and 4400 lm estimated output, it is engineered for efficient spotlighting on 3-phase tracks in retail and gallery spaces.
This product is no longer in stock
More info

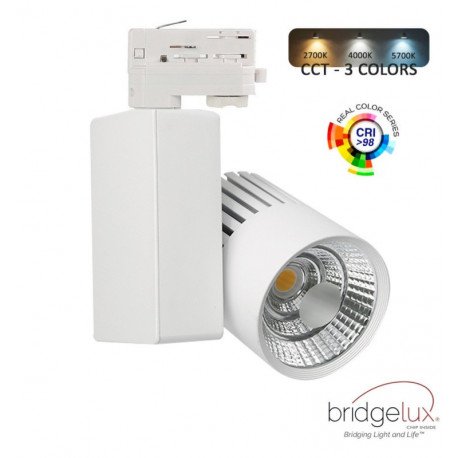

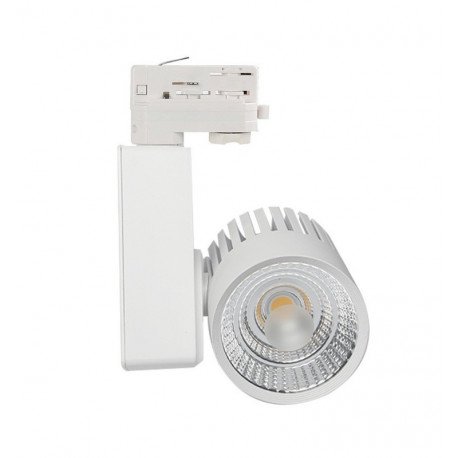

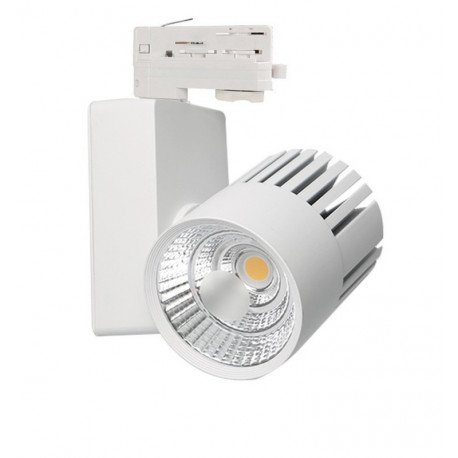

GRAZ 40W white LED track light with Bridgelux chip for 3-phase track, featuring a 3CCT selector to choose 2700K, 4000K, or 5700K depending on the setting. It delivers 4400 lumens and CRI +98 to enhance color accuracy, ideal for highlighting details in shops, galleries, and display areas. With a 48° beam angle, it provides precise, even illumination while combining efficiency and versatility for 3-phase track systems.
Durable Construction and Materials
Constructed with a combination of aluminum and PMMA, the luminaire ensures a lightweight yet robust build suitable for indoor environments with an IP20 ingress protection rating. This material choice supports effective heat dissipation and longevity while maintaining a sleek aesthetic for versatile mounting.
Electrical and Operational Performance
Designed to operate at standard frequencies of 50 or 60 Hz with a power factor of 0.92, this track light features a rapid startup time of 0.2 seconds. It is rated for up to 100000 switching cycles, indicating reliable performance in applications with frequent on/off use.
Optical Characteristics

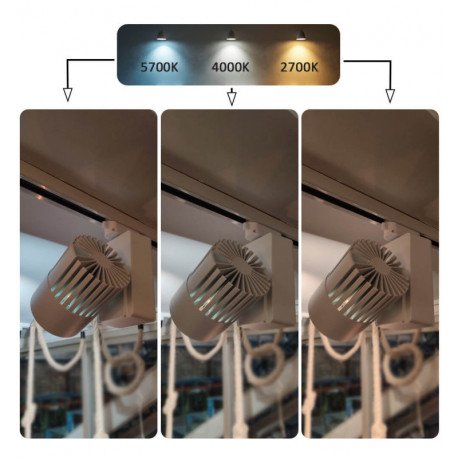

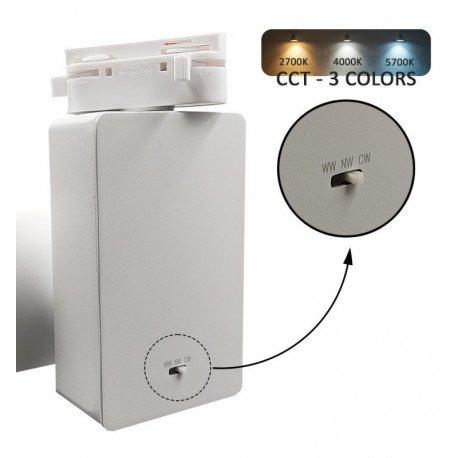

Equipped with a single 48° beam angle optic, the luminaire delivers focused and uniform lighting. Its 3CCT selectable function allows users to tailor the color temperature to ambient lighting conditions or desired mood, making it adaptable for various commercial lighting needs.
Frequently Asked Questions
What color temperature options does this track light offer?
This track light features a selectable 3CCT function with color temperatures of 2700K, 4000K, and 5700K.
What is the beam angle of this LED track light?
The luminaire comes with a 48° beam angle, providing a moderate spread suitable for accent and display lighting.
Is this track light suitable for use in damp environments?
No, with an IP20 rating, this track light is intended for indoor use in dry environments only.
How long does it take for the light to reach full brightness after switching on?
It achieves full brightness quickly with a startup time of 0.2 seconds.
View technical specifications Hide technical specifications
Certificates
CE, CMIM, RoHS
IP Rating
IP20
Construction Material
Aluminum +PMMA
Warranty years
3
Dimensions (mm)
Driver: 140 x 52 x 85 mm
Rated Power
40W
Rated Voltage
220V-240V AC
CRI - Color Rendering Index
98
Energy Class (2021-EU-2019/2015)
A+
LED Diode Efficacy (Lm/W)
130Lm/W
Estimated LED Diode Life (H)
35.000
Power Factor (PF)
0.92
Operating Frequency (Hz)
50/60Hz
Temperature Range (ºC)
+40ºC ~ -20ºC
Switching Cycles
100.000
Start-Up Time (s)
0,2s
Energy Class (2023 - EU-2019/2015)
F
Light Temperature
3CCT SELECT 2700K-4000K-5700K
Luminous Flux-Lm
4400Lm

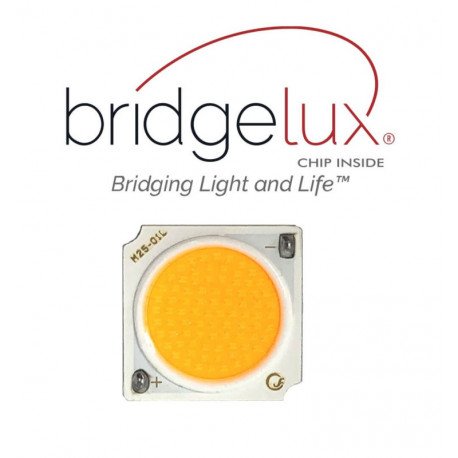

LED Type
SMD 3030- (4Cores) BRIDGELUX CHIP 2240DS-C30
Beam Angle (º)
48º
Luminous Efficacy (Lm/W)
110 Lm/W
Additional Information
Painting: AkzoNobel Interpon 600 C33883
Units per Masterbox
10
