LED Track Light 40W-28W CCT CRI+92 UGR13 24°

Design and Build Quality

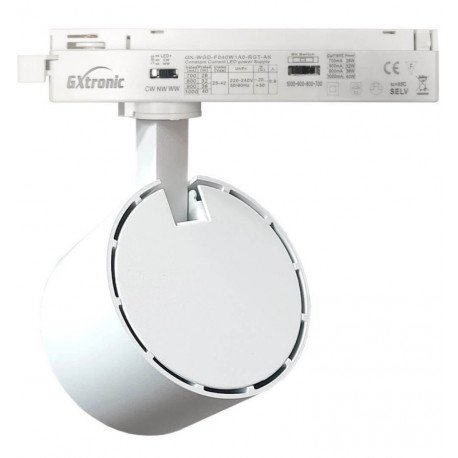

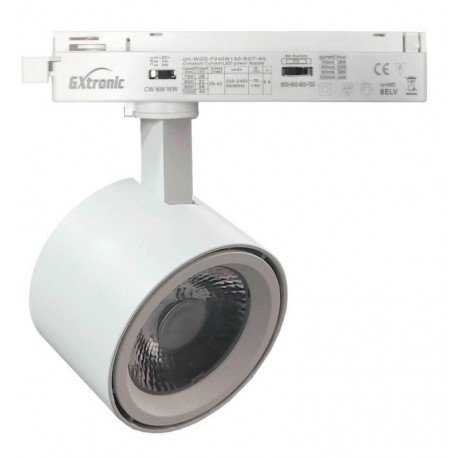

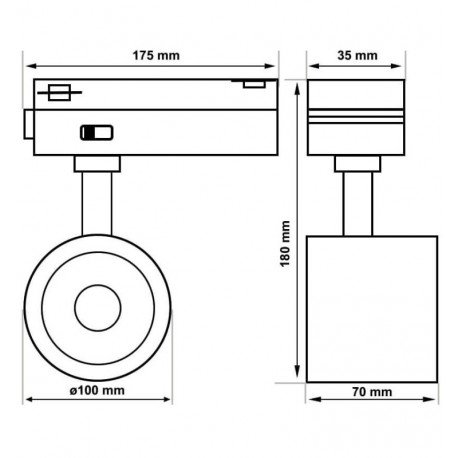

Constructed from robust aluminum and PMMA materials, the ODENSE track light features a durable and elegant housing that ensures lasting performance. It measures 100 mm by 175 mm by 180 mm, making it compact enough for versatile installation in various environments.

The fixture is protected to IP20 standards against ingress of solid objects, and it carries an IK10 rating for impact resistance, providing reliable physical protection in typical indoor settings.

Optical and Electrical Characteristics

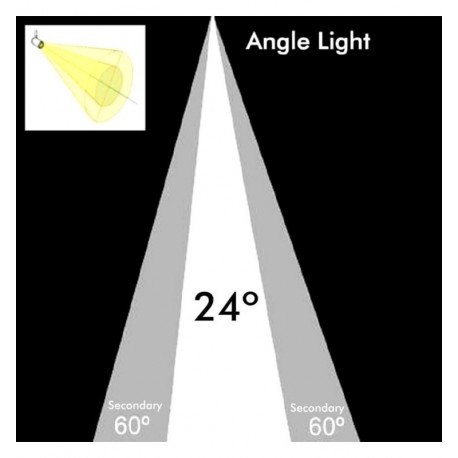

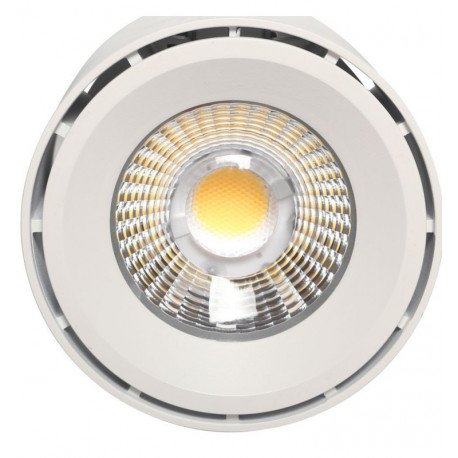

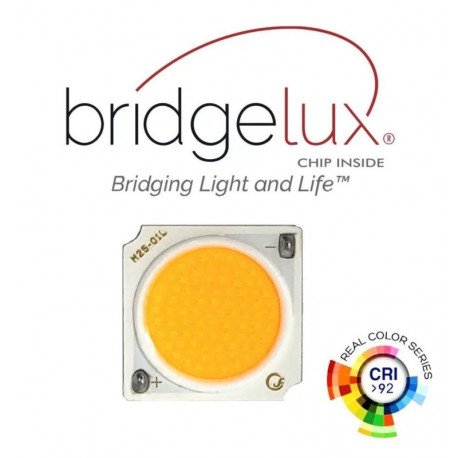

The unit employs a COB Bridgelux Chip 2240 DS-C30 LED source, offering high luminous efficacy of 130 lm/W for efficient light output. The fixed 24° beam angle focuses light precisely, enhancing visual comfort while maintaining glare control (UGR13).

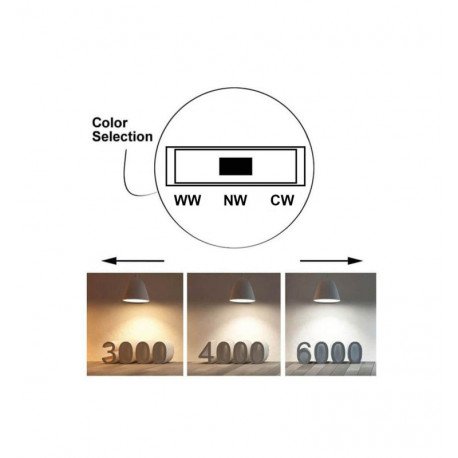

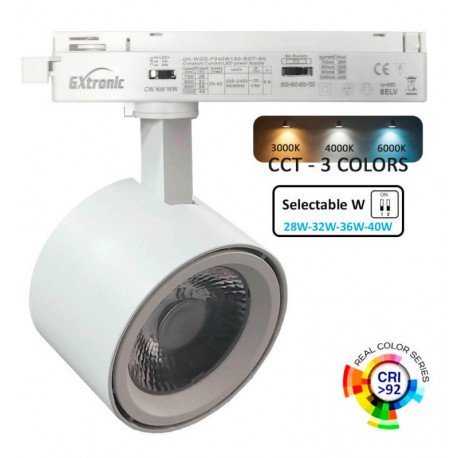

Color temperatures available are 3000K, 4000K, and 6000K, allowing the user to select warm, neutral, or cool white lighting according to space requirements. A high CRI of 92 ensures excellent color rendering, vital for applications where color accuracy is critical.

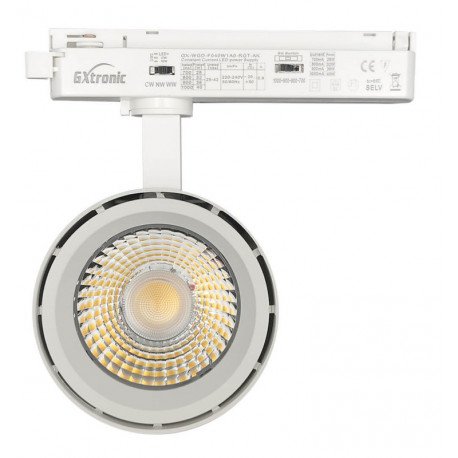

The integrated GXTronic driver supports operation at common mains frequencies of 50 or 60 Hz and boasts a power factor of 0.95, promoting efficient energy use and reliable performance with rapid startup times of 0.2 seconds. It includes a rated endurance of 100,000 switching cycles, enhancing product longevity.

Installation and Maintenance

Designed exclusively for single-phase track mounting, this light facilitates easy installation and versatile positioning within commercial or residential interiors.

The product includes a 5-year warranty covering the driver and luminaire, reflecting confidence in its durability and sustained operation under normal conditions.

Frequently Asked Questions

What color temperature options are available for this track light?

The LED track light offers selectable color temperatures of 3000K, 4000K, and 6000K to suit different lighting atmospheres and applications.

What does the IK10 impact rating mean?

An IK10 rating indicates high resistance to physical impacts, helping protect the light fixture against potential damage from mechanical shocks typically encountered indoors.

Can this track light operate on both 50 Hz and 60 Hz power supplies?

Yes, the integrated driver supports mains frequencies of both 50 Hz and 60 Hz, making it suitable for use in various electrical systems worldwide.

Is the power adjustable between different wattages?

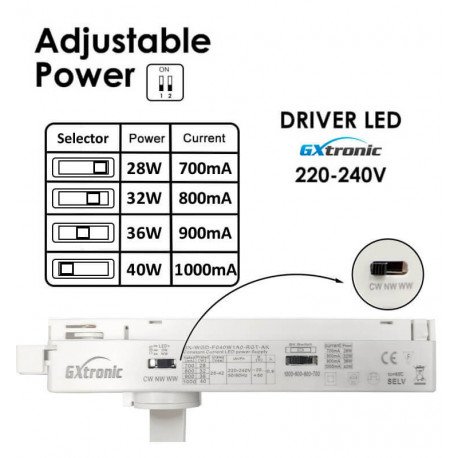

This model allows selection of operating power between 28W and 40W to tailor lighting intensity to the specific needs of the space.
