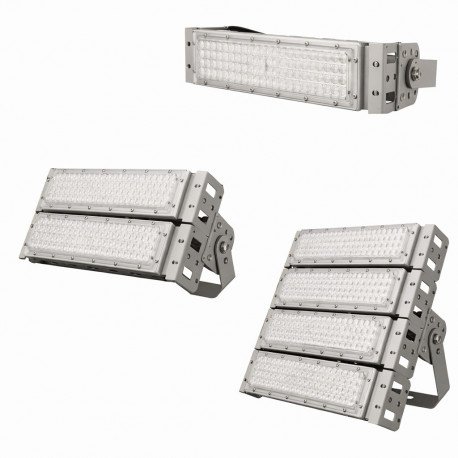

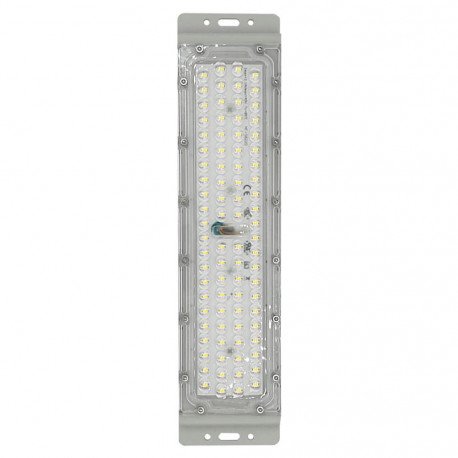

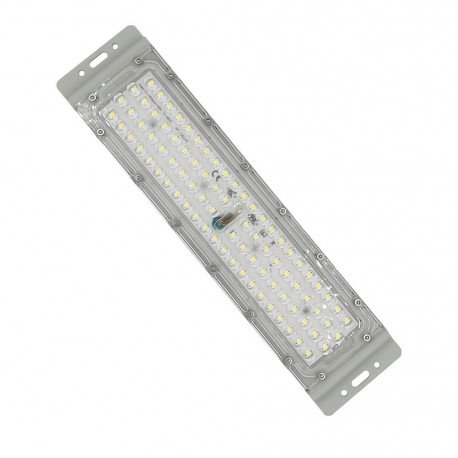

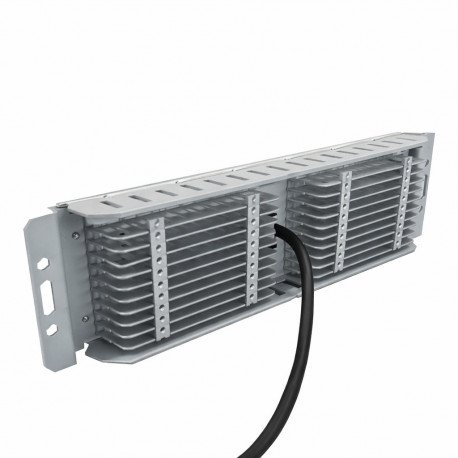

LED Floodlight 50W MAGNUM PRO SMD3030 Bridgelux 60° IP65
Certificates
CE - ROHS
Construction Material
Aluminum +PMMA

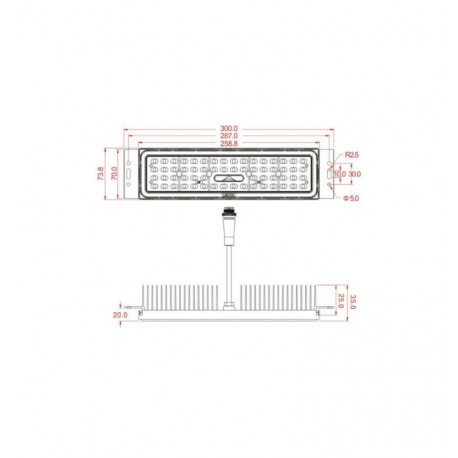

Dimensions (mm)
350mm x 75mm x 30mm
Beam Angle (º)
60º
New product

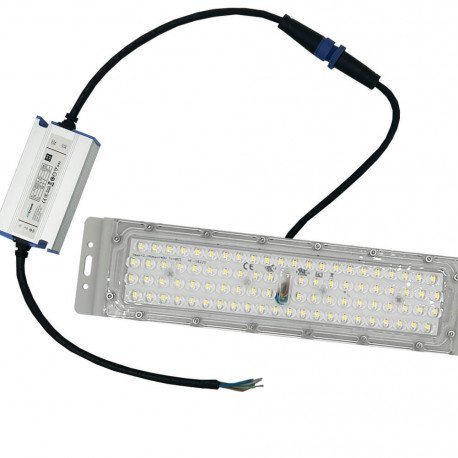

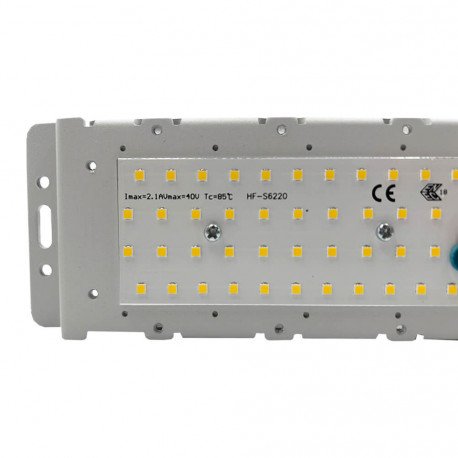

50W MAGNUM PRO LED optical module with 180 lm/W, symmetric 60° optics, and IP65 protection. 84 SMD3030 Bridgelux LEDs and GXtronic driver.
866 Items
Data sheet
| Certificates | CE - ROHS |
| IP Rating | IP65-Exterior |
| Construction Material | Aluminum +PMMA |
| Warranty years | 5 |
| Dimensions (mm) | 350mm x 75mm x 30mm |
| CRI - Color Rendering Index | +80 |
| Energy Class (2021-EU-2019/2015) | A++ |
| LED Diode Efficacy (Lm/W) | 180Lm/W |
| Estimated LED Diode Life (H) | 50.000 |
| Power Factor (PF) | 0,95 |
| Operating Frequency (Hz) | 50/60Hz |
| Temperature Range (ºC) | -15ºC ~ +70ºC |
| Switching Cycles | 100.000 |
| Start-Up Time (s) | 0,2s |
| Impact Protection (IK) | IK10 |
| Light Temperature | 3000K-4000K-5000K |
| Luminous Flux-Lm | 7500 Lm |

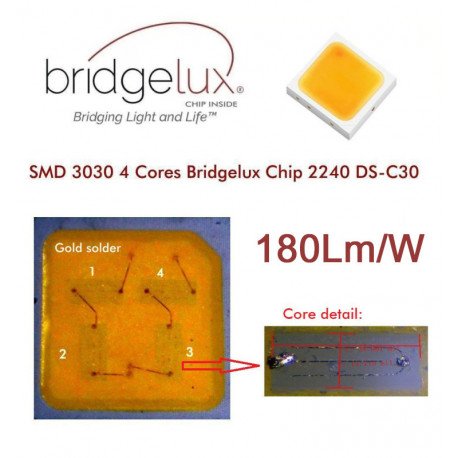

| LED Type | SMD 3030- (4Cores) BRIDGELUX CHIP 2240DS-C30 |

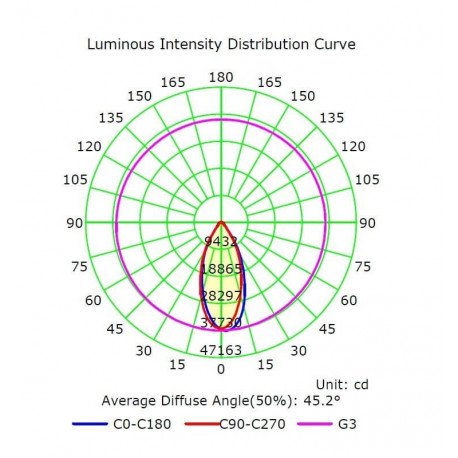

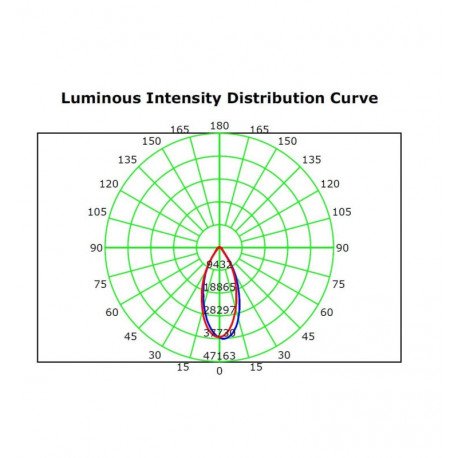

| Beam Angle (º) | 60º |
| Luminous Efficacy (Lm/W) | 150 Lm/W |
| Additional Information | Driver: 23-42 VDC 1300mA +-5% |

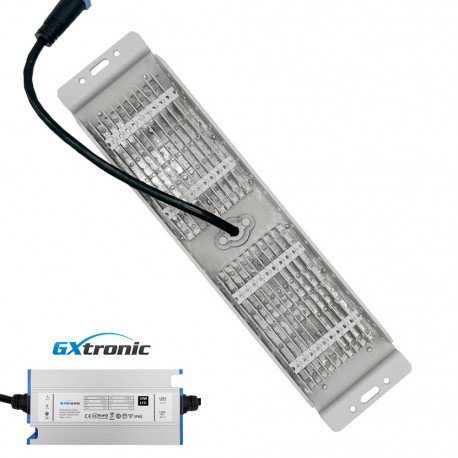

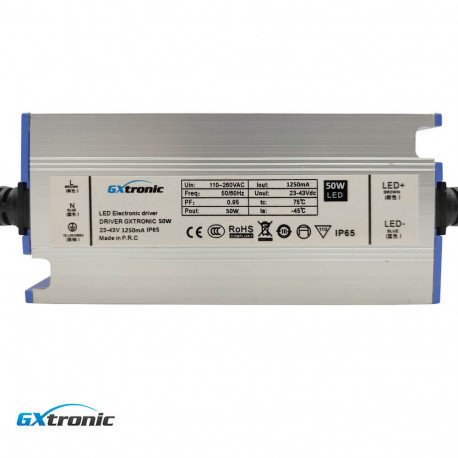

| Driver Included | Driver GXTronic - 5 Years |
More info

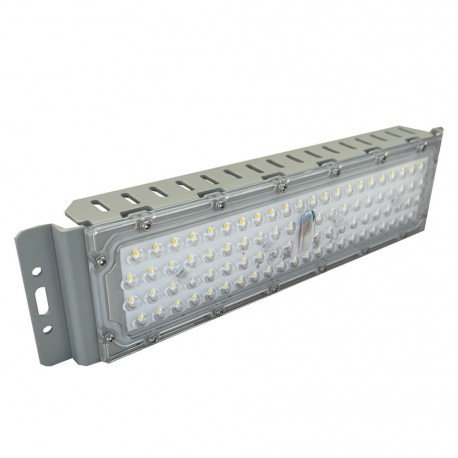

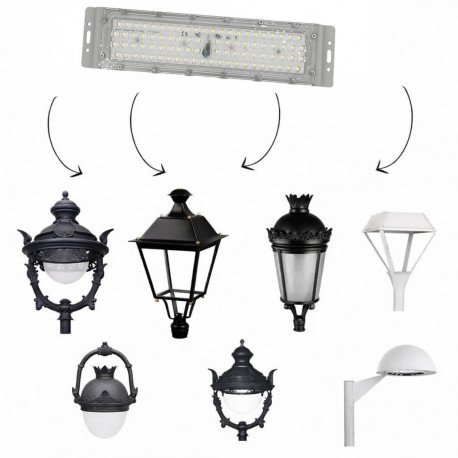

The 50W MAGNUM PRO LED optical module is an advanced professional lighting solution designed to replace traditional bulbs with a more efficient option that uses less power. It delivers up to 180 lm/W thanks to its latest-generation LED technology, providing powerful, uniform, high-quality illumination. It features 84 SMD3030 Bridgelux diodes, known for reliability and efficiency, along with a high-performance GXtronic driver that helps maintain electrical stability and supports a long service life. The symmetric 60° optics help achieve an even light distribution, while the IP65 protection rating makes it suitable for outdoor environments.
