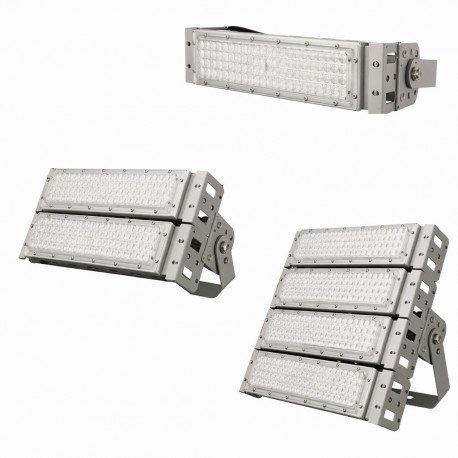

LED Floodlight 50W Outdoor IP65 25° Bridgelux
Certificates
CE - ROHS
Construction Material
Aluminum +PMMA
Dimensions (mm)
300mm x 75mm x 30mm
Beam Angle (º)
25º
New product

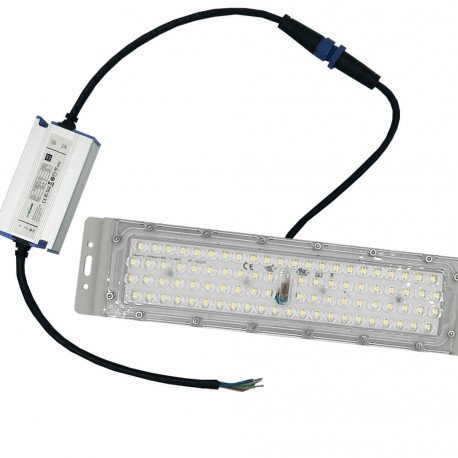

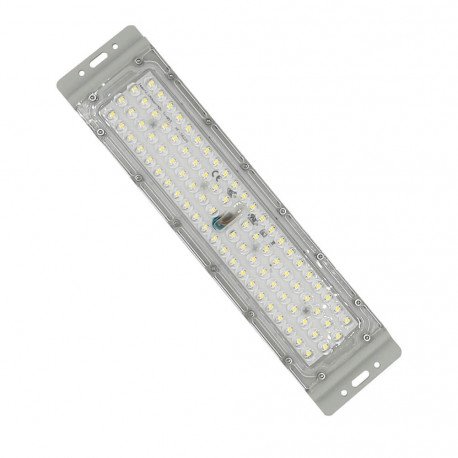

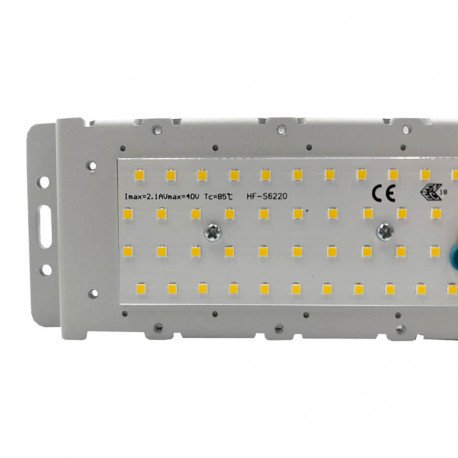

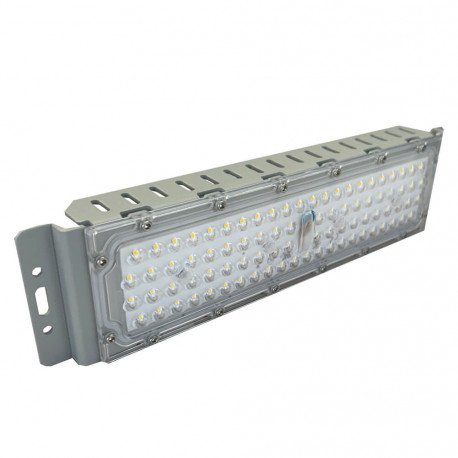

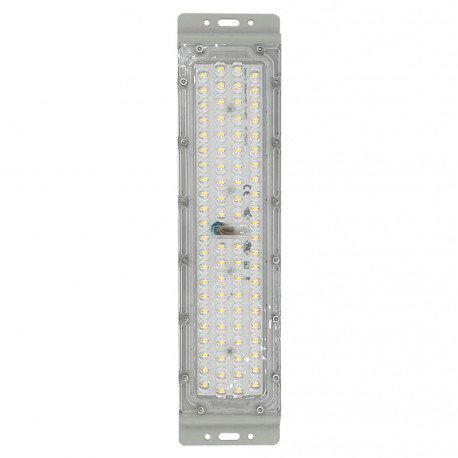

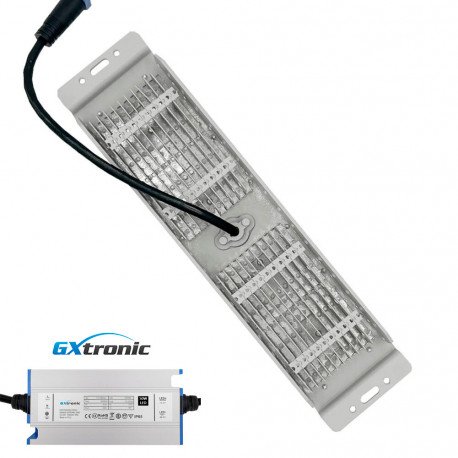

50W MAGNUM PRO LED module with 180 lm/W, symmetric 25° optic, and GXtronic driver. 84 SMD3030 Bridgelux LEDs, IP65 for outdoor use.
548 Items
Data sheet
| Certificates | CE - ROHS |
| IP Rating | IP65-Exterior |
| Construction Material | Aluminum +PMMA |
| Warranty years | 5 |

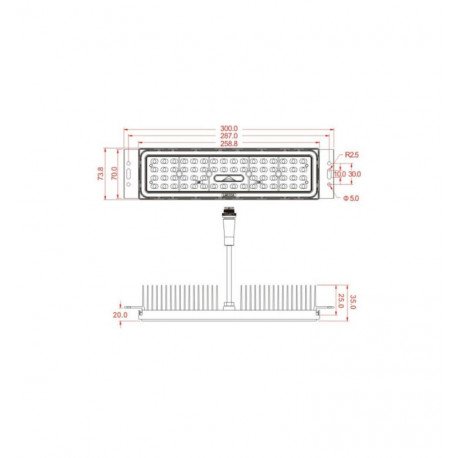

| Dimensions (mm) | 300mm x 75mm x 30mm |
| CRI - Color Rendering Index | +80 |
| Energy Class (2021-EU-2019/2015) | A++ |
| LED Diode Efficacy (Lm/W) | 180 Lm/W |
| Estimated LED Diode Life (H) | 50.000 |
| Power Factor (PF) | 0,95 |
| Operating Frequency (Hz) | 50/60Hz |
| Temperature Range (ºC) | -15ºC ~ +70ºC |
| Switching Cycles | 100.000 |
| Start-Up Time (s) | 0,2s |
| Impact Protection (IK) | IK10 |
| Light Temperature | 3000K-4000K-5000K |
| Luminous Flux-Lm | 7500 Lm |

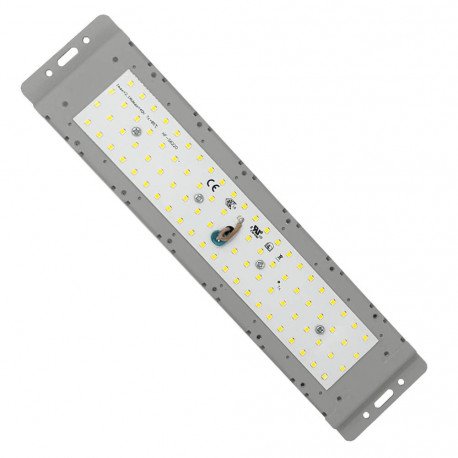

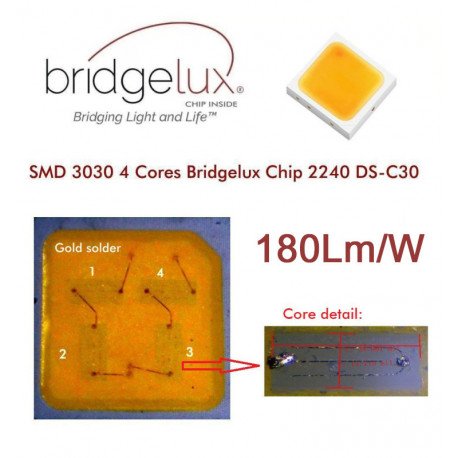

| LED Type | SMD 3030- (4Cores) BRIDGELUX CHIP 2240DS-C30 |

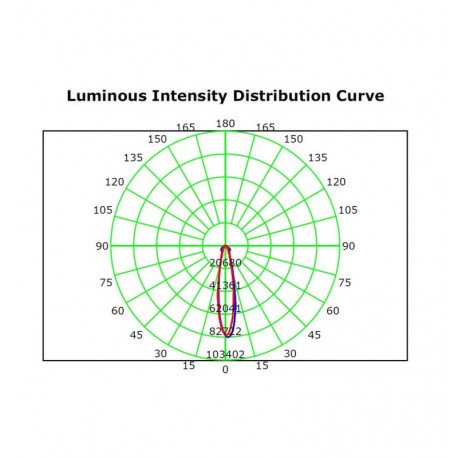

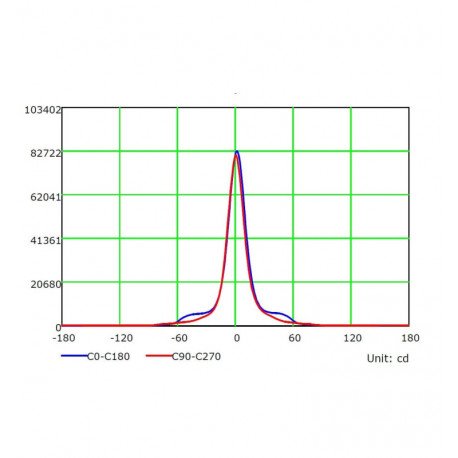

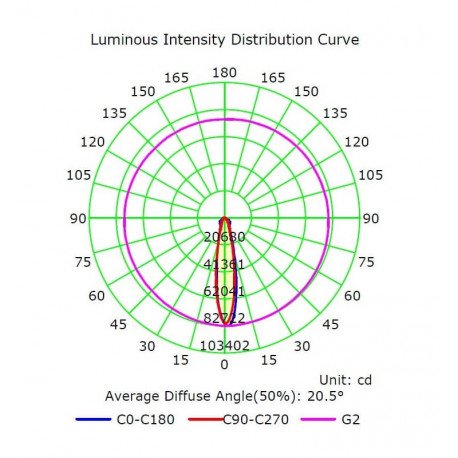

| Beam Angle (º) | 25º |
| Luminous Efficacy (Lm/W) | 150 Lm/W |
| Additional Information | Driver: 23-42 VDC 1300mA +-5% |

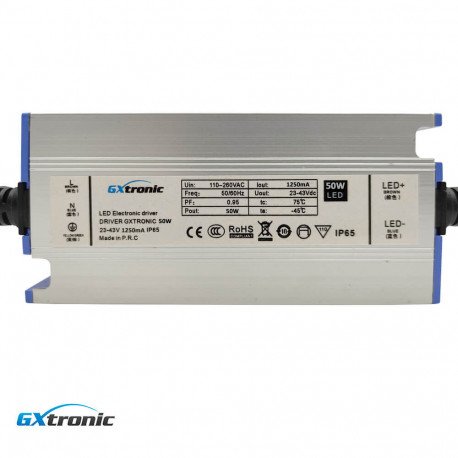

| Driver Included | Driver GXTronic - 5 Years |
More info

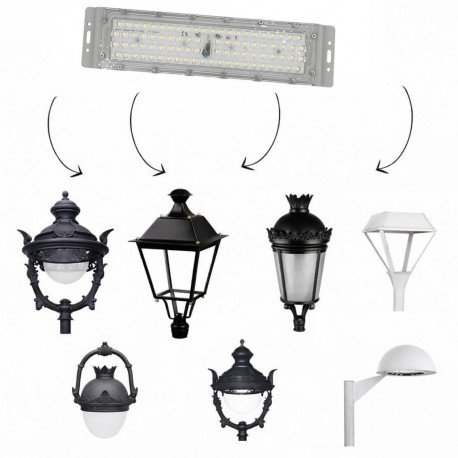

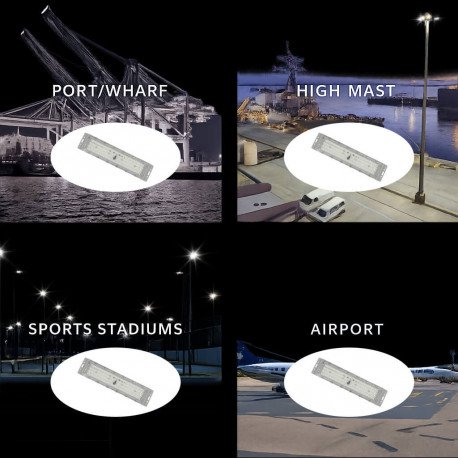

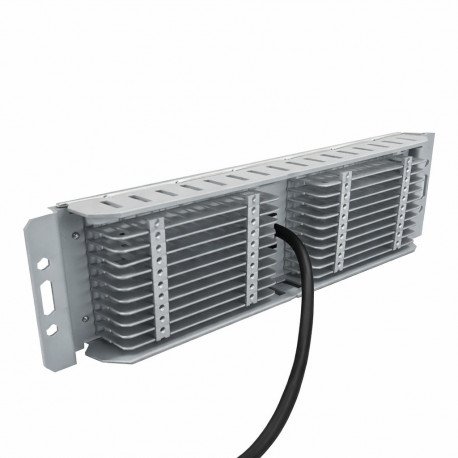

The 50W MAGNUM PRO SMD3030 Bridgelux LED module is a professional solution for outdoor lighting thanks to its IP65 protection. It delivers up to 180 lm/W and a symmetric 25° optic that helps achieve uniform light distribution. Featuring 84 SMD3030 Bridgelux LEDs and a high-performance GXtronic driver, it provides electrical stability and a long service life for continuous operation. Ideal as a replacement for traditional systems with higher energy consumption.
