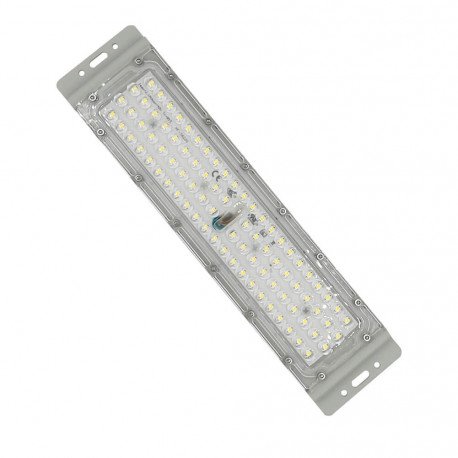

LED High Bay 50W Outdoor Module Asymmetric Optics 136x78 IP65
Certificates
CE - ROHS
Construction Material
Aluminum +PMMA
Dimensions (mm)
300mm x 75mm x 30mm
Beam Angle (º)
136º x 78º
New product

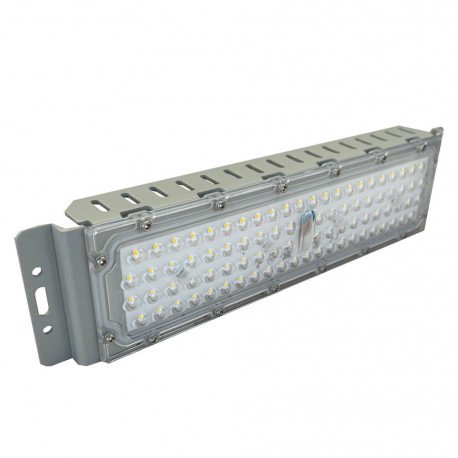

MAGNUM PRO 50W LED optical module with asymmetric optics 136°x78° and IP65 protection. 180 lm/W efficiency with SMD3030 Bridgelux LEDs and GXtronic driver.
714 Items
Data sheet
| Certificates | CE - ROHS |
| IP Rating | IP65-Exterior |
| Construction Material | Aluminum +PMMA |
| Warranty years | 5 |

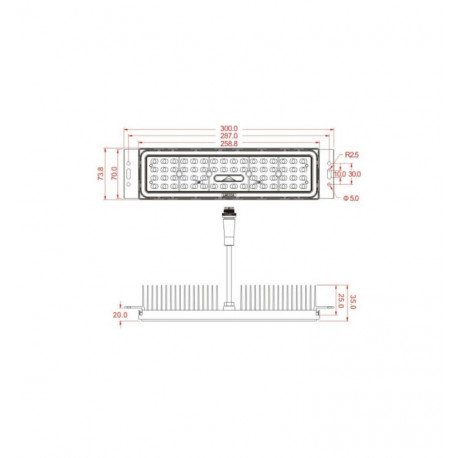

| Dimensions (mm) | 300mm x 75mm x 30mm |
| CRI - Color Rendering Index | +80 |
| Energy Class (2021-EU-2019/2015) | A+ |
| LED Diode Efficacy (Lm/W) | 180 Lm/W |
| Estimated LED Diode Life (H) | 50.000 |
| Power Factor (PF) | 0,95 |
| Operating Frequency (Hz) | 50/60Hz |
| Temperature Range (ºC) | -15ºC ~ +70ºC |
| Switching Cycles | 100.000 |
| Start-Up Time (s) | 0,2s |
| Impact Protection (IK) | IK10 |
| Light Temperature | 3000K-4000K-5000K |
| Luminous Flux-Lm | 7500 Lm |

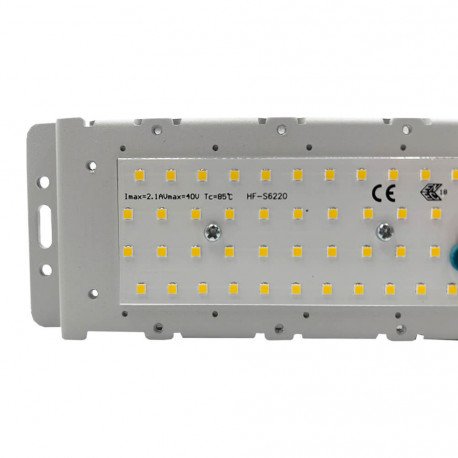

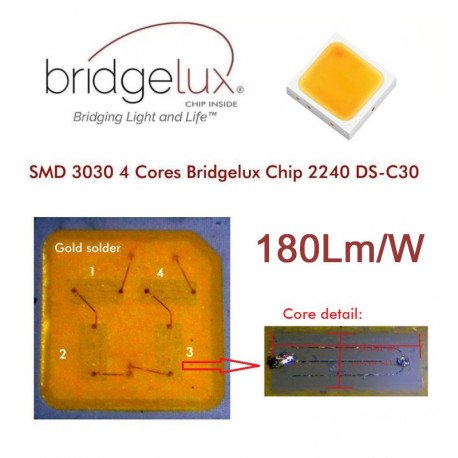

| LED Type | SMD 3030- (4Cores) BRIDGELUX CHIP 2240DS-C30 |

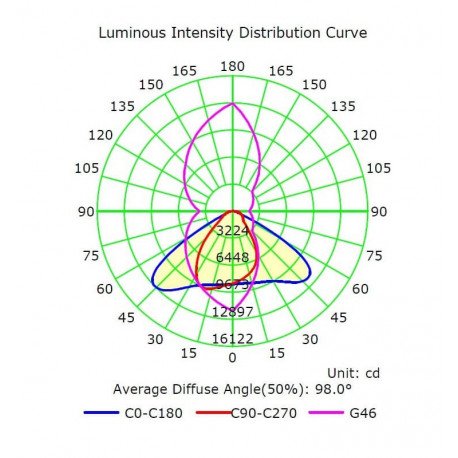

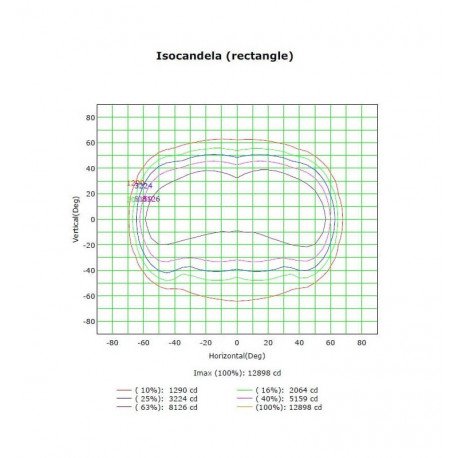

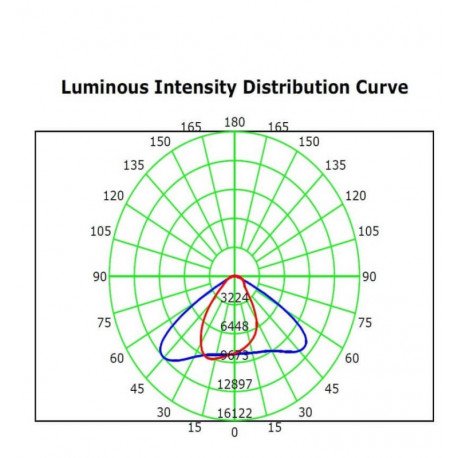

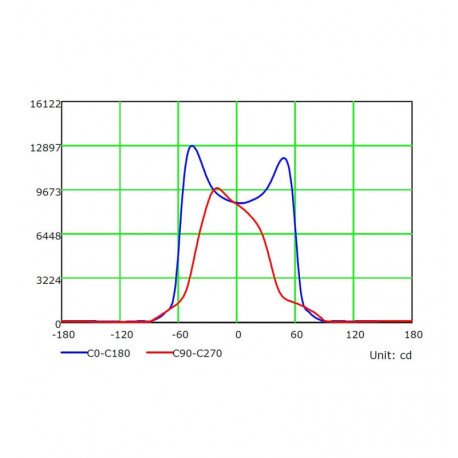

| Beam Angle (º) | 136º x 78º |
| Luminous Efficacy (Lm/W) | 150 Lm/W |
| Additional Information | Driver: 23-42 VDC 1300mA +-5% |

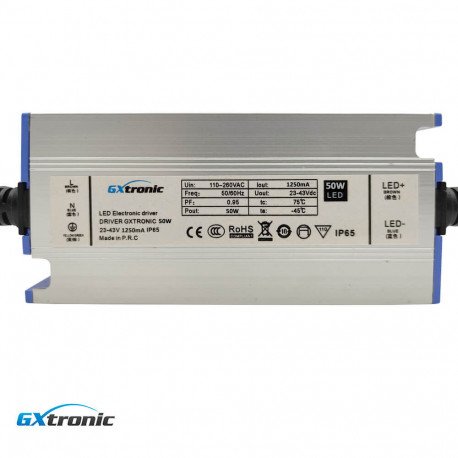

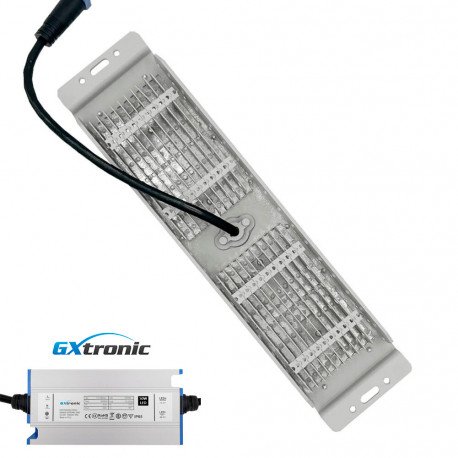

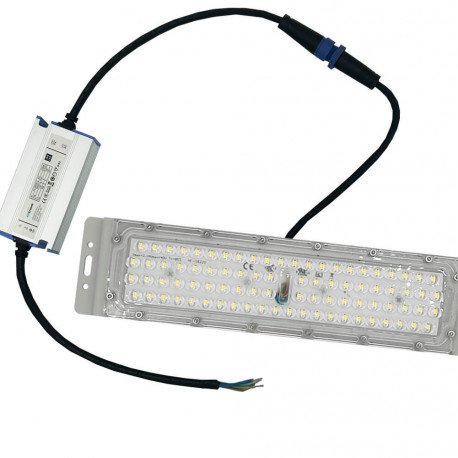

| Driver Included | Driver GXTronic - 5 Years |
More info

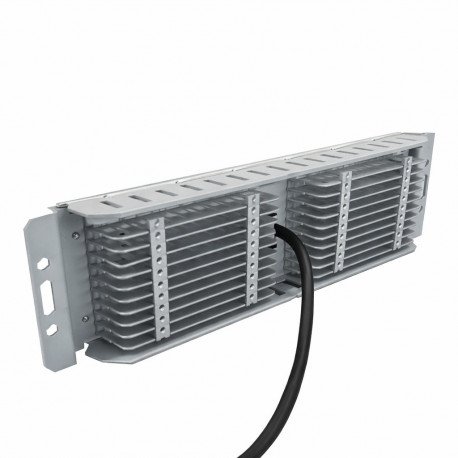

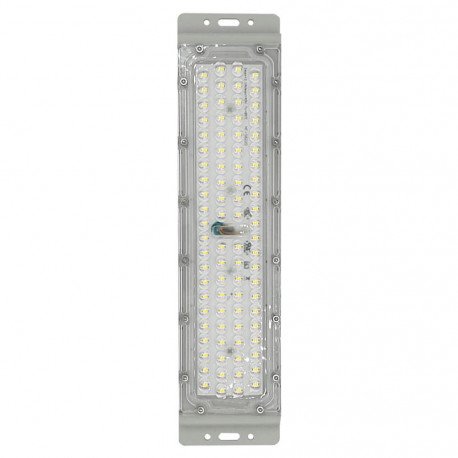

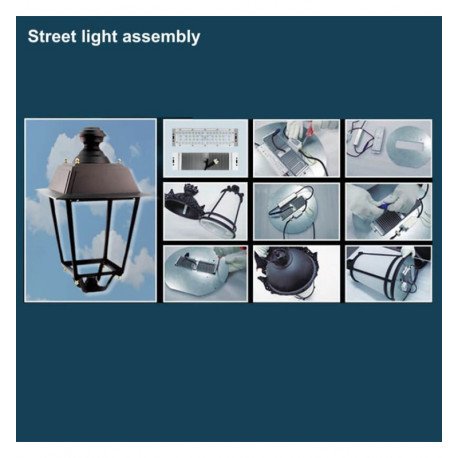

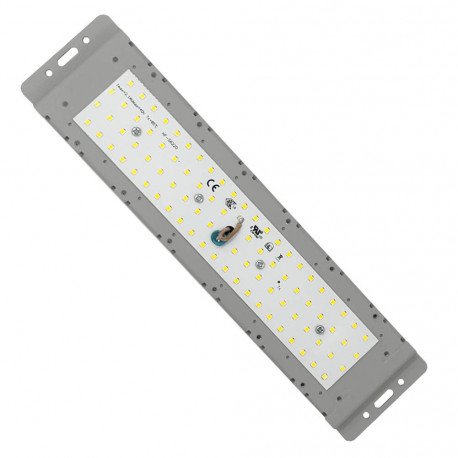

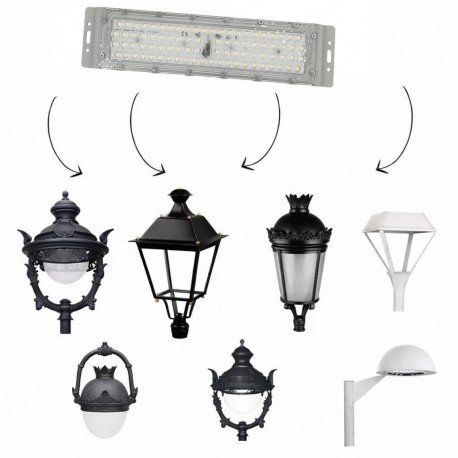

The 50W MAGNUM PRO LED optical module is a professional solution for outdoor lighting, designed to replace older traditional bulbs and help reduce energy consumption. Using advanced LED technology, it delivers up to 180 lm/W for powerful, uniform, high-quality illumination. It features 84 SMD3030 Bridgelux diodes known for reliability and efficiency, along with a high-performance GXtronic driver that helps support long service life and electrical stability. In addition, its asymmetric optics (136°x78°) provide light distribution suited to applications where beam control is required. With an IP65 protection rating for outdoor use.
