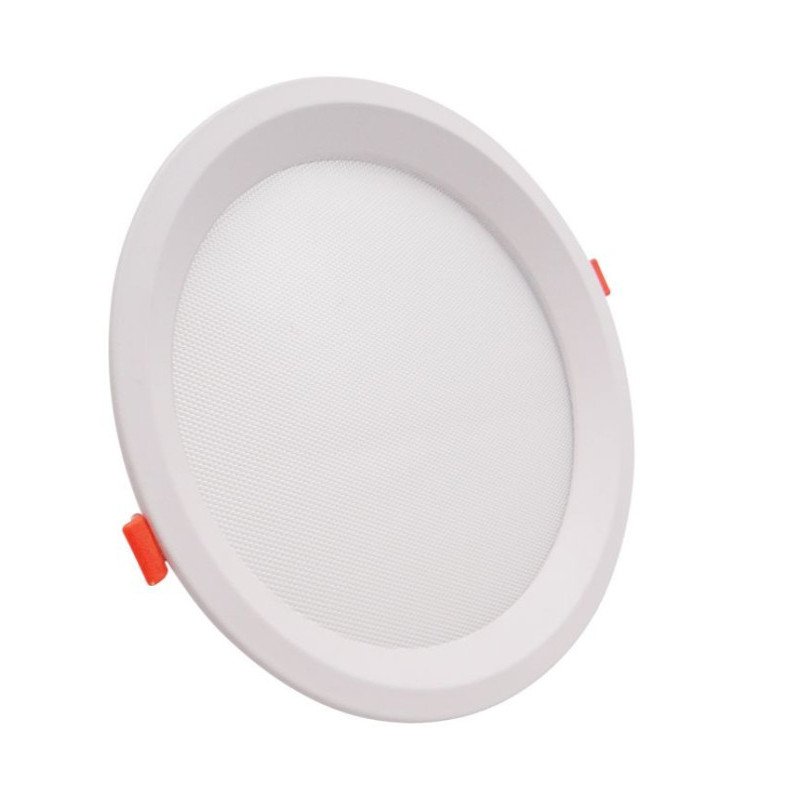

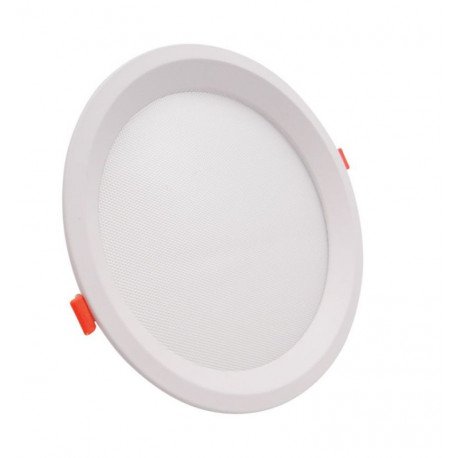

LED Downlight 16W Circular CCT UGR17

LED-00241

Certificates CE - ROHS
Construction Material Aluminum +PC
Dimensions (mm) Ø170mm * H40mm
Rated Power 16w
Beam Angle (º) 120º
Ceiling Cut (mm) Ø 150mm

New product

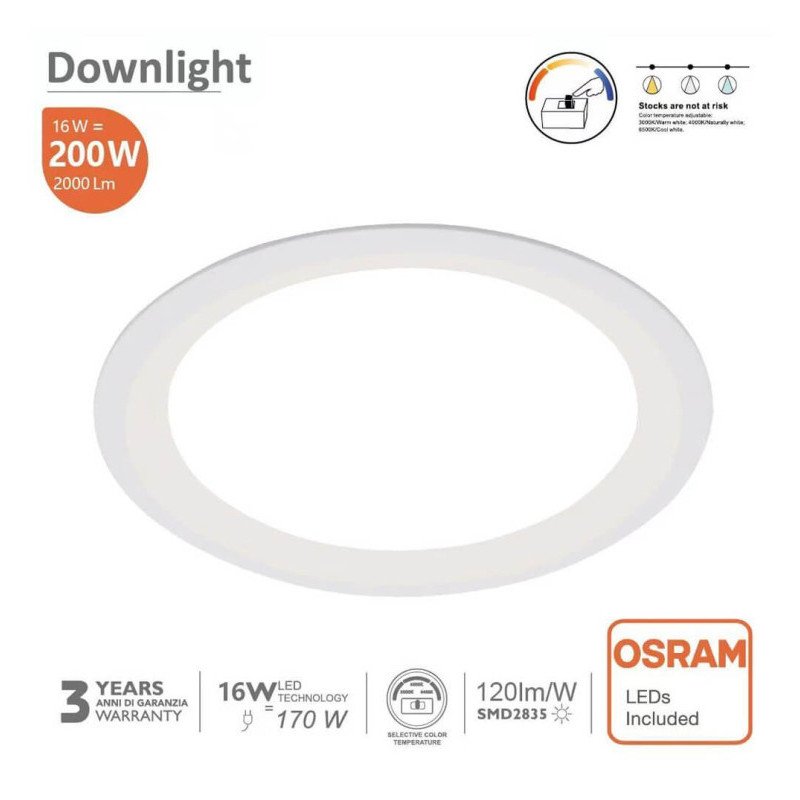

The LED Downlight 16W Circular CCT UGR17 is a recessed lighting solution offering 1600 lm with an efficacy of 100 lm/W. It features an aluminum and polycarbonate construction, an anti-glare UGR17 rating, and selectable color temperatures for versatile indoor use. Designed with OSRAM SMD 2835 chips and a 120° beam angle.

2299 Items

Order now and receive it The day after tomorrow

11,16 € tax incl.

Métodos de pago

More info

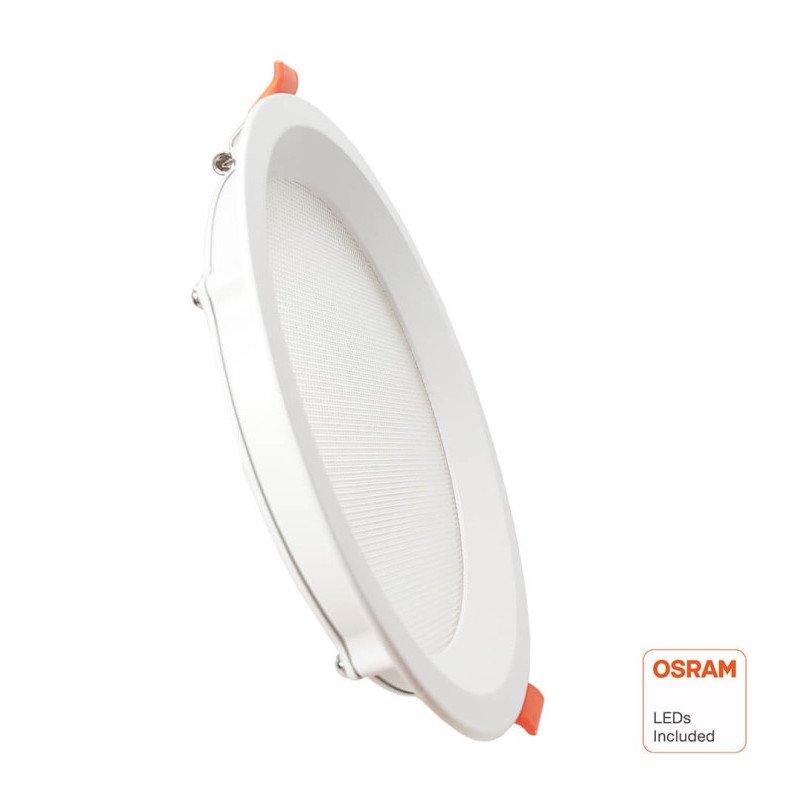

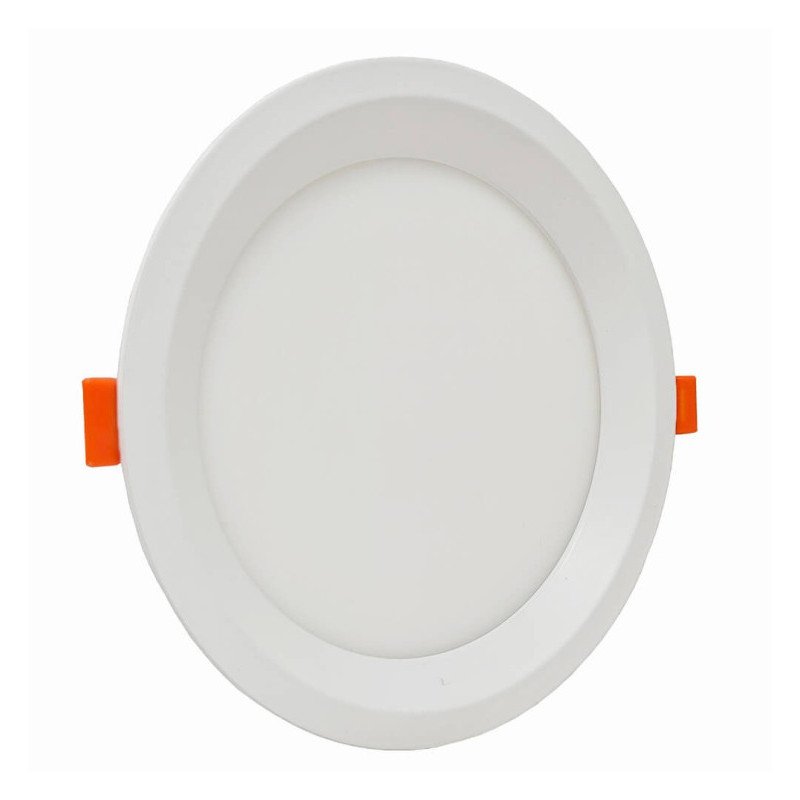

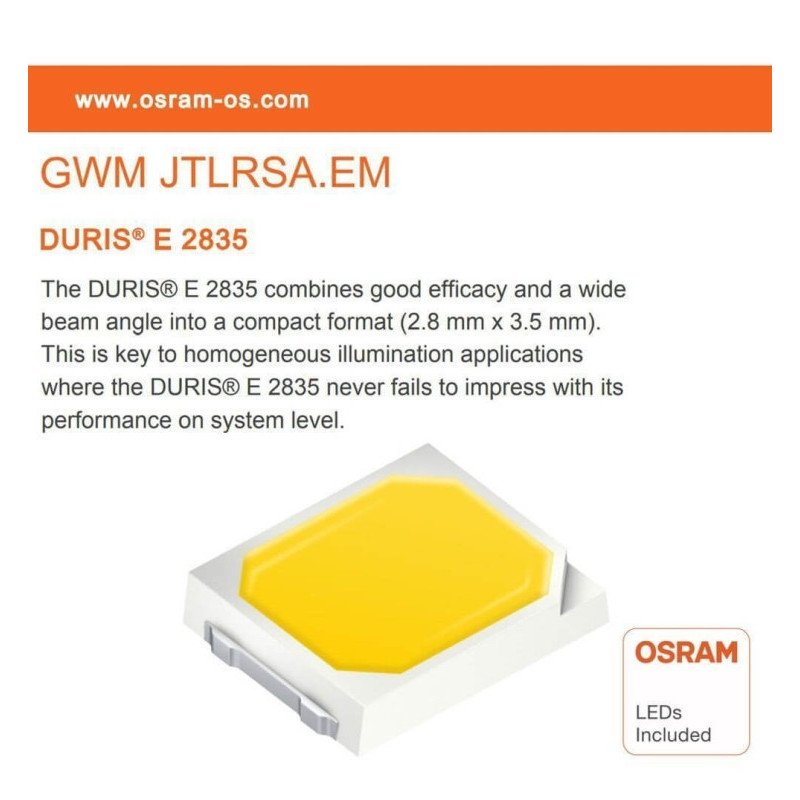

Recessed circular LED downlight, 16W, designed for precise, customizable indoor lighting. Features OSRAM CHIP DURIS E 2835 SMD technology for reliable performance. Includes a CCT temperature selector so you can choose between cool white, neutral white, or warm white depending on the room. With UGR17, it helps minimize glare and improves visual comfort in everyday use. The 120° opening angle provides a wide light distribution, making it suitable for replacing traditional spotlights with energy savings of over 80%. Ideal for businesses and homes looking for tailored lighting with high performance and easy color adaptation.

Durability and Reliability

Constructed with a robust combination of aluminum and PC materials, this downlight offers durability for long-term indoor installation. Its IP20 ingress protection suits dry indoor environments, making it well-suited for offices, retail, and residential spaces where moisture is not a concern.

The product also supports extensive switching operations, rated for up to 100,000 cycles, ensuring longevity and consistent performance over time.

Efficient and Smooth Operation

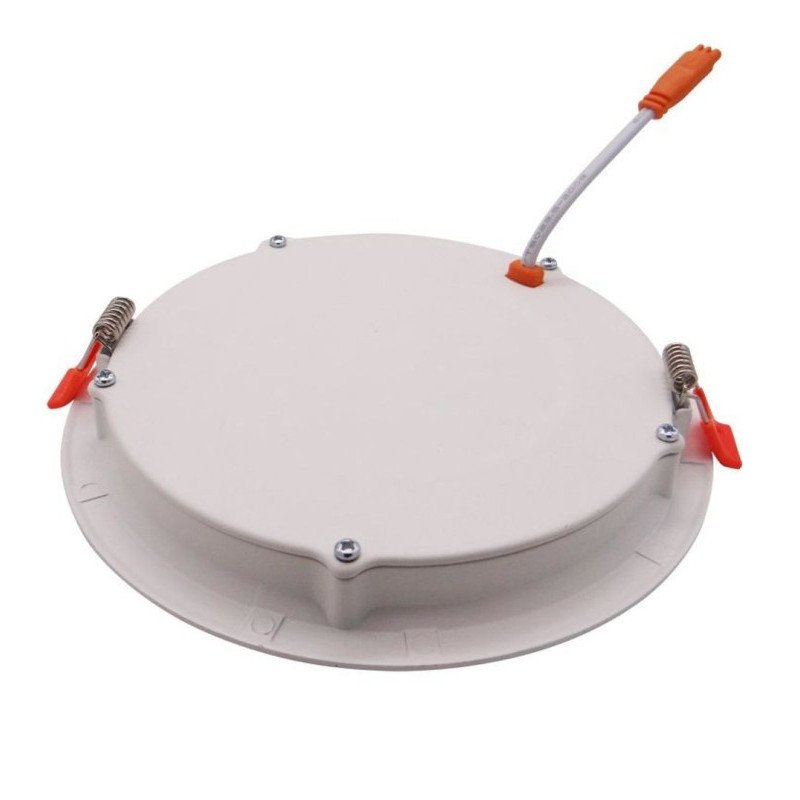

Equipped with an integrated driver, the downlight ensures stable power supply for consistent light output. It operates efficiently across 50 Hz and 60 Hz power grids, facilitating international use.

Startup time is remarkably fast at just 0.2 seconds, providing immediate illumination without waiting. Operating temperature ranges from -20°C to 55°C, allowing it to perform reliably under various indoor climate conditions.

Frequently Asked Questions

What does UGR17 mean for this downlight?

UGR17 is a Unified Glare Rating indicating low glare emission, which improves visual comfort by minimizing eye strain under the light.

Can the color temperature be changed after installation?

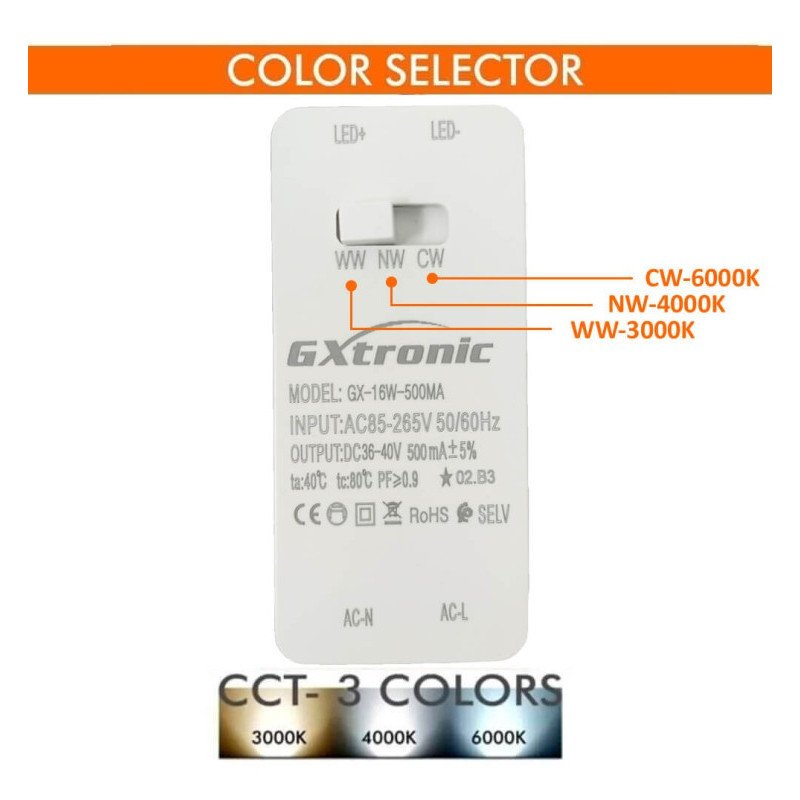

The downlight includes a CCT selector, allowing you to choose between cool white, neutral white, and warm white during installation or maintenance.

Is this downlight suitable for damp locations?

No, with an IP20 rating, it is suitable only for dry indoor environments and not recommended for damp or wet areas.

View technical specifications Hide technical specifications
Certificates CE - ROHS
IP Rating IP20
Construction Material Aluminum +PC
Warranty years 3

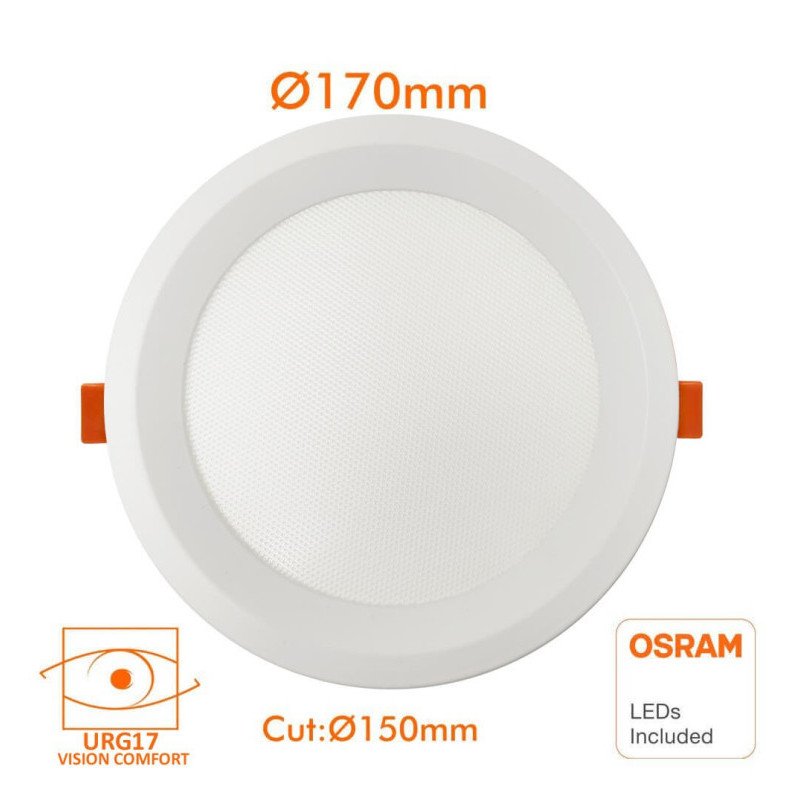

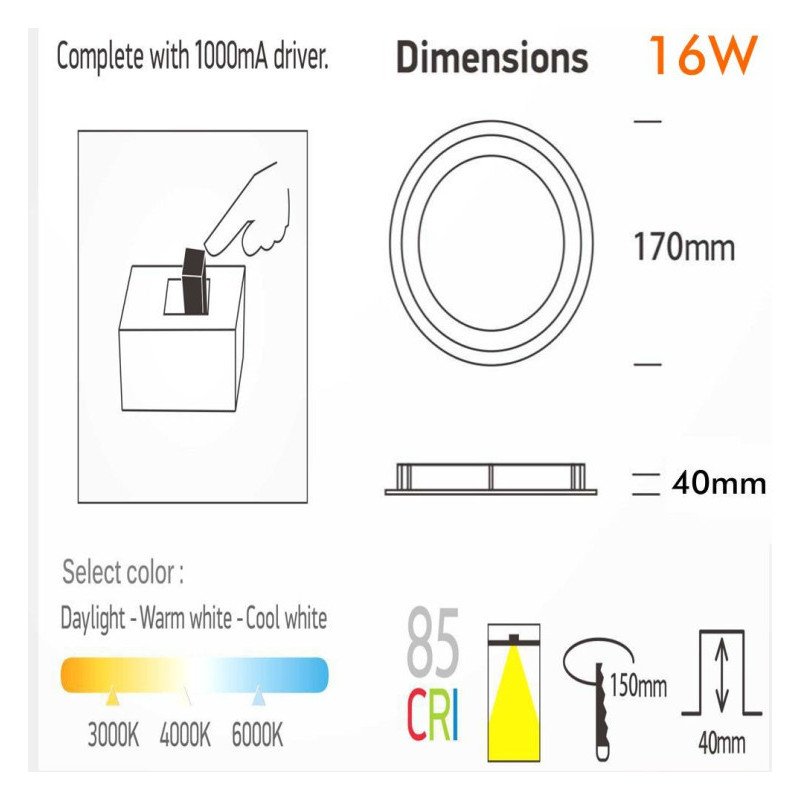

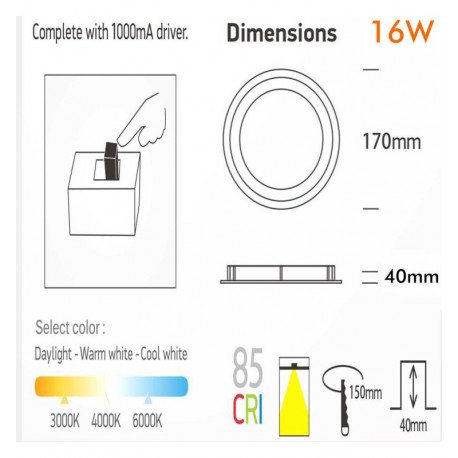

Dimensions (mm) Ø170mm * H40mm
Rated Power 16w
Rated Voltage 220V-240V AC
CRI - Color Rendering Index 82
Energy Class (2021-EU-2019/2015) A+
LED Diode Efficacy (Lm/W) 120 Lm/W
Estimated LED Diode Life (H) 40.000
Operating Frequency (Hz) 50/60Hz
Temperature Range (ºC) -20°C ~ +55°C
Switching Cycles 100.000
Start-Up Time (s) 0,2s
Energy Class (2023 - EU-2019/2015) E
Light Temperature COLOR SELECTABLE: 3000K-4000K-6000K
Luminous Flux-Lm 1600
LED Type SMD 2835 OSRAM CHIP
Beam Angle (º) 120º
Luminous Efficacy (Lm/W) 100Lm/W
Driver Included SI
Ceiling Cut (mm) Ø 150mm
Glare Index (UGR) 17
