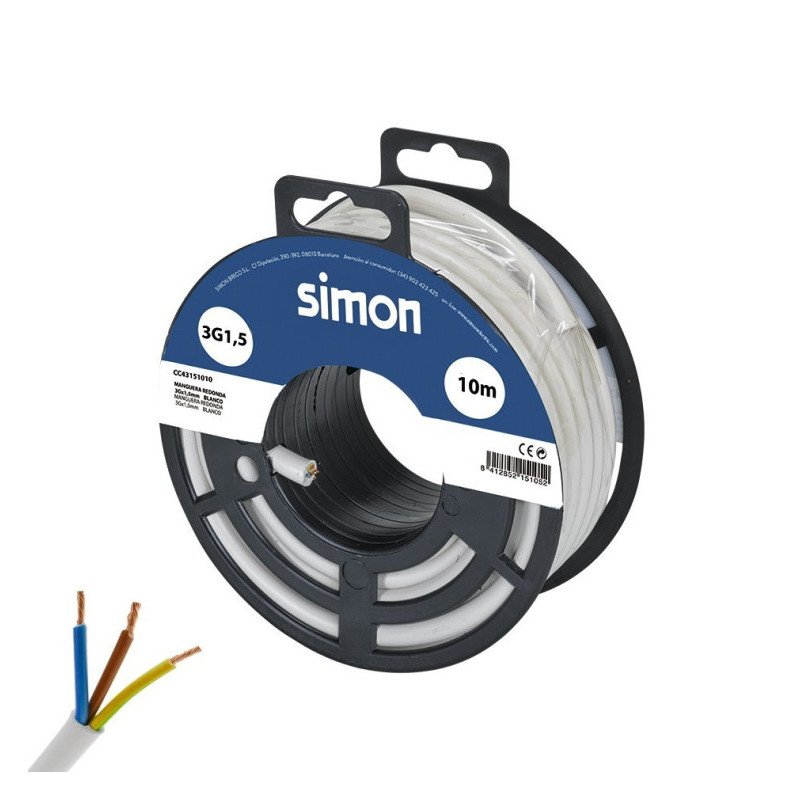

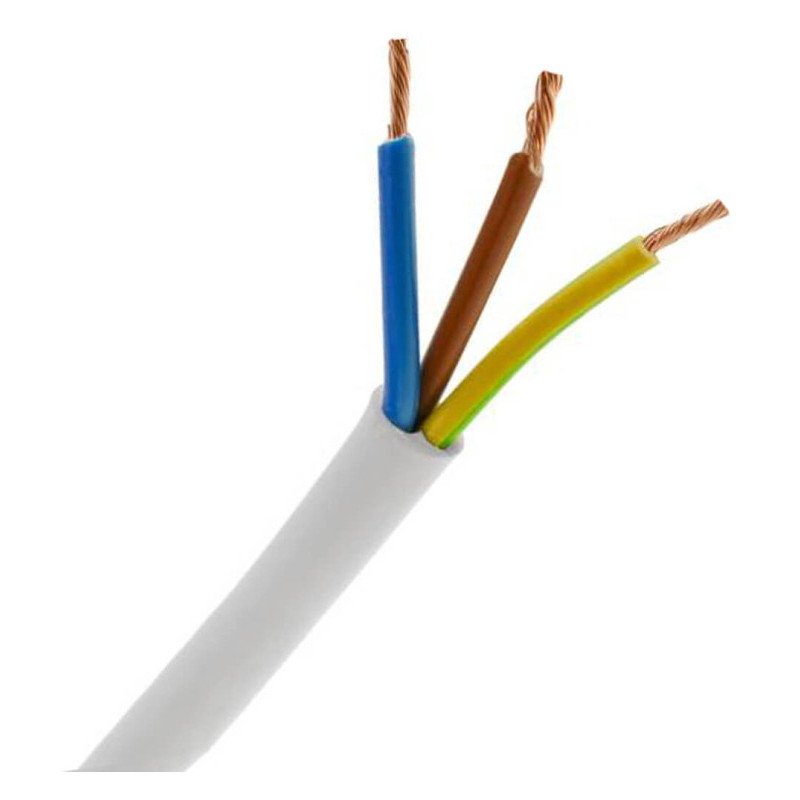

3-Core Electrical Cable 1.5mm H07V-K (H07V-K) - PVC Insulated

Flexible 3-core H07V-K electrical cable with Class 5 finely stranded tinned copper conductor (per UNE EN 60228) and PVC insulation type TI 1 (per UNE EN 50363-3). Designed for installation in conduits on surfaces or concealed, in similar closed systems, and for fixed or protected luminaire mounting. Rated voltage 450/750V, test voltage 2,500V, and operating temperature from -15 to 70°C. Easy to install thanks to its very low-friction insulation and high flexibility.

Material and Design Features

This electrical cable features a conductor made of finely stranded tinned copper (Class 5), enhancing its flexibility and resistance to corrosion. The PVC insulation provides protection and durability, contributing to the cable's suitability for various installation environments.

Installation Versatility

Designed primarily for fixed or protected luminaire mounting, the cable can be installed in conduits on surfaces or concealed within closed systems, enabling versatile applications in lighting installations. Its low-friction insulation facilitates smooth pulling and handling during installation.

Electrical and Thermal Specifications

With a rated voltage of 450/750V and a test voltage capacity of 2,500V, this cable meets safety requirements for lighting circuit installations. It supports operation in environments ranging from -15°C up to 70°C, ensuring reliable performance across various temperature conditions.

Frequently Asked Questions

What colors are available for this cable?

This 3-core H07V-K cable is available in white and black color options to suit different aesthetic or installation requirements.

Is this cable suitable for outdoor use?

The cable is designed for fixed or protected luminaire mounting, typically installed in conduits or closed systems. While it supports a broad temperature range, additional protection may be necessary for direct outdoor exposure.

What standards does this cable comply with?

The cable uses Class 5 finely stranded tinned copper conductors according to the UNE EN 60228 standard and PVC insulation type TI 1 per UNE EN 50363-3, ensuring quality and safety compliance.
